Terminal TPV IMIN Modelo 1/1 07 1S 015 — terminal de caja compacto

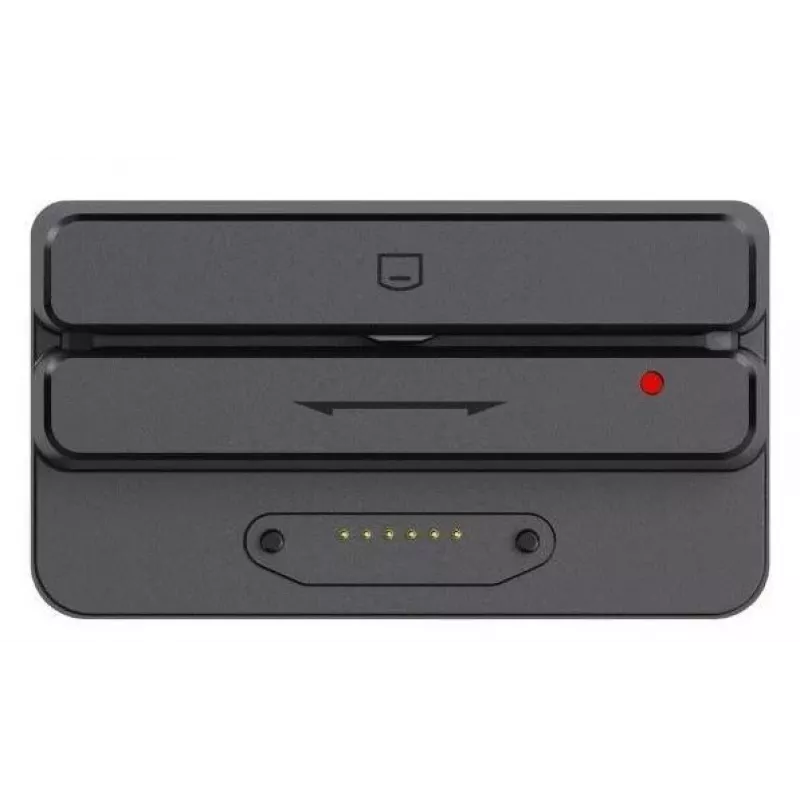

MSR/Pogo pin module — magnetic stripe reader for the IMIN POS terminal (MPN 1 07 1S 015). The module reads magnetic cards using MSR technology and connects via pogo pins. This component is intended to integrate with IMIN point-of-sale hardware; it does not itself process payments or act as a standalone payment terminal.

Advantages

The MSR module offers compact size and lightweight construction for easy integration into retail and hospitality POS systems. Its pogo-pin interface provides a secure, low-profile connection with compatible IMIN terminals. The reader is a dedicated magnetic card sensor, designed for reliable swipe reading of standard magnetic stripe cards.

Suitable for

• Retail checkout terminals requiring magnetic stripe reading
• Hospitality point-of-sale systems (restaurants, bars, hotels)
• Integration into IMIN POS hardware platforms

Key specifications

• Model: 1-07-1S-015 (MPN 1 07 1S 015)
• Product net weight: 0.2 kg
• Unit calculated weight (packaged): 0.5 kg
• Unit calculated volume: 0.00693 m³
• Unit box dimensions (m): 0.104 L × 0.083 W × 0.049 H
• CnCode: 85176200

How to use

Install the MSR/Pogo pin module into a compatible IMIN POS terminal according to the terminal manufacturer’s installation instructions. Align the pogo pins with the terminal connector and secure the module in place. Use the POS system software to enable and configure magnetic stripe reading; perform test reads to verify correct operation. This module functions solely as a card reader and requires host terminal integration to record transactions.

Recommendations

Use in dry, indoor retail or hospitality environments. Clean magnetic stripe cards regularly and avoid excessive force when swiping to prolong reader life. Ensure firmware and POS software are kept up to date for compatibility with the IMIN terminal.
