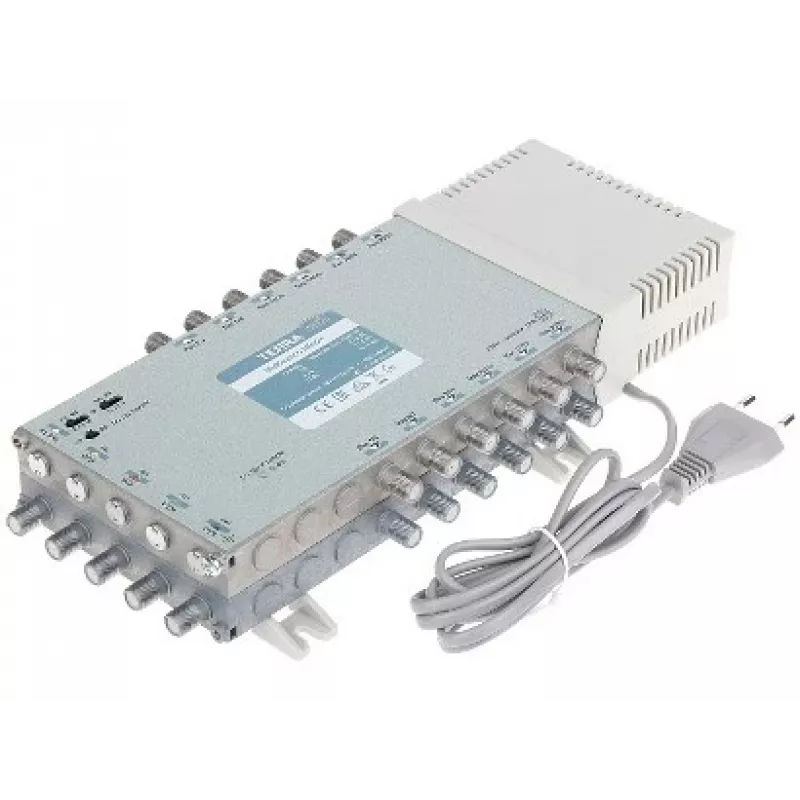

TERRA MULTISWITCH MR-524 5 entradas / 24 salidas multiswitch de FI satélite y TV terrestre

The TERRA MULTISWITCH MR-524 is a high-performance multiswitch designed for distributing satellite IF and terrestrial TV signals to up to 24 subscribers. With 5 inputs (4 satellite IF, 1 terrestrial TV) and 24 outputs, it is ideal for multi-dwelling units, hotels, and commercial installations requiring reliable signal distribution. The unit features internal power supply, DiSEqC 2.0 control, and robust isolation between ports.

Advantages

Supports up to 24 subscribers with a single unit, reducing installation complexity and cost. High isolation (>30 dB) between SAT-SAT, SAT-TER, and output-output ensures minimal interference. Internal power supply simplifies installation and eliminates the need for external adapters. Compatible with DiSEqC 2.0 for advanced control.

Suitable for

• Multi-dwelling units (apartments, condos)
• Hotels and hospitality
• Commercial buildings
• Satellite TV distribution systems

Key specifications

• Type: Multiswitch
• Inputs: 5 (4x Satellite IF, 1x Terrestrial TV)
• Outputs: 24 (Subscriber)
• Satellite IF Frequency Range: 950 - 2150 MHz
• Terrestrial TV Frequency Range: 47 - 862 MHz
• Satellite IF Loss: 2 - 4 dB
• Terrestrial TV Loss: 15 - 20 dB
• Max Output Level (SAT): 100 dBµV
• Max Output Level (TER): 85 dBµV
• LNB Power Supply: 13V/18V, 0/22kHz
• Control Protocol: DiSEqC 2.0
• Isolation: >30 dB (SAT-SAT, SAT-TER, Output-Output)
• Power Supply: Internal, 230V AC
• Power Consumption: 10 W (Multiswitch only)
• Connector Type: F-type

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. The multiswitch is designed for indoor use only. For large installations, consider using additional amplifiers if signal loss is a concern.
