TerraMaster D6-320 unidad de disco de sobremesa negra 6 unidades HDD SSD

D6-320
6-bay USB 3.2 Gen2 10Gbps
External Hard Disk Enclosure


High speed

With adoption of the USB3.2 Gen2 protocol, D6-320 provides a 10Gbps data transmission bandwidth, with the actual read/write speed up to 1,016MB/s when 6 hard drives are installed (WD Red 8TB x 6 simultaneously read/write); with only one hard disk installed, the read speed could reach 510MB/s (WD Red 1TB SSD x 1).

Super-large Storage Space

D6-320 supports up to 6 hard drives and a maximum drive capacity of 22TB (the compatibility with larger hard drives not verified yet), providing users with a storage space up to 132TB (22TB x 6). Remark: D6-320 does not have the function of array, and only supports single-disk working mode. To create an array, you need to use a third-party soft array management tool.

Compatible with hard disks in different kinds

D6-320 is compatible with various hard disks, such as 3.5-inch and 2.5-inch SATA hard disks, and 2.5-inch SATA SSD. Remark: using incompatible hard disk may cause your device disconnected, with low speed and failure in hard disk recognition. Before you purchase, please be sure to check the compatibility list of TerraMaster hard disks.

Highly Compatible Interface

D6-320 is equipped with a USB Type-C interface and a USB typeC-type C cable (0.8 meter in length), and could be compatible with a variety of computer interfaces: USB 3.0/USB 3.1/USB 3.2/Thunderbolt 3/Thunderbolt 4 .

Hot Swap

D6-320 supports hot swapping. You can replace the hard disk when the device is powered on, making data transfer more convenient.

Expansion of NAS Storage Space

D6-320 can be connected to the USB interface of TerraMaster NAS after special adaptation and adjustment. Creating arrays and storage pools on D6-320 with TerraMaster TOS could expand the storage space of NAS. Remark: this function works only on TerraMaster NAS running TOS 5.1 or above.

Intelligent Disk Sleep

D6-320 supports the sleep function, which can follow the computer OS to sleep, effectively reducing the working duration and power consumption of the hard disk, and extending its service life.

Safer

To prevent equipment and hard disk from being damaged by use of an improper power supply, D6-320 adopts the power supply protection. In case of an improper power supply connected, the device will enable automatic protection to prevent itself and the hard disk from damage.

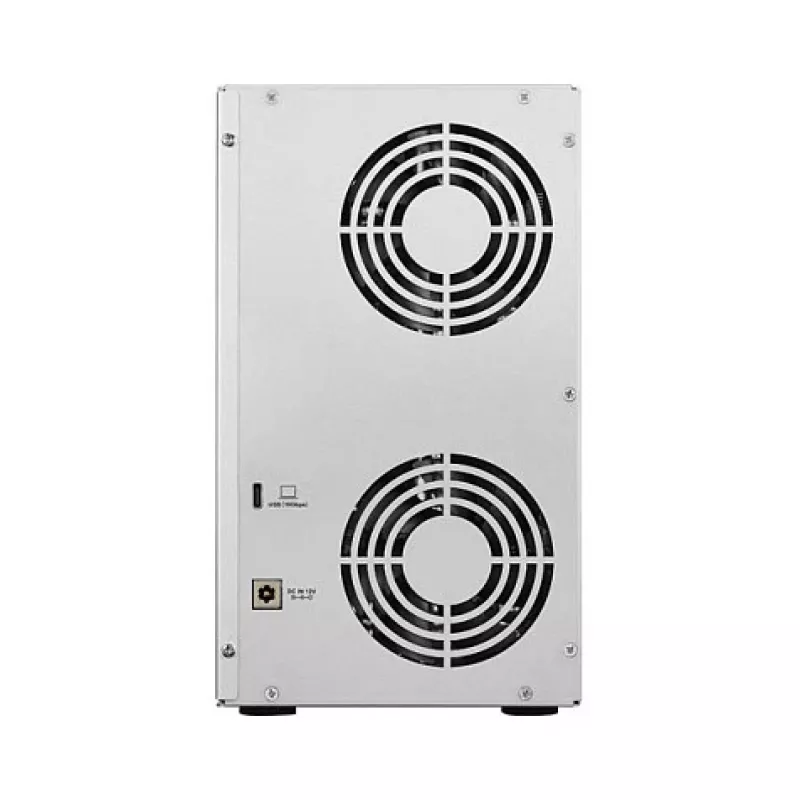

Better Heat Dissipation

D6-320 adopts an intelligent temperature-controlled and low-noise fan that adjusts its speed automatically based on the temperature of the hard disk to ensure the hard disk to work at the best operating temperature. Furthermore, the internal structure of the device is specially optimized, which not only effectively increases the internal air pressure and reduces the working temperature of the hard disk, but also greatly reduces the resonance between device components and the hard disk. With this feature, D6-320 can maintain satisfactory low noise even under a full-load working environment.

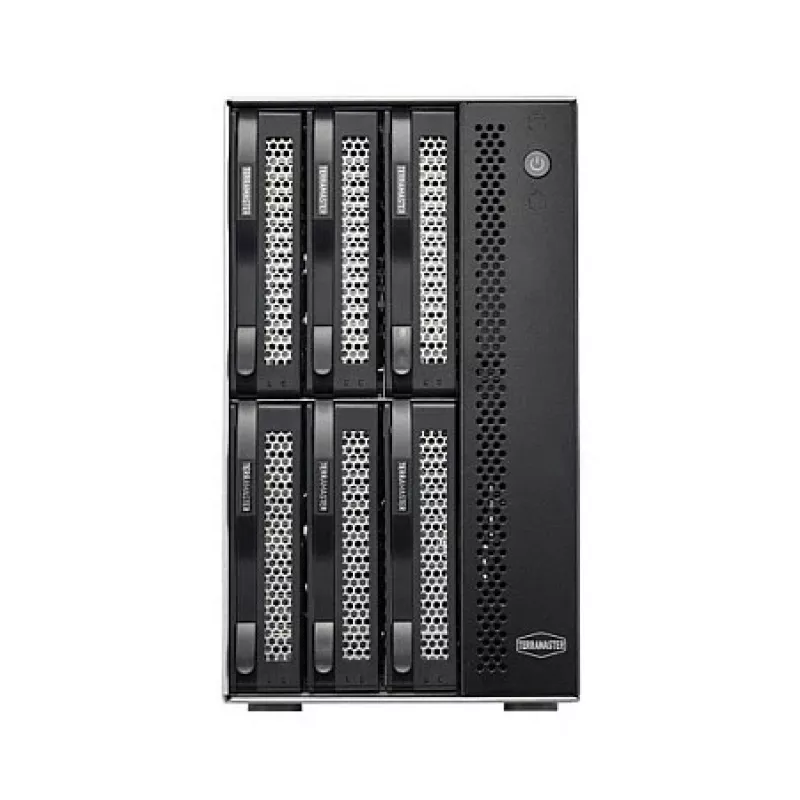

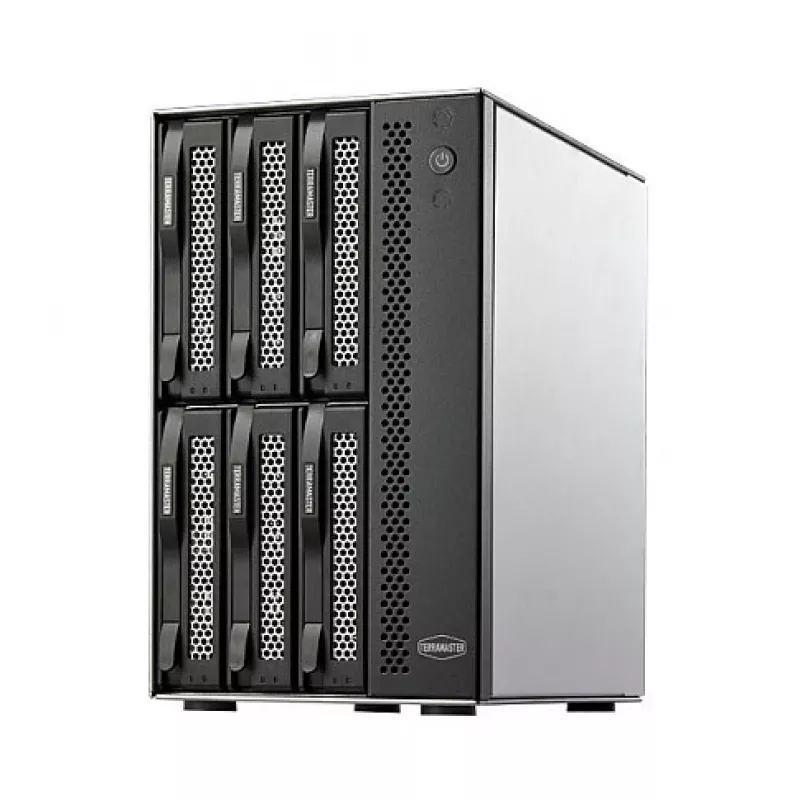

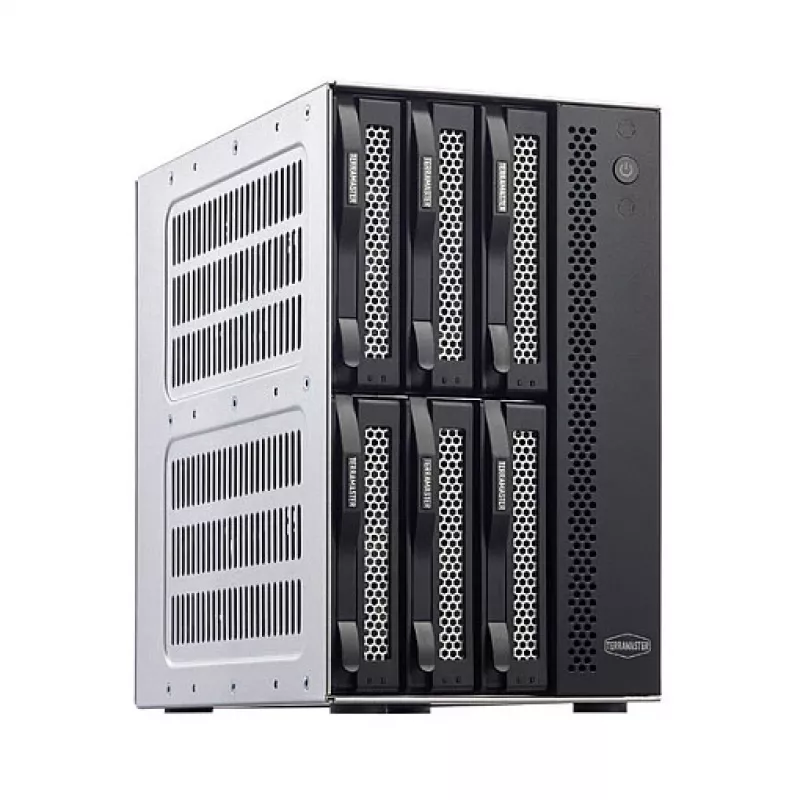

Small and Compact Design

D6-320 is of an all-metal fuselage with a compact structure. Through structural optimization, the space occupation is greatly reduced, thus reaching a small size. Meanwhile, D6-320 is designed as vertical and horizontal types to better meet the requirements of small commercial clients with limited space.

Automatic Backup

TPC Backupper is an extremely user-friendly Windows PC backup tool that allows you to schedule the backup of folders and disk partitions on your Windows PC to TerraMaster USB devices or NAS network storage servers.To start automatic backups, simply connect the device to your computer, install the TPC Backupper client, and set up a scheduled backup task.This straightforward and reliable backup solution enables you to concentrate on your work, while in the background the TerraMaster D6-320 concentrates on its work to protect your crucial data. TPC Backupper supports both incremental and differential backup strategies and is compatible with Windows 8/8.1/10/11.

TerraMaster D6-320. Chassis type: Desktop, Device class: Home & Home Office. Number of storage drives supported: 6, Supported storage drive types: HDD & SSD, Supported storage drive interfaces: Serial ATA, Storage drive sizes supported: 2.5,3.5". Width: 130 mm, Depth: 218 mm, Height: 226 mm, Weight: 3.4 kg. Product colour: Black

How to use

Install up to six SATA HDDs or 2.5" SATA SSDs into the drive trays, connect the enclosure to your computer using the supplied USB Type-C cable, and power on the unit. The device works in single-disk mode by default; for RAID or pooled arrays, connect the D6-320 to a TerraMaster NAS running TOS 5.1 or later and configure arrays through the NAS management software or use third-party software on a host computer if needed. Use the included TPC Backupper client on Windows to schedule automatic backups to the D6-320.

Recommendations

Before purchasing or installing drives, check TerraMaster’s compatibility list for supported HDD/SSD models. Use the supplied power adapter and a compatible USB Type-C host port; avoid unsupported or damaged power supplies. For NAS array functions, ensure the TerraMaster NAS runs TOS 5.1 or newer. Regularly back up important data and allow the enclosure adequate ventilation to maintain optimal temperatures.
