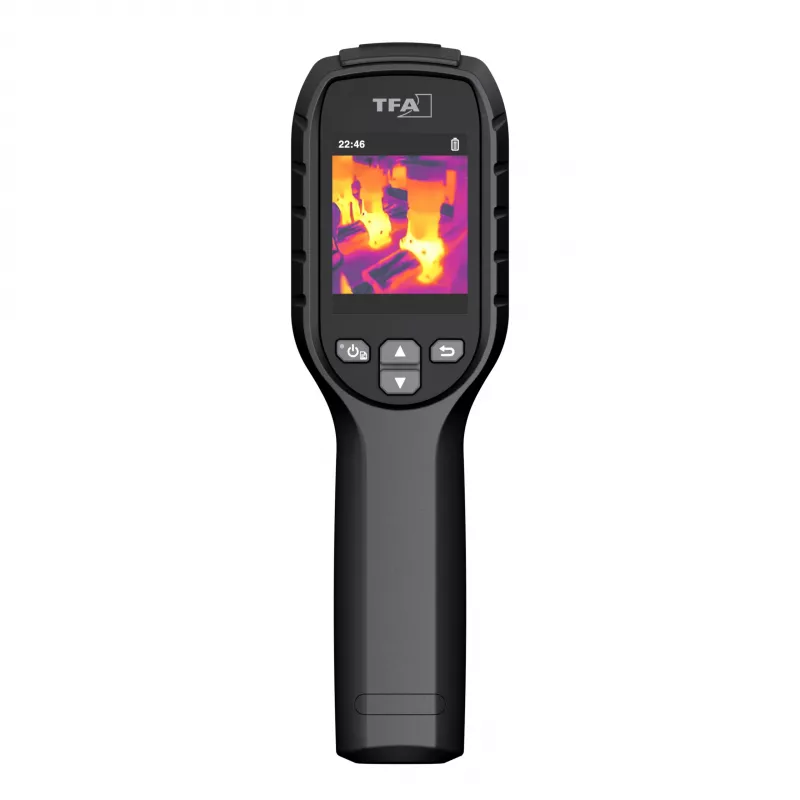

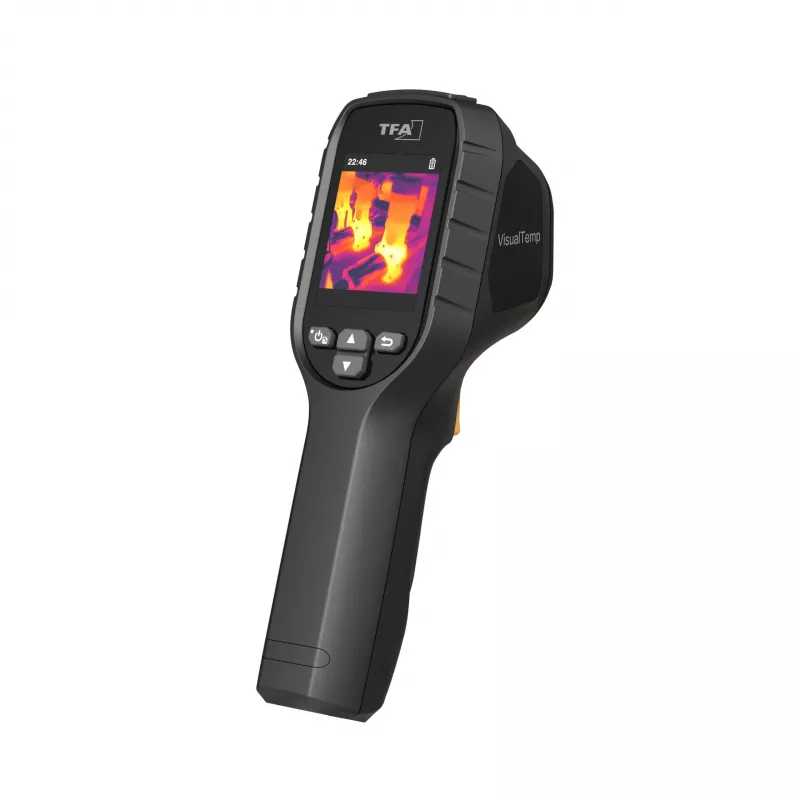

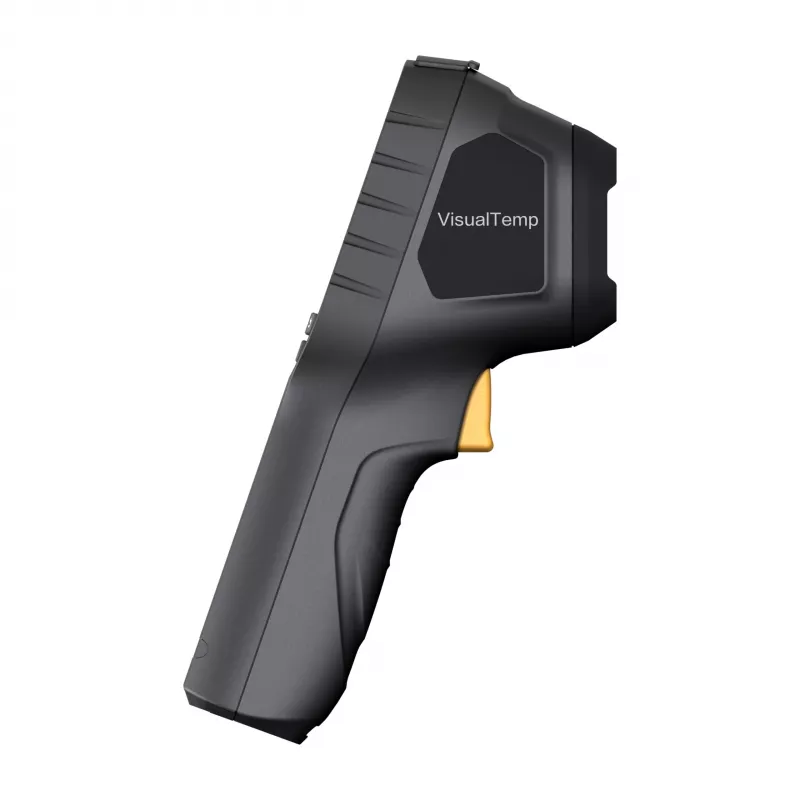

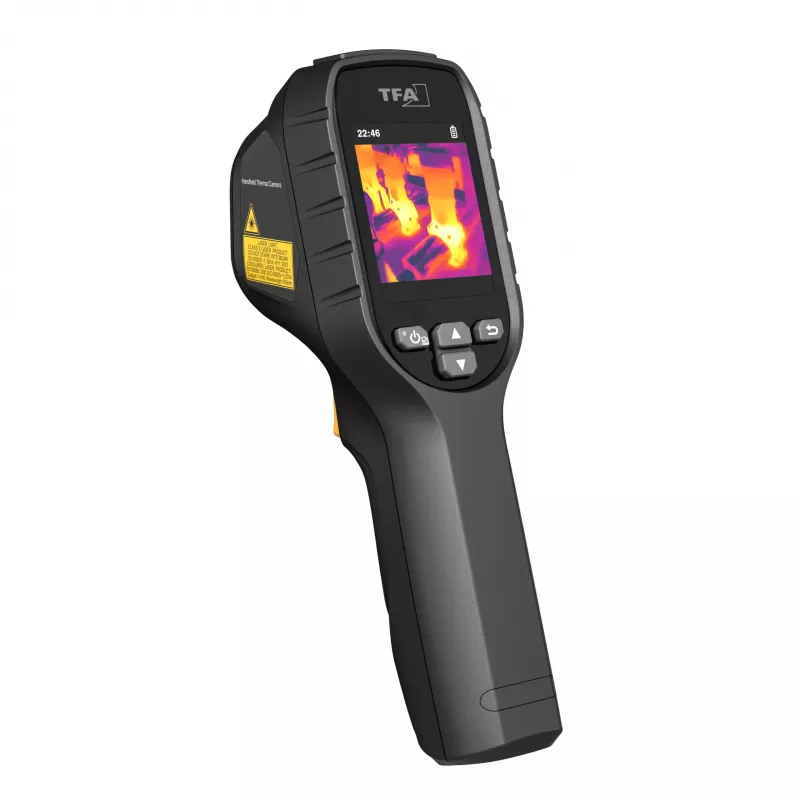

TFA Dostmann VisualTemp 31.1144.01 Cámara termográfica

Thermal imaging camera with integrated visual camera and 2.4" TFT colour display, offering precise temperature measurement from -20°C to +300°C. The 32x32 pixel IR sensor with 1024 measurement points delivers reliable thermal images for professional diagnostics.

Advantages

Combines thermal and visual imaging with fusion modes (25%, 50%, 75%) for enhanced detail. Adjustable emissivity (0.01–1.00) and hot/cold spot tracking ensure accurate readings. Robust IP54 housing and laser pointer add convenience in the field.

Suitable for

• Electrical maintenance and troubleshooting
• Building inspections and HVAC diagnostics
• Predictive maintenance in industrial settings

Key specifications

• IR resolution: 32 x 32 pixels (1024 measurement points)
• Temperature range: -20°C to +300°C
• Accuracy: ±2°C or ±2%
• Thermal sensitivity: <150 mK
• Field of view: 33° x 33°
• Frame rate: 9 Hz
• Display: 2.4" TFT, 320 x 240 pixels
• Storage: MicroSD up to 32GB (8GB included)
• Battery: Li-ion 2600mAh, up to 4 hours
• USB-C charging

Recommendations

Ideal for professionals needing a compact, rugged thermal camera with visual fusion and precise temperature analysis.
