Theben Pulsador KNX RF 2/4 canales con actuador de persiana PD 1 RF 4941675

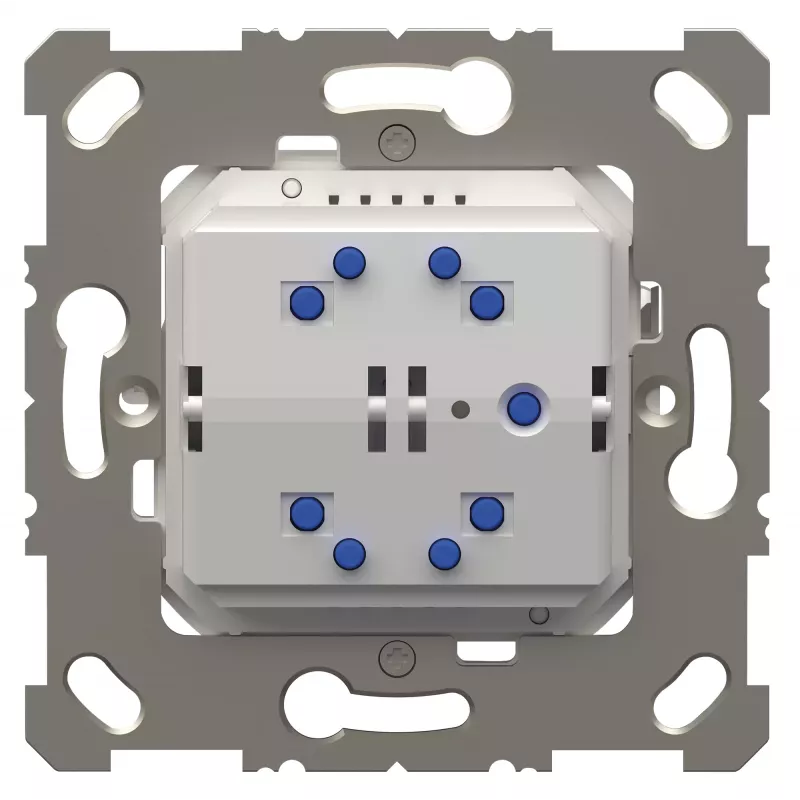

This flush-mounted KNX RF push-button combines two or four configurable channels with a single blind actuator, enabling direct control of blinds or shutters without a wired KNX bus. The device operates on the KNX RF S system mode at 868.3 MHz and is powered by 230 V AC.

Highlights

• One blind actuator output for motor loads up to 3 A (cos φ = 0.6)
• 2 or 4 push-button channels, configurable via ETS
• Functions: Up/Down, Stop, Step-by-step, scene control, sun protection
• Manual operation via programming button
• Low power consumption: < 0.5 W

In daily use

The PD 1 RF integrates seamlessly into KNX RF installations, providing reliable control of blinds and shutters. Its compact flush-mounted design suits standard wall boxes, and the plastic housing ensures durability. The device operates within a temperature range of -5 °C to +45 °C.

Full specifications

• Product type: KNX RF Push-button with Blind Actuator
• KNX medium: KNX RF S (System Mode)
• Operating voltage: 230 V AC, 50/60 Hz
• Number of actuator outputs: 1 (for blinds/shutters)
• Switching current (motor load): 3 A (cos φ = 0.6)
• Number of push-button channels: 2 or 4 (configurable)
• Mounting type: Flush-mounted
• Radio frequency: 868.3 MHz
• Protection class: IP20
• Operating temperature: -5 °C to +45 °C
• Configuration software: ETS
• Power consumption: < 0.5 W
• Housing material: Plastic
• Bus connection: KNX RF

Final note

A flexible KNX RF solution for blind control with integrated push-button interface.
