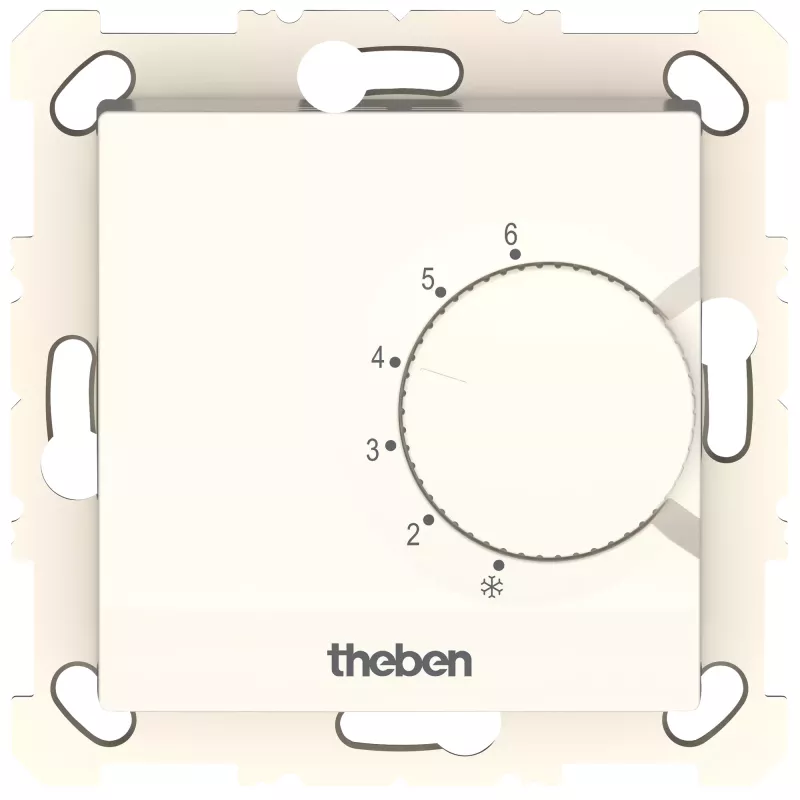

THEBEN RAMSES 741 S Termostato de ambiente electrónico empotrable, mando giratorio, 230 V, 10 A, blanco puro

The RAMSES 741 S stands apart from conventional room thermostats by combining a robust, flush-mounted design with straightforward rotary operation, making precise temperature control accessible to everyone. Unlike digital models that require menu navigation, this thermostat delivers immediate, tactile adjustment of your heating system, ensuring comfort at a turn of the knob.

Highlights

• Flush-mounted installation for a clean, integrated look in any room
• Simple rotary knob for intuitive temperature setting from +5 °C to +30 °C
• Reliable switching capacity of 10 A / 2300 W for direct control of heating loads
• Internal NTC sensor ensures accurate and stable temperature measurement
• Heating ON LED indicator provides clear status at a glance
• Pure white (RAL 9010) finish and UV-resistant thermoplastic housing blend seamlessly with standard switch ranges

In daily use

Installed in a standard flush-mounted box, the RAMSES 741 S becomes a discreet yet essential part of your heating system. The rotary knob allows you to set the desired temperature quickly—no complex programming, no waiting for screens to refresh. The internal sensor reacts to room temperature changes with a switching differential of approximately 0.5 K, maintaining a stable and comfortable environment without frequent cycling. The LED indicator lights up when the heating contact is closed, so you always know when the system is active. With screw terminals and a protection class II rating, installation is safe and straightforward for qualified electricians.

Full specifications

• Product type: Electronic room thermostat
• Mounting type: Flush-mounted (UP)
• Control type: Rotary knob
• Operating voltage: 230 V AC, 50 Hz
• Switching current (resistive): 10 A
• Switching capacity (resistive): 2300 W
• Temperature setting range: +5 °C to +30 °C
• Switching differential (hysteresis): approx. 0.5 K
• Sensor type: Internal NTC
• Contact type: 1 NO (normally open)
• Operating mode: Heating
• Protection class (device): IP20
• Protection class (insulation): II according to EN 60730-1
• Color: Pure white (RAL 9010)
• Indicator: Heating ON LED
• Housing material: Thermoplastic, UV-resistant
• Connection type: Screw terminals

Final note

For those who value simplicity and reliability, the RAMSES 741 S offers a timeless solution that integrates effortlessly into any heating control setup, providing consistent comfort without unnecessary complexity.
