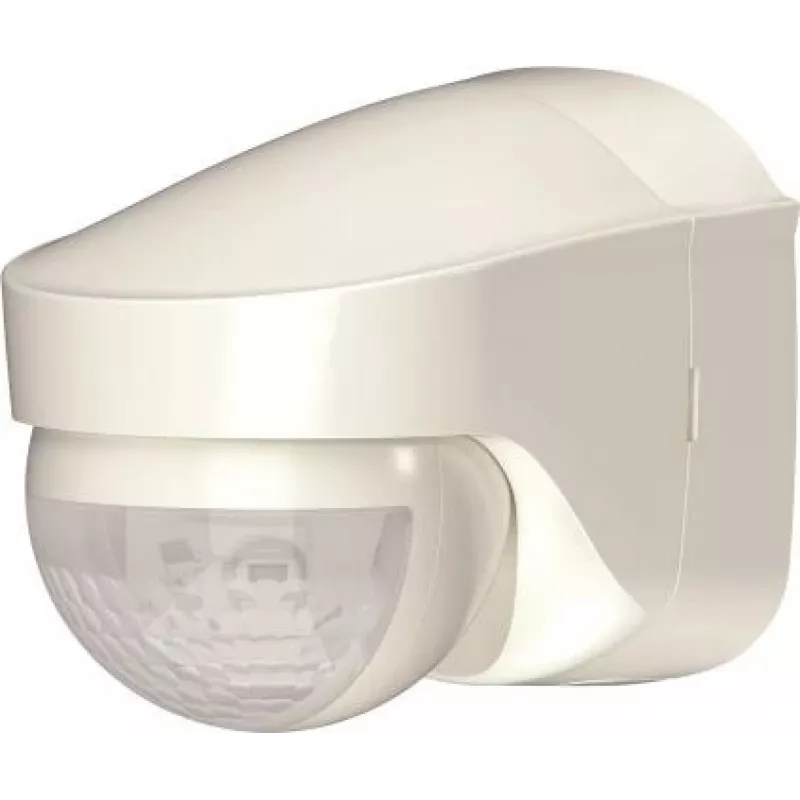

THEBEN THE PIRA TO AP Detector de movimiento PIR para montaje en pared exterior, semicircular, blanco

Outdoor lighting that reacts to presence not only adds convenience but also deters intruders and saves energy. The THEBEN THE PIRA TO AP motion detector brings this intelligence to your exterior walls with a wide 200° detection angle and a 12-metre reach, so you can cover driveways, entrances, and garden paths with a single unit.

Who is it for

Homeowners, facility managers, and electricians who need a reliable, weatherproof PIR sensor for controlling outdoor lighting. It is ideal for anyone wanting to automate lights based on movement and ambient brightness, reducing energy waste while enhancing security.

Main features

• Passive infrared (PIR) sensor with 200° detection angle and 12 m range at 2.5 m mounting height.
• Adjustable time setting from 10 seconds to 15 minutes, and brightness threshold from 5 to 1000 lux.
• High switching capacity: 2300 W for incandescent/halogen, 600 W for LED loads.
• Robust IP55-rated housing made of UV-stabilised polycarbonate, suitable for outdoor use.
• Half-round, white design blends discreetly with modern facades.
• Relay output with µ-contact for reliable switching.

Specifications

• Sensor type: Passive Infrared (PIR)
• Mounting type: Wall-mounted, surface-mounted
• Application area: Outdoor
• Detection angle: 200°
• Detection range: 12 m at 2.5 m mounting height
• Recommended mounting height: 2.0 – 4.0 m
• International Protection (IP) code: IP55
• Power source: 230 V AC, 50 Hz
• Switching capacity incandescent/halogen: 2300 W
• Switching capacity LED: 600 W (for >2 W LED)
• Time setting range: 10 s – 15 min
• Brightness setting range: 5 – 1000 lux
• Operating temperature: -25 °C to +50 °C
• Housing material: UV-stabilised polycarbonate
• Colour: White
• Standby power consumption: 0.5 W

Tips

For optimal coverage, mount the detector at a height of 2.5 metres and avoid pointing it towards reflective surfaces or heat sources that could cause false triggers. Adjust the time and brightness settings to suit the specific area and usage patterns to maximise energy savings.
