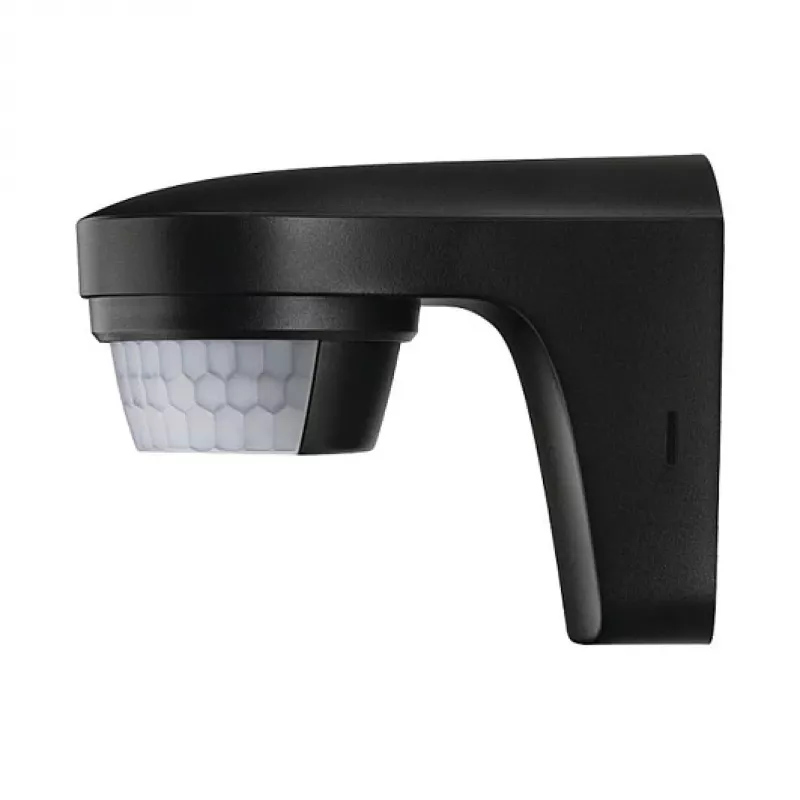

THEBEN theLuxa S180 BK Detector de movimiento PIR – ángulo de detección 180°, alcance 12 m, montaje en pared, Negro

The theLuxa S180 BK is a passive infrared (PIR) motion detector from THEBEN, engineered for dependable presence detection in both indoor and outdoor settings. With a generous 180° detection angle and a maximum range of 12 metres, this wall-mounted sensor covers wide areas with a single device, making it an excellent choice for automatic lighting control and security applications.

Advantages

Robust, weather-resistant and energy-efficient, the theLuxa S180 BK simplifies everyday lighting. Its IP55 protection class allows installation in damp or dusty environments, while the UV-stabilised polycarbonate housing ensures long-lasting performance under direct sunlight. The detector also supports manual override via an external push button, so you can keep lights on indefinitely when needed. With adjustable time lag and brightness thresholds, it adapts to changing user preferences and ambient light conditions.

Suitable for

• Entrance areas, corridors, stairwells and garages
• Automatic lighting in workshops, warehouses and utility rooms
• Outdoor areas protected from direct water jets (IP55)
• Security lighting to deter intruders
• Energy-saving light management in residential and commercial buildings

Key specifications

• Detection angle: 180°
• Detection range: up to 12 m
• Mounting type: wall-mounted
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity: 2300 W (incandescent/halogen), 300 W (LED)
• Time setting: 5 seconds to 15 minutes
• Brightness setting: 5 to 1000 lux
• Sensor type: passive infrared (PIR)
• Protection class: IP55
• Housing material: UV-stabilised polycarbonate
• Ambient temperature range: -25 °C to +50 °C
• Standby power consumption: 0.5 W
• Halogen-free

Recommendations

For optimal coverage, install the sensor at a height of 2.5 m and aim it towards main walking paths. Use the external push-button override for situations where continuous light is required. Adjust the time and lux settings to match your environment, and remember that IP55 protection does not permit permanent submersion in water.
