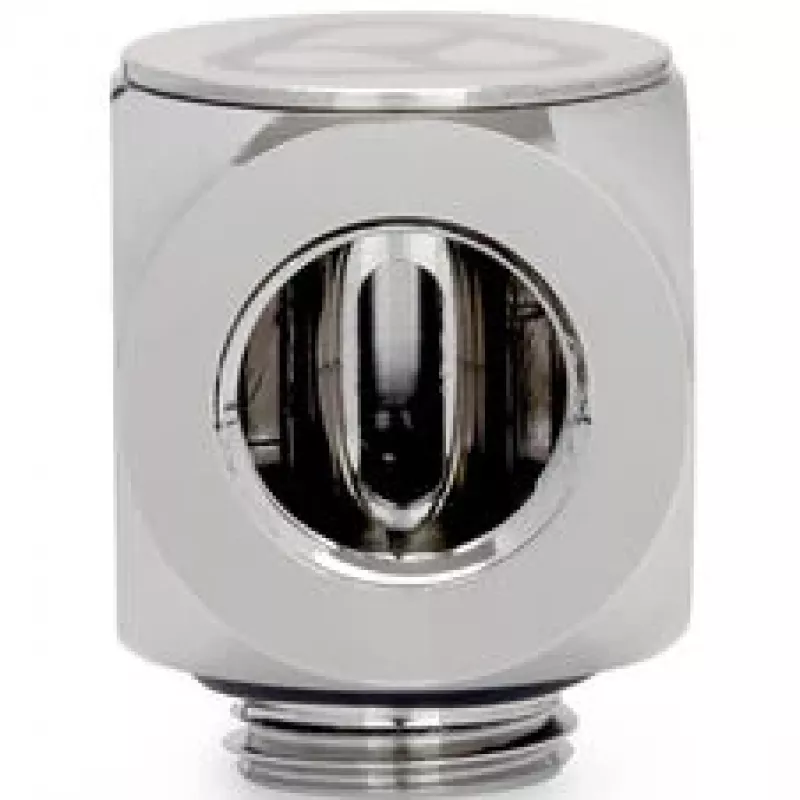

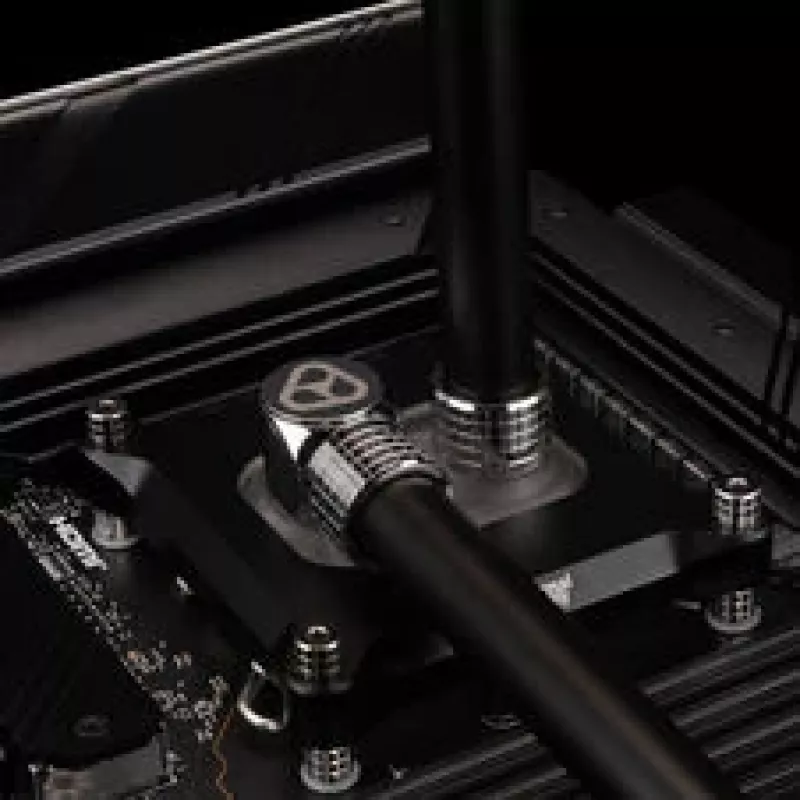

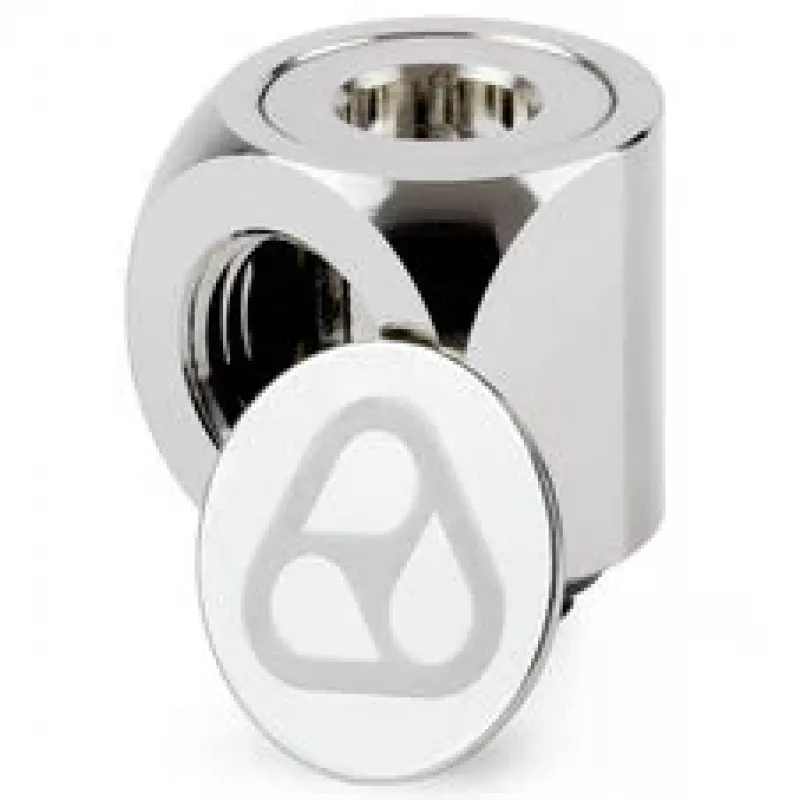

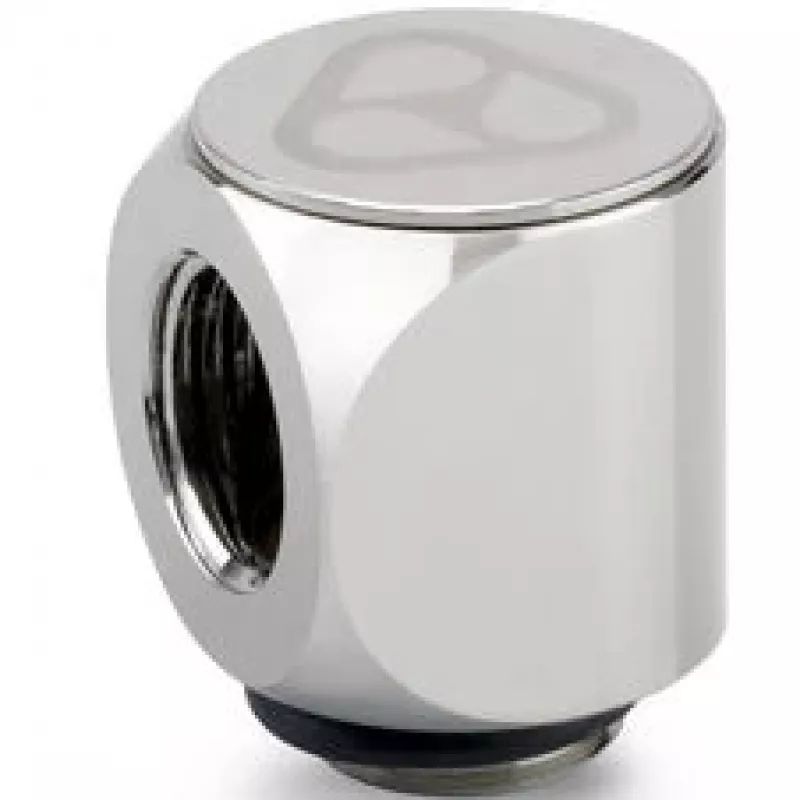

Thermal Grizzly DeltaMate Adaptador giratorio de 90° G1/4" - níquel brillante

Engineered for high-flow water cooling loops, the Thermal Grizzly DeltaMate Rotary 90° adapter delivers a full 360° swivel rotation with a leak-proof G1/4" BSPP connection. Its gloss nickel-plated brass body resists corrosion while the NBR O-rings ensure a secure seal, making it a reliable choice for tight tubing runs.

Overview

The DeltaMate Rotary 90° is a precision-machined fitting designed to change the direction of tubing or components by 90 degrees. The male G1/4" thread screws directly into radiators, blocks, or reservoirs, while the female G1/4" port accepts standard fittings. The rotary joint allows the female side to rotate independently through 360 degrees, simplifying tube routing in compact builds. The gloss nickel finish provides a bright, reflective surface that complements nickel-plated blocks and fittings.

What stands out

• Full 360° rotary adjustment for flexible tube alignment
• High-flow optimized internal geometry minimizes restriction
• Durable brass construction with corrosion-resistant gloss nickel plating
• NBR O-rings ensure a reliable, leak-proof seal
• Standard G1/4" BSPP threads for universal compatibility

Technical details

• Product type: Water cooling fitting
• Fitting type: 90° rotary adapter
• Thread size: G1/4"
• Thread standard: BSPP (G-thread)
• Connection type: Male G1/4" to female G1/4"
• Material: Brass
• Finish: Gloss nickel plated
• Colour: Silver
• Rotation angle: 360 degrees
• Seal material: NBR O-rings
• Compatibility: PC water cooling systems
• Application: Angle connection for tubing/components
• Flow design: High-flow optimized
• Corrosion resistance: Yes
• Leak-proof design: Yes
• Installation: Screw-in
• Brand series: DeltaMate
• Manufacturer: Thermal Grizzly

Our verdict

A premium rotary adapter that combines robust construction with smooth rotation, ideal for builders seeking a clean, high-performance angle solution in custom loops.
