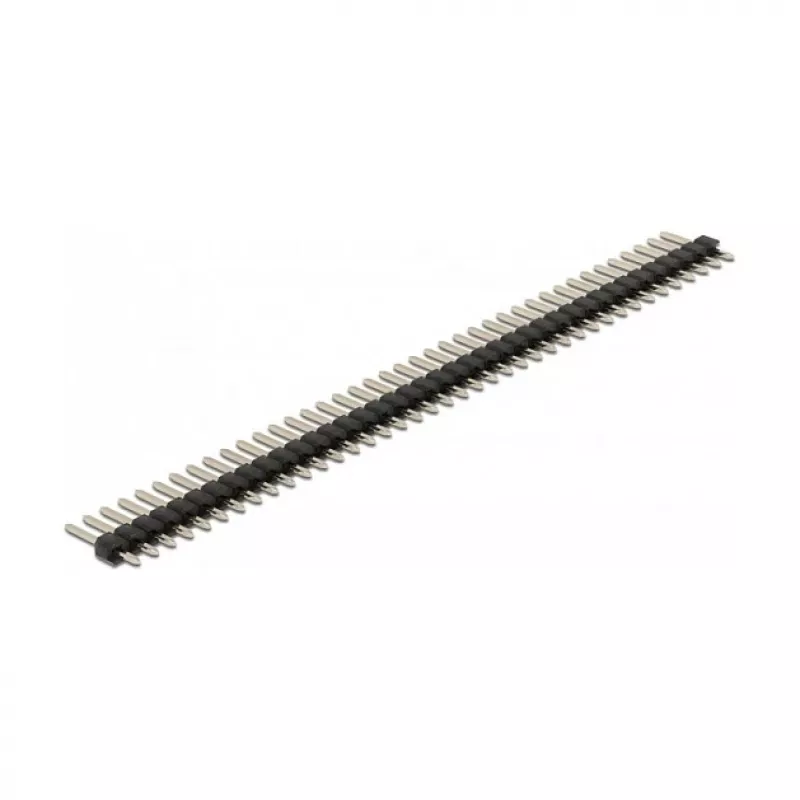

Tira de pines DeLOCK 66694 accesorio para placas de circuito impreso (PCB)

The DeLOCK 66694 pin header is an accessory for printed circuit boards designed to create reliable electrical connections between individual boards or modules. Constructed from metal and plastic with a black and metallic finish, it combines durability with a compact form factor. Its dimensions (101.6 mm length, 11.5 mm depth, 2.5 mm height) make it suitable for integration in various electronic projects and assemblies.

Advantages

The DeLOCK 66694 pin header provides a stable mechanical and electrical connection for PCB-to-PCB or module interfaces. Its metal contacts ensure conductivity while the plastic housing provides insulation and structural support. The compact dimensions and standard pin spacing facilitate straightforward installation and compatibility with typical PCB layouts.

Suitable for

• Connecting stacked or adjacent printed circuit boards
• Prototyping and hobby electronics projects
• Peripheral or module interconnections in electronic assemblies

Key specifications

• Brand: DELOCK
• Model / MPN: 66694
• EAN: 4043619666942
• Material: metal contacts with plastic housing
• Finish: black and metallic
• Dimensions: 101.6 mm (L) x 11.5 mm (D) x 2.5 mm (H)

How to use

Place the pin header into the designated through-holes or header footprint on the printed circuit board, ensuring correct orientation and pin alignment. Secure the header by soldering each pin to the PCB pads to establish a reliable electrical and mechanical connection. Verify continuity and correct polarity where applicable before applying power to the assembled device.

Recommendations

Use appropriate soldering tools and safety precautions when mounting the pin header. Confirm the compatibility of pin spacing and footprint with your PCB design and avoid excessive mechanical stress on the connector after installation.
