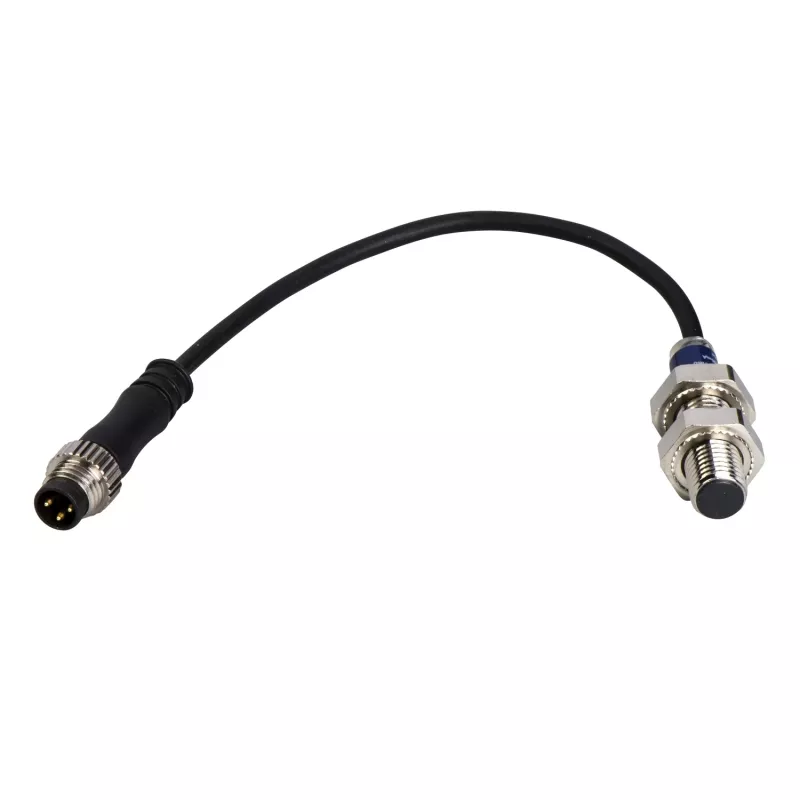

TMSS Germany Sensor de proximidad inductivo M8, PNP, NA, 2,5 mm, conector M8 – XS508B1PBP01M8

This inductive proximity sensor from the OsiSense XS series offers reliable detection in a compact M8 cylindrical housing, with a 2.5 mm sensing distance and PNP normally-open output for straightforward integration into industrial automation systems.

Highlights

• Flush mountable M8 housing for easy installation in tight spaces
• PNP output with 1 normally-open contact for direct connection to PLC inputs
• Robust nickel-plated brass body with IP67/IP69K protection
• Wide operating temperature range from -25°C to 70°C
• High switching frequency up to 2500 Hz for fast response

In daily use

The sensor's 3-wire M8 male connector simplifies wiring, while overload and short-circuit protection ensure long-term reliability. Its flush mounting capability allows it to be embedded in metal without performance loss, making it suitable for position sensing, presence detection, and counting tasks on automated machinery.

Full specifications

• Sensor type: Inductive proximity sensor
• Series: OsiSense XS
• Sensor design: Cylindrical M8
• Size: 33 mm
• Flush mounting acceptance: Flush mountable
• Nominal sensing distance (Sn): 2.5 mm
• Output type: PNP
• Output function: 1 NO (normally open)
• Wiring technique: 3-wire
• Electrical connection: M8 male connector, 3 pins
• Supply voltage limits: 12...24 V DC
• Switching capacity: ≤ 200 mA DC
• Switching frequency: ≤ 2500 Hz
• Degree of protection: IP67, IP69K
• Operating temperature: -25...70 °C
• Housing material: Nickel plated brass
• Front face material: PPS
• Protection features: Overload and short-circuit protection

Final note

A compact and durable inductive sensor for demanding industrial environments, offering reliable detection with a PNP output and easy M8 connectivity.
