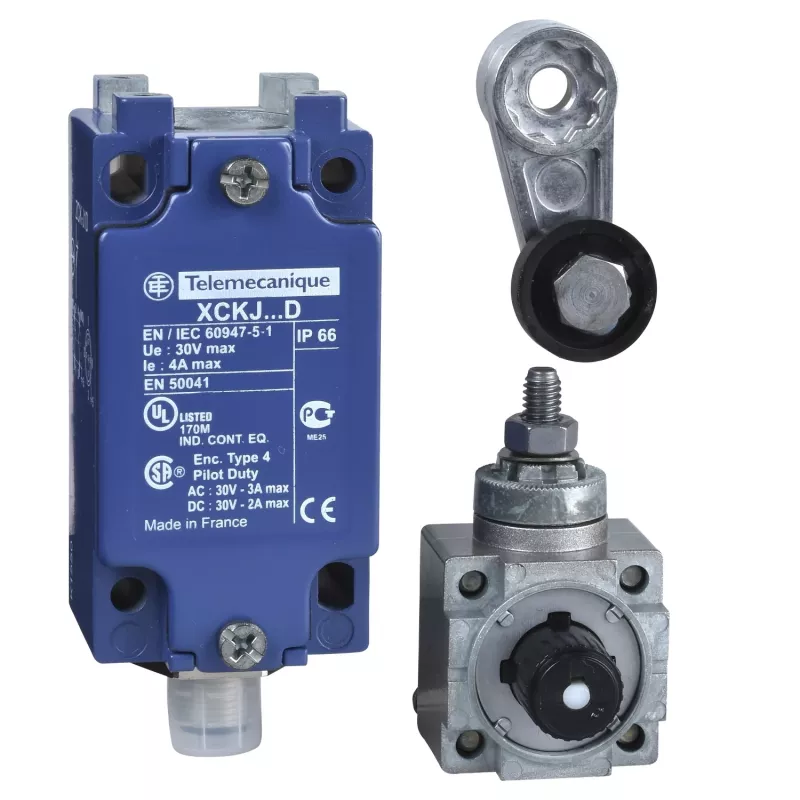

TMSS GERMANY Telemechanique Sensors Interruptor de final de carrera XCKJ10513D IP66/IP67

With a mechanical durability of 10,000,000 cycles, the TMSS GERMANY XCKJ10513D is a robust limit switch built for demanding industrial applications. Its positive opening contact ensures safety in control circuits, while the IP66/IP67 rated Zamak enclosure protects against dust and water ingress.

Overview

The XCKJ10513D from the OsiSense XC series features a rotary head with a spring return roller lever actuator made of thermoplastic. It offers a snap action contact configuration with 1 NC + 1 NO, suitable for a wide range of position sensing tasks.

What stands out

• Positive opening operation for safety-related applications
• High mechanical durability: 10 million cycles
• IP66 and IP67 protection ratings
• Wide operating temperature range: -25°C to 70°C
• Shock resistance up to 50 gn

Technical details

• Product Series: OsiSense XC
• Product Type: Limit Switch
• Body Type: Fixed
• Head Type: Rotary Head
• Actuator Type: Spring Return Roller Lever (Thermoplastic)
• Contact Configuration: 1 NC + 1 NO
• Contact Operation: Snap Action
• Positive Opening: Yes
• Electrical Connection: Screw Clamp Terminals
• Cable Entry: 1 entry tapped for M20 x 1.5 cable gland
• Enclosure Material: Zamak (Metal)
• IP Rating: IP66, IP67
• IK Rating: IK07
• Rated Insulation Voltage (Ui): 500 V (IEC 60947-1)
• Rated Operational Current (Ie): 3 A @ 240 V AC-15; 0.27 A @ 250 V DC-13
• Mechanical Durability: 10,000,000 cycles
• Operating Temperature Range: -25 to 70 °C
• Shock Resistance: 50 gn (for 11 ms conforming to IEC 60068-2-27)
• Vibration Resistance: 25 gn (10-500 Hz conforming to IEC 60068-2-6)

Our verdict

A dependable limit switch with positive opening and high environmental protection, ideal for industrial automation and safety circuits.
