Toma de antena Jultec JAD300TRS 3 orificios terminal TV Radio SAT

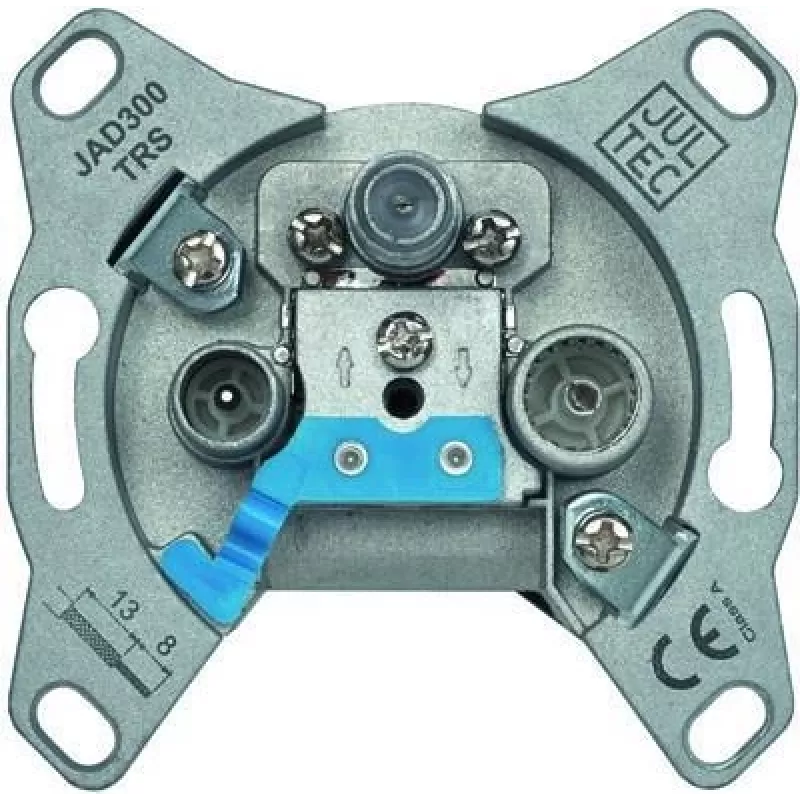

The Jultec JAD300TRS is a high-quality antenna socket designed for flush-mount installation, providing three separate outputs for TV, radio, and SAT signals. This end outlet (Stichdose) is ideal for modern home entertainment systems, supporting Unicable (EN50494) and JESS (EN50607) standards, as well as DVB-T/T2, DVB-C, and DVB-S/S2. With excellent shielding effectiveness (>100 dB, Class A+) and low attenuation (1.5 dB across all bands), it ensures reliable signal transmission with minimal loss.

Advantages

• Three dedicated outputs: TV (IEC male), Radio (IEC female), SAT (F-type female)
• DC pass-through on SAT port (max 500 mA) for powering LNBs
• High shielding effectiveness (>100 dB) for interference-free reception
• Low attenuation (1.5 dB) across all frequency ranges
• Robust die-cast zinc housing for durability
• Flush-mount design for a clean, professional installation

Suitable for

• Residential and commercial TV/SAT installations
• Single-cable solutions (Unicable/JESS) for multi-room setups
• Replacing existing antenna outlets with a modern, high-performance socket

Key specifications

• Product Type: Antenna Socket
• Socket Type: End Outlet (Stichdose)
• Number of Outputs: 3
• Output Types: TV, Radio, SAT
• TV Output Connector: IEC Male (Coaxial Plug)
• Radio Output Connector: IEC Female (Coaxial Socket)
• SAT Output Connector: F-Type Female
• Frequency Range TV: 47 - 862 MHz
• Frequency Range Radio: 87.5 - 108 MHz
• Frequency Range SAT: 950 - 2400 MHz
• Attenuation TV: 1.5 dB (47-862 MHz)
• Attenuation Radio: 1.5 dB (87.5-108 MHz)
• Attenuation SAT: 1.5 dB (950-2400 MHz)
• DC Passage SAT: Yes (max 500 mA)
• Impedance: 75 Ohm
• Shielding Effectiveness: >100 dB (Class A+)
• Return Loss: >10 dB
• Mounting Type: Flush-mount (Unterputz)
• Compatibility: Unicable (EN50494), JESS (EN50607), DVB-T/T2, DVB-C, DVB-S/S2
• Housing Material: Die-cast zinc

Recommendations

For optimal performance, use high-quality coaxial cables and ensure proper grounding. The JAD300TRS is compatible with most modern satellite and terrestrial systems, making it a versatile choice for new installations or upgrades.
