Toma de conexión a internet DSIT DANICOM CAT5e

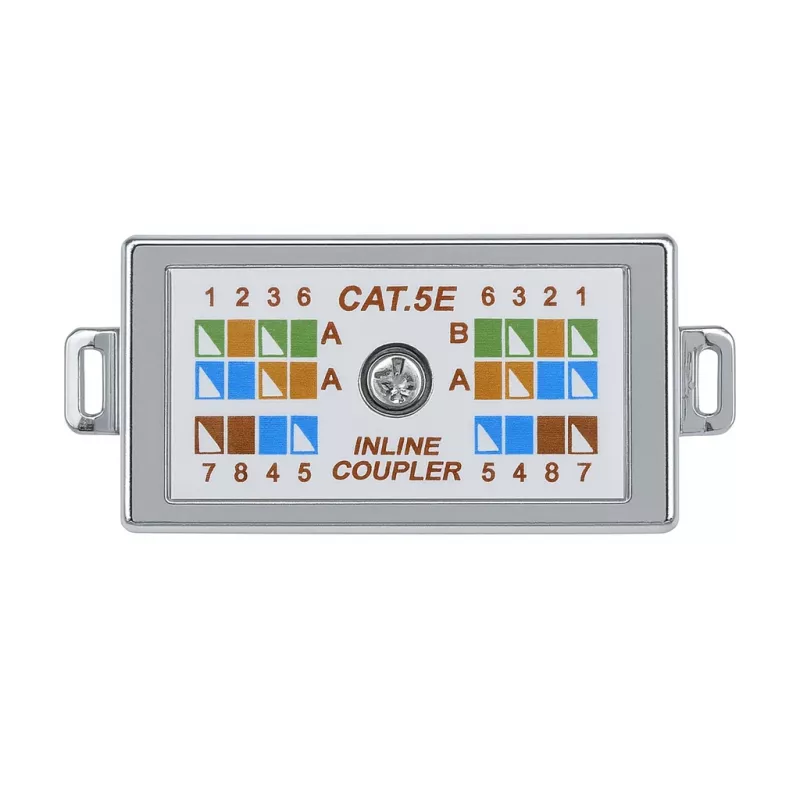

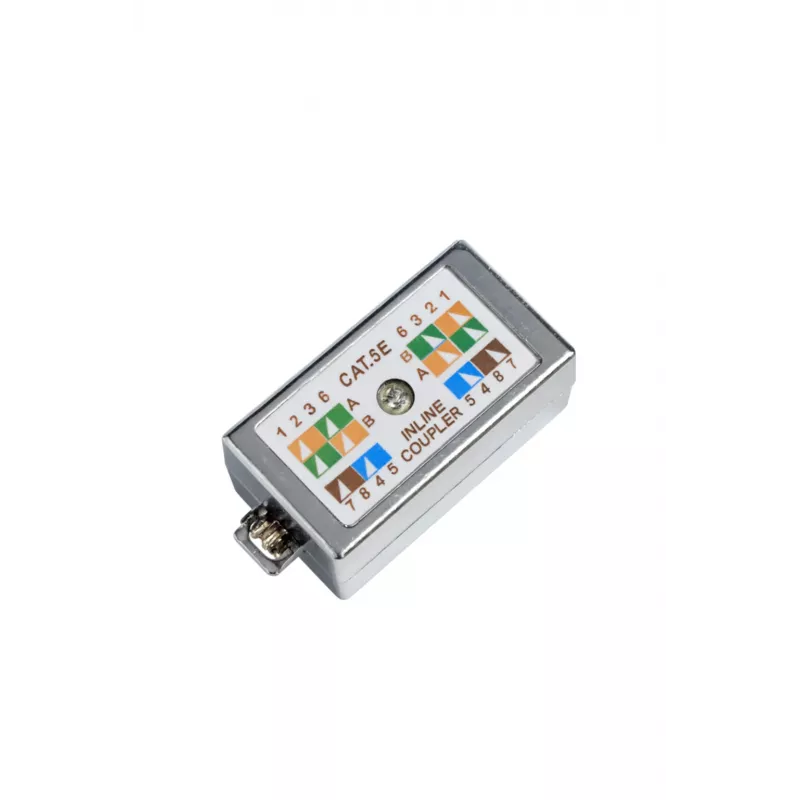

When a CAT5e cable is cut too short or damaged, rewiring an entire run is costly and time-consuming. The DSIT DANICOM CAT5e Internet Junction Box provides a simple, reliable way to join two Ethernet cables without crimping or soldering. This in-line coupler extends your network reach while maintaining stable Fast Ethernet performance.

Who is it for

Network installers, IT technicians, and DIY users who need to repair or extend CAT5e cabling in homes, offices, or industrial environments. Ideal for anyone who wants a plug-and-play solution without special tools.

Main features

• CAT5e performance with 100 MHz bandwidth and up to 100 Mbps data transfer
• Two RJ45 female ports with gold-plated contacts for corrosion resistance

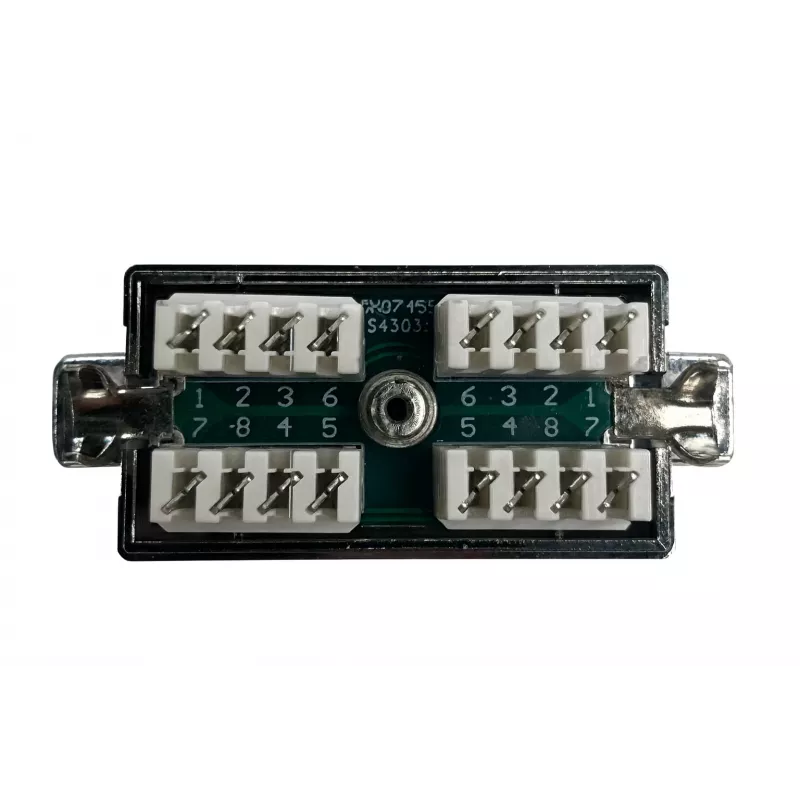

• Pass-through wiring compatible with TIA/EIA 568-A/B standards
• Tool-less connection: simply plug in standard RJ45 patch cables
• Compact ABS housing in white, suitable for surface mounting or in-line use
• Backward compatible with CAT5 and CAT3 cables

Specifications

• Ethernet standard: CAT5e
• Connector type: RJ45 female to RJ45 female
• Number of ports: 2 (input/output)
• Shielding: UTP (unshielded twisted pair)
• Data transfer rate: up to 100 Mbps (Fast Ethernet)
• Bandwidth: 100 MHz
• Housing material: ABS plastic
• Colour: white
• Mounting type: in-line / surface mount
• Contact plating: gold-plated (50 micron)
• Certifications: RoHS, CE
• Operating temperature: -10°C to 60°C
• Humidity range: 10% to 90% RH (non-condensing)
• Insulation resistance: >100 MΩ
• Dielectric strength: 1000V AC RMS for 1 minute
• Durability: 750 mating cycles

Tips

For best performance, use with CAT5e or higher rated cables and avoid sharp bends near the junction. The box can be fixed to a wall or panel using the integrated mounting holes, keeping connections secure and organized.
