Toma de conexión a internet DSIT DANICOM CAT7 (DS-CAT7-JB)

Capable of 10 Gigabit Ethernet speeds with a 600 MHz bandwidth, this Cat7 junction box is a robust solution for extending or repairing shielded network cabling. The fully shielded die-cast metal housing ensures signal integrity even in electrically noisy environments.

Overview

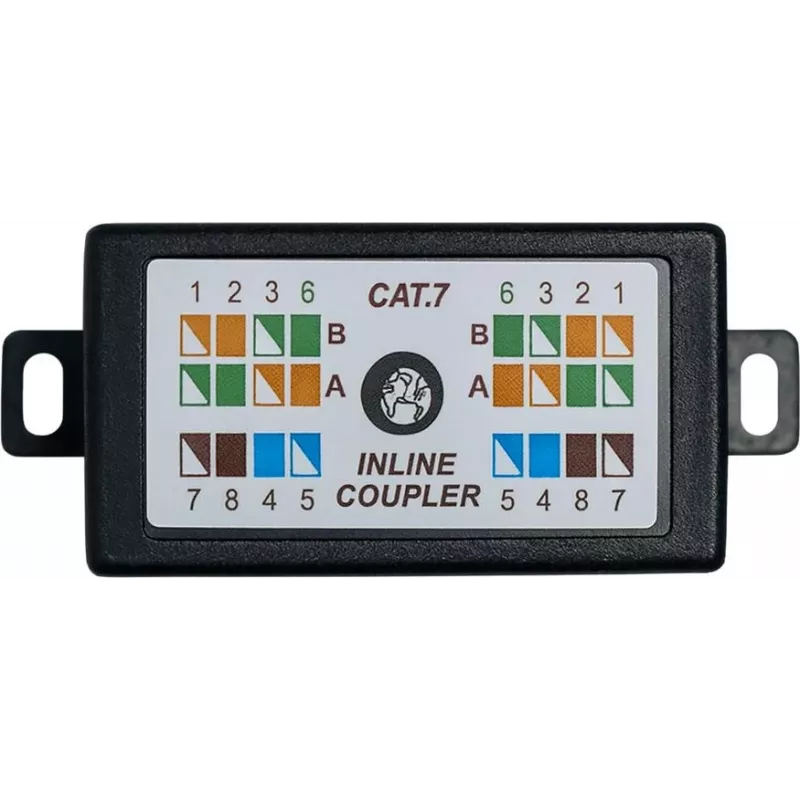

The DSIT DANICOM CAT7 Internet Junction Box (DS-CAT7-JB) provides a reliable connection point for Cat7 network cables. It features a female-to-female RJ45 coupler with IDC termination, allowing quick and secure joining of two cables without the need for special tools. The color-coded T568A/B wiring scheme simplifies installation, while the phosphor bronze contacts with 50µ" gold plating guarantee low contact resistance and long-term durability.

What stands out

• Supports 10GBASE-T for high-speed data transfer up to 10 Gbps
• Fully shielded metal housing protects against EMI/RFI interference
• Tool-free IDC termination for fast and reliable cable connections
• Compatible with 22-26 AWG solid or stranded wires
• Compact surface-mount design fits easily in wall outlets or patch panels

Technical details

• Product type: Network junction box
• Cable category: Cat7 (Category 7)
• Shielding: Fully shielded (S/FTP)
• Bandwidth: Up to 600 MHz
• Connector type: RJ45 female to female
• Termination: IDC, T568A/B color-coded
• Housing: Die-cast metal, grey
• Contact material: Phosphor bronze, 50µ" gold plating
• Wire gauge: 22-26 AWG solid or stranded
• Mounting: Surface mount / wall mount
• Operating temperature: -10°C to 60°C
• Compliance: RoHS, TIA/EIA-568-C.2, ISO/IEC 11801

Our verdict

For professionals seeking a dependable Cat7 junction point, the DS-CAT7-JB delivers excellent performance and build quality. Its shielded construction and high-quality contacts make it ideal for demanding network environments.
