Toma de conexión Telegärtner H02010A0053 blanco

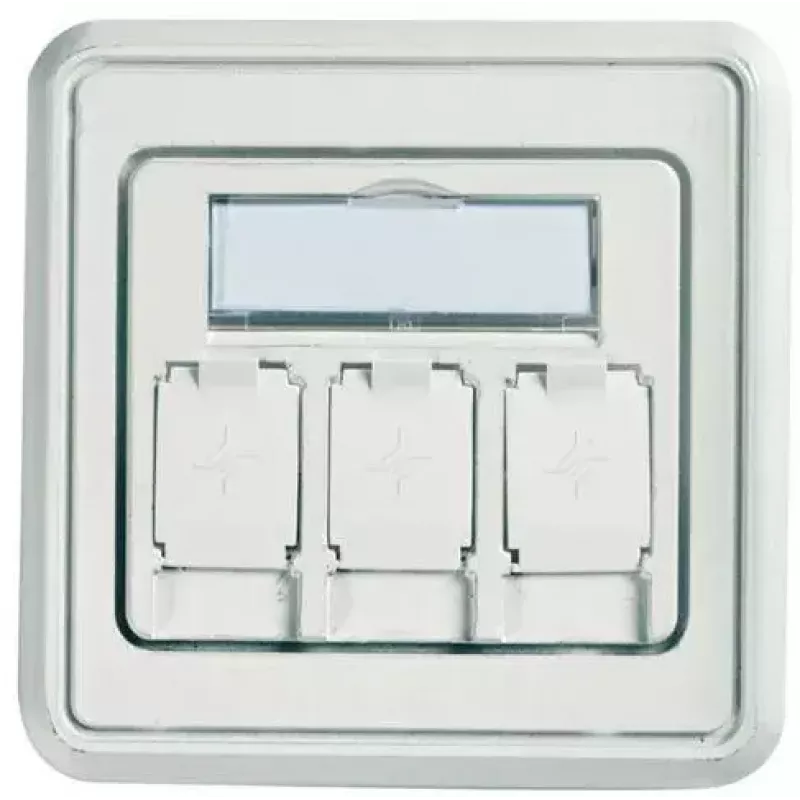

Outlet box Telegärtner H02010A0053 White is an 80×80 mm faceplate designed for mounting modules or couplers. It features an integrated metal module carrier and shutters and is intended for installation in a cable duct with a mating direction of 45°. The white finish provides a neutral appearance suitable for residential and commercial interiors while the metal carrier adds mechanical stability for inserted modules.

Advantages

The integrated metal module carrier ensures secure fixation of modules and couplers, while built-in shutters protect unused openings. The 80×80 mm format fits standard module sizes and the 45° mating direction facilitates angled cable entry in cable duct installations. The white color offers a discreet, uniform look that blends with common wall and duct finishes.

Suitable for

• Mounting keystone modules and couplers in office or home cable ducts
• Applications requiring angled (45°) mating direction for cable routing
• Installations where a recessed faceplate with module carrier and shutters is needed

Key specifications

• Format: 80 × 80 mm faceplate
• Module carrier: integrated metal
• Features: built-in shutters
• Intended installation: for cable duct
• Mating direction: 45°
• Color: white
• Manufacturer: Telegärtner, MPN H02010A0053, EAN 4018359307257

How to use

Install the faceplate into the compatible cable duct opening and secure it according to the duct manufacturer’s instructions. Insert compatible modules or couplers into the metal carrier, ensuring they engage with the carrier’s fixing points. Route cables so they enter at the specified 45° mating direction. Close the shutters when ports are not in use to protect contacts from dust and debris.

Recommendations

Use the faceplate with compatible keystone modules and follow local installation standards. Verify that the cable duct dimensions and the 45° mating direction match the planned cable routing before final installation.
