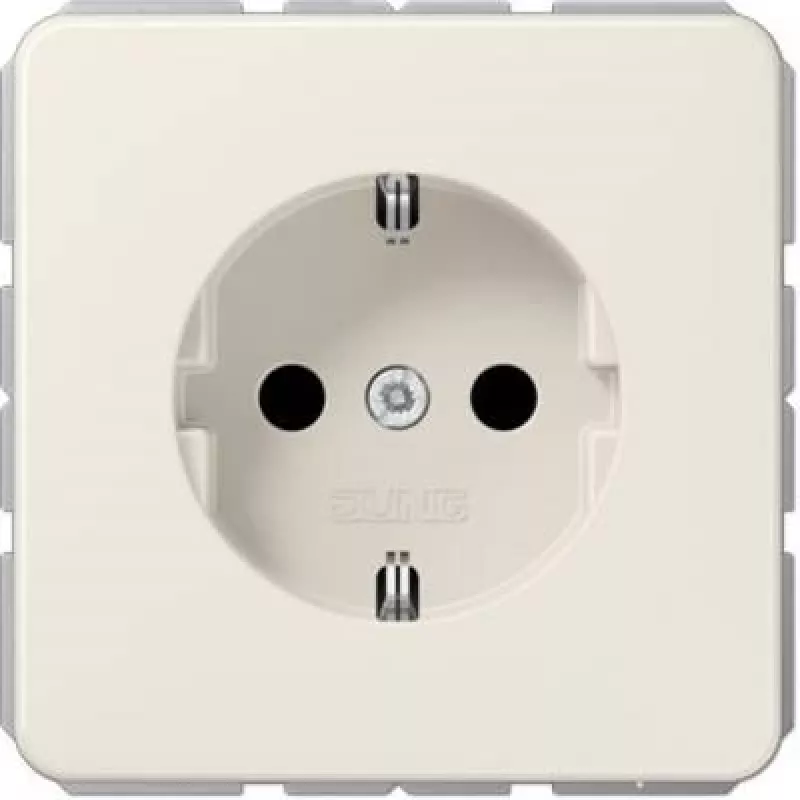

Toma de corriente tipo F JUNG CD 1520 BF marfil

The JUNG CD 1520 BF is a Type F socket outlet in ivory color designed for universal installation. It has a thermoplastic housing, supports a rated voltage of 250 V and a rated current of 16 A, and accepts wires up to 2.5 mm². The device is available as a screwless terminal version (ref. with additional "N", e.g., ..1520 N..) or with screw terminals (ref. ..1521..). The supporting frame, earth protection claws and claw screws are integrated into the earthing contact.

Advantages

This socket outlet combines compact dimensions (1 module) with a durable thermoplastic housing and compatibility with standard Type F wiring. It accommodates both screwless and screw-type terminal connections and integrates the supporting frame and earthing components to simplify installation and ensure reliable protective earthing.

Suitable for

Key specifications

How to use

Switch off the mains supply before installation. Mount the socket outlet into the appropriate flush-mounted box and connect the live, neutral and earth conductors according to local wiring regulations. For the screwless variant, insert conductors up to 2.5 mm² into the terminal openings until secure; for the screw terminal variant, tighten the terminal screws to the specified torque. Reassemble the cover and restore power after verifying correct connections.

Recommendations

Use the screwless variant when quick installation or frequent wire changes are anticipated; choose the screw terminal variant when a mechanical screw connection is preferred. Marking options such as "Nur für EDV", "ZSV" or "SV" are available at extra cost (Art.-Nr.: ..1520.. EDV, ..1520.. ZSV, ..1520.. SV).
