Toma de pared IEC / F DeLOCK 90828 blanco 75 Ω recta

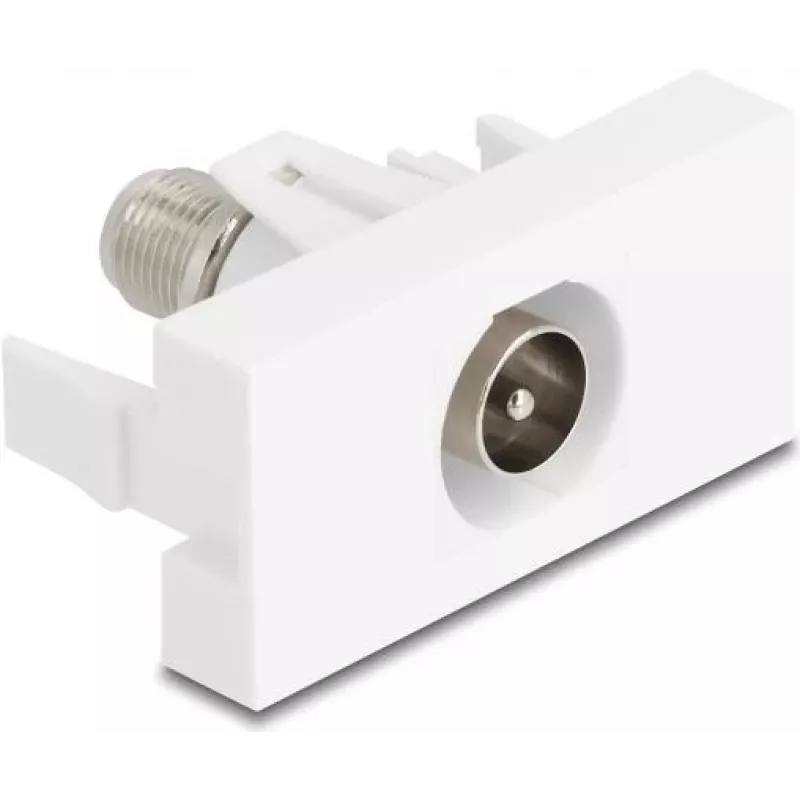

The DeLOCK 90828 socket-outlet is a straight IEC / F connector designed for installations that require a compact, reliable 75 Ω interface. Finished in white, the outlet measures 22.5 mm in width and 45 mm in depth, providing a low-profile solution for wall plates, patch panels or equipment housings where a standard IEC / F female connection is required. The connector body and contact geometry are engineered to maintain signal integrity for RF and video applications that use 75-ohm cabling.

Advantages

This straight socket-outlet offers a standardized 75 Ω impedance for predictable signal performance and reduced reflections. Its compact dimensions allow installation in constrained spaces and multi-gang plates. The white finish integrates visually with many interior and equipment designs. The fixed straight form factor simplifies cable routing and provides a consistent mating interface for IEC / F male plugs.

Key specifications

How to use

Install the socket-outlet into a compatible wall plate, panel or enclosure cut-out sized for the product dimensions. Secure the unit according to the mounting method of the plate or panel, then attach the IEC / F male cable connector by aligning and pressing it into the socket until it seats. Ensure that the mating cable and connected equipment are rated for 75 Ω systems to maintain correct impedance matching and minimize signal loss. For access panels, allow the specified depth clearance to avoid stress on the connector and cable bend points.

Recommendations

For best signal quality, use quality 75 Ω coaxial cables and maintain minimal cable bends near the connector. Check that connections are clean and free of corrosion; periodic inspection in high-humidity or dust-prone environments is advised to sustain long-term performance.
