Toma SCHUKO JUNG A 1520 BF KL CH 16 A 250 V con tapa abatible, termoplástico lacado, serie A, champán

Rated at 16 A and 250 V, this SCHUKO socket outlet from Jung combines a shatterproof hinged lid with a clean Alpine White finish, making it a dependable choice for damp rooms and protected outdoor areas.

Overview

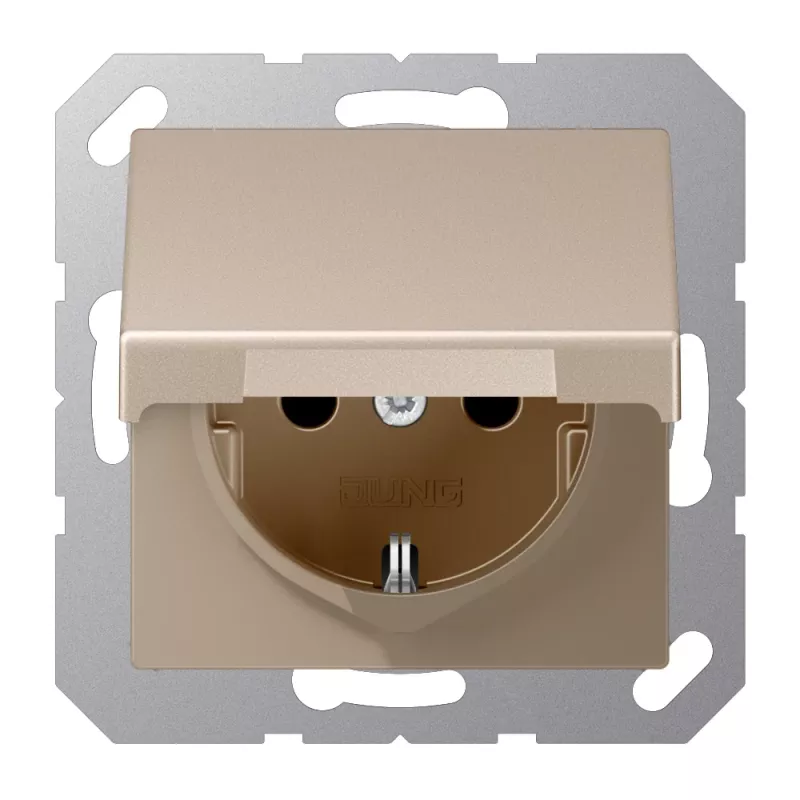

The Jung A1520BFKLCH is a flush-mounted, 1-gang SCHUKO socket outlet with a hinged lid. The lid closes securely to provide IP44 protection against splashing water, while the shatterproof thermoplastic construction withstands everyday knocks. Spring terminals accept conductors from 1.5 to 2.5 mm², and the halogen-free material aligns with modern building requirements.

What stands out

• Hinged lid with IP44 protection when closed
• Shatterproof (bruchsicher) thermoplastic housing
• Spring terminals for fast, tool-free wiring
• Halogen-free and suitable for damp rooms or protected outdoor use
• Compatible with Jung A range frames (A creation, A 500)

Technical details

• Socket standard: SCHUKO (Type F)
• Rated current: 16 A
• Rated voltage: 250 V AC
• Frequency: 50/60 Hz
• Mounting type: Flush-mounted
• Connection type: Spring terminals
• Material: Thermoplastic
• Colour: Alpine White
• IP protection class: IP44 (with lid closed)
• Impact resistance: Shatterproof
• Number of gangs: 1
• Halogen-free: Yes
• Conductor cross-section: 1.5 - 2.5 mm²

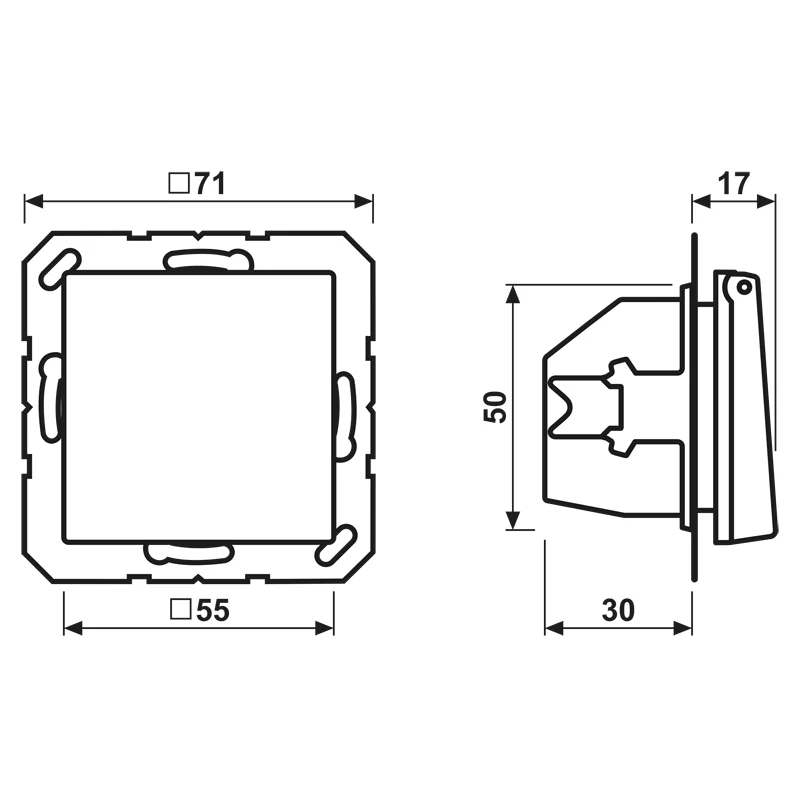

• Installation depth: Approx. 32 mm

Our verdict

A robust, splash-proof SCHUKO outlet that pairs practical protection with a timeless design. The hinged lid and shatterproof build make it a smart upgrade for utility rooms, bathrooms, and covered terraces.
