TP-LINK MC110CS convertidor de medios de fibra 100M, monomodo SC, 20 km

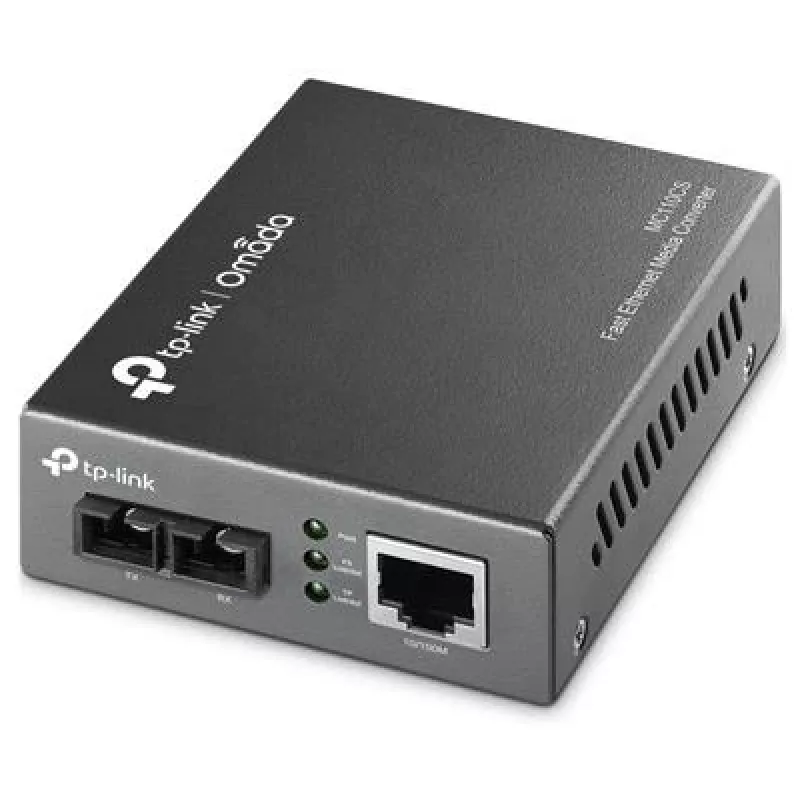

The TP-LINK MC110CS is a high-performance 100M fiber media converter designed to extend Ethernet connections over long distances using single-mode fiber. It converts 10/100Base-TX to 100Base-FX, supporting distances up to 20 km. Ideal for connecting remote networks, it features an SC fiber port and an RJ45 Ethernet port, with LED indicators for easy monitoring.

Advantages

Reliable and cost-effective solution for extending network reach beyond the 100-meter limit of copper Ethernet. Supports full/half-duplex on fiber and auto-negotiation on Ethernet, with Link Fault Pass-through (LFP) for easy troubleshooting. Compact desktop design with external power adapter.

Suitable for

• Connecting remote offices or buildings over single-mode fiber
• Extending network distances up to 20 km
• Integrating fiber optic segments into existing copper Ethernet networks

Key specifications

• Conversion Type: Ethernet to Fiber
• Fiber Type: Single-Mode
• Fiber Connector: SC
• Fiber Wavelength: 1310 nm
• Max Fiber Distance: 20 km
• Ethernet Port: 10/100 Mbps RJ45
• Network Standards: IEEE 802.3i, 802.3u, 802.3x
• Fiber Standard: IEEE 802.3u 100Base-FX
• Duplex: Full/Half-Duplex (Fiber), Auto-negotiation (Ethernet)
• LFP: Supported
• Power: External DC 9V/0.6A
• LEDs: PWR, Link/Act (Fiber), Link/Act (RJ45)
• Operating Temperature: 0°C to 40°C
• Mounting: Desktop

Recommendations

For optimal performance, use with single-mode fiber patch cables (SC connectors) and ensure proper power supply. Suitable for indoor use only.
