Adaptador PoE TP-Link POE370S 10 Gigabit Ethernet

TP-LINK POE370S is a Power over Ethernet (PoE) injector compliant with IEEE 802.3at designed to deliver data and up to 30 W of power over a single Ethernet cable to one powered device. The device enables installation of network equipment such as wireless access points, IP cameras or VoIP phones in locations without a nearby power outlet. The unit has a compact black housing and is intended for inline power insertion between a switch and a powered device.

Advantages

The injector provides up to 30 W of power while maintaining Ethernet data transmission, supports the 802.3at standard for compatibility with a wide range of powered devices, and offers short-circuit protection to help safeguard connected equipment. Its plug-and-play design requires no configuration and the small footprint simplifies installation in constrained spaces.

Suitable for

• Powering a single 802.3at-compatible access point
• Supplying power to an IP surveillance camera where mains power is not available
• Connecting and powering a VoIP phone using one Ethernet cable

Key specifications

• Power output: up to 30 W (IEEE 802.3at)
• Power consumption: 60 W (input)
• Colour: black
• Physical dimensions: 154.7 × 70 × 42 mm

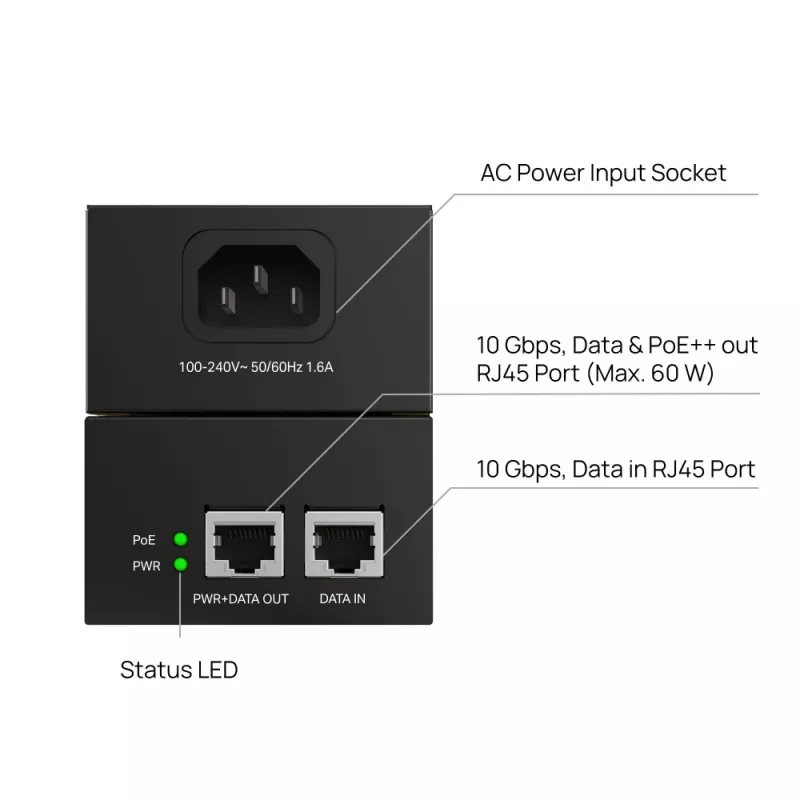

• Port configuration: single power-and-data output plus data input
• Protection: short-circuit protection

How to use

Connect the injector's data input port to a network switch or router using an Ethernet cable and connect the injector's output port to the PoE-compatible device. Plug the injector into mains power. No configuration is required; once powered, the injector will insert power onto the cable and provide data pass-through to the connected device.

Recommendations

Use a high-quality shielded or unshielded Cat5e or higher Ethernet cable for reliable power and data transmission, ensure the powered device is IEEE 802.3at compatible, and avoid exceeding the 30 W power delivery limit to prevent overload. Install the injector in a dry, ventilated location away from direct heat sources.
