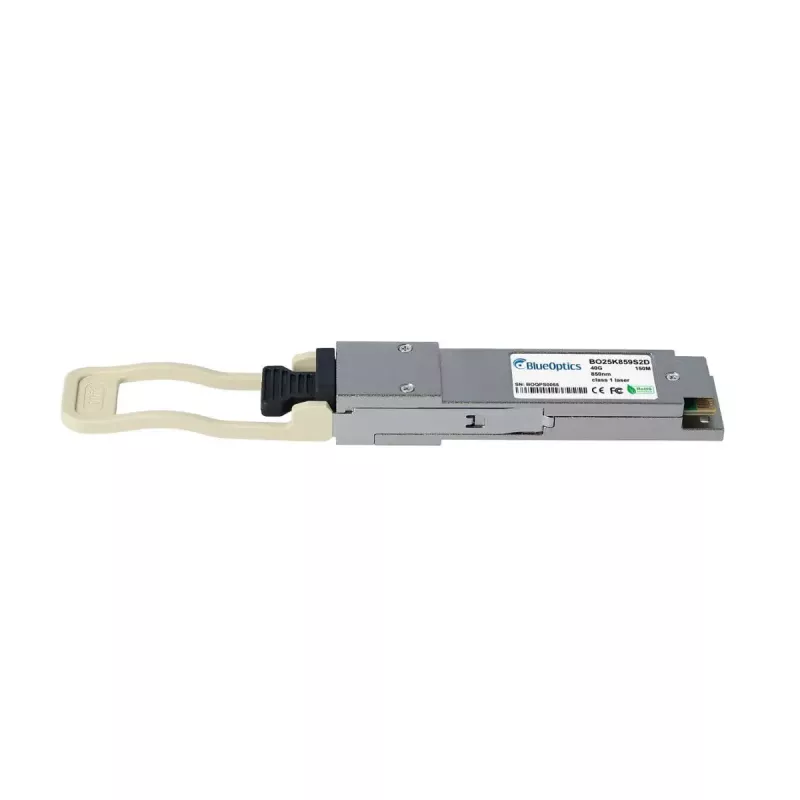

Transceptor 40G QSFP BlueOptics 40G-QSFP-SR4-INT-EN-BO 40 Mbit/s 918 nm

The BlueOptics 40G-QSFP-SR4-INT-EN-BO is a metal QSFP fiber-optic transceiver designed for short-reach multimode links. It provides a QSFP interface, supports a maximum data transfer rate of 40 Mbit/s and operates at a wavelength of 918 nm. The module requires a 3.3 V input voltage, has a mean time between failures (MTBF) of 1,000,000 hours and weighs approximately 20 g, making it a compact option for high-density network environments.

Advantages

This transceiver is constructed with a metal housing for mechanical stability and thermal dissipation. Its QSFP interface allows efficient aggregation and high-density port configurations. With an MTBF of 1,000,000 hours and the use of high-quality components, the module is intended to deliver long operational life and reduced maintenance cycles. The compact weight and standard electrical requirements make the unit easy to integrate into existing networking hardware that supports QSFP form-factor modules.

Suitable for

• Short-reach multimode fiber connections in data center uplinks and switch interconnects
• High-density network equipment with QSFP ports
• Applications requiring compact, metal-housed pluggable optics

Key specifications

• Interface: QSFP
• Maximum data transfer rate: 40 Mbit/s
• Operating wavelength: 918 nm
• Housing material: Metal
• Input voltage: 3.3 V
• Mean time between failures (MTBF): 1,000,000 hours
• Weight: 20 g

How to use

Install the BlueOptics QSFP transceiver into a compatible QSFP slot on networking equipment, ensuring the host device supports the QSFP form factor and the module's electrical requirements. Connect appropriate multimode fiber patch cords (MPO/MTP where applicable) between transceivers or patch panels, following standard fiber handling and cleanliness procedures. Verify link status and configuration through the host device software and ensure any required digital diagnostics support is enabled on compatible hardware.

Recommendations

To maintain signal quality and module longevity, use clean connectors and fiber cables rated for the intended short-reach application, observe manufacturer guidelines for insertion/removal, and ensure the host device supports the QSFP transceiver’s diagnostic and electrical specifications.
