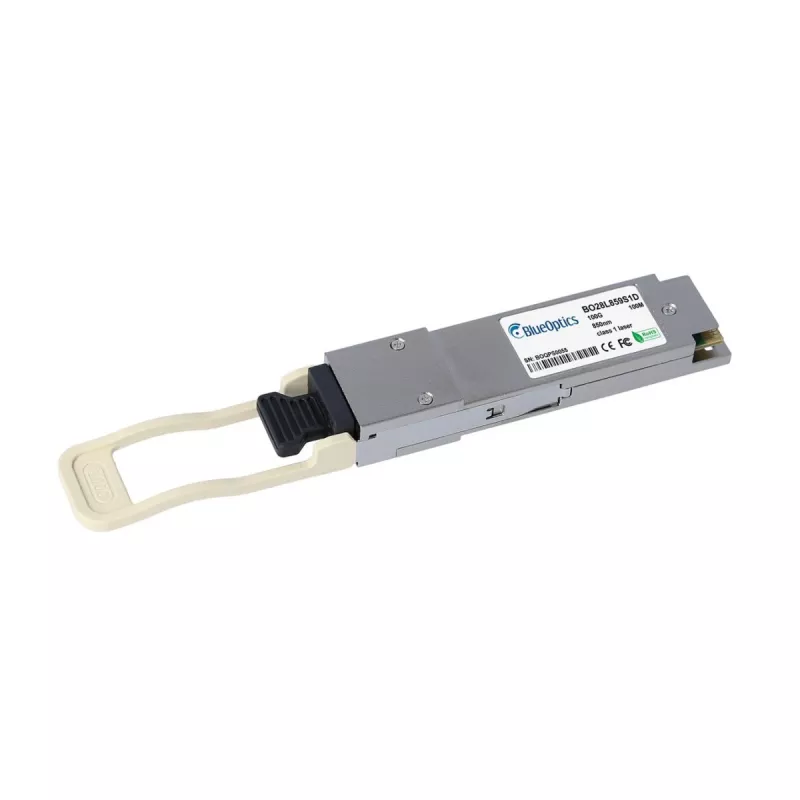

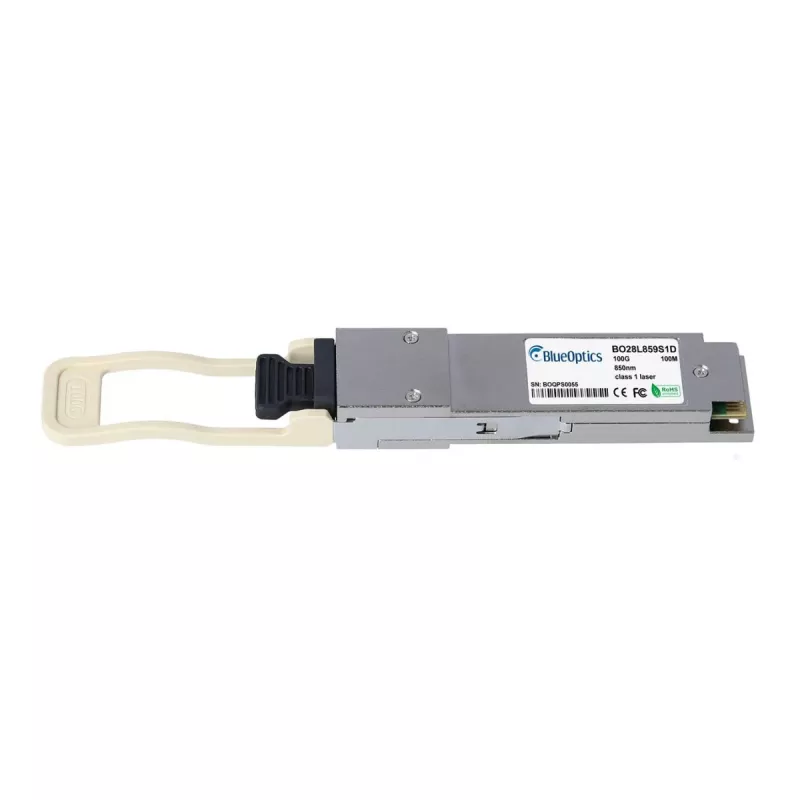

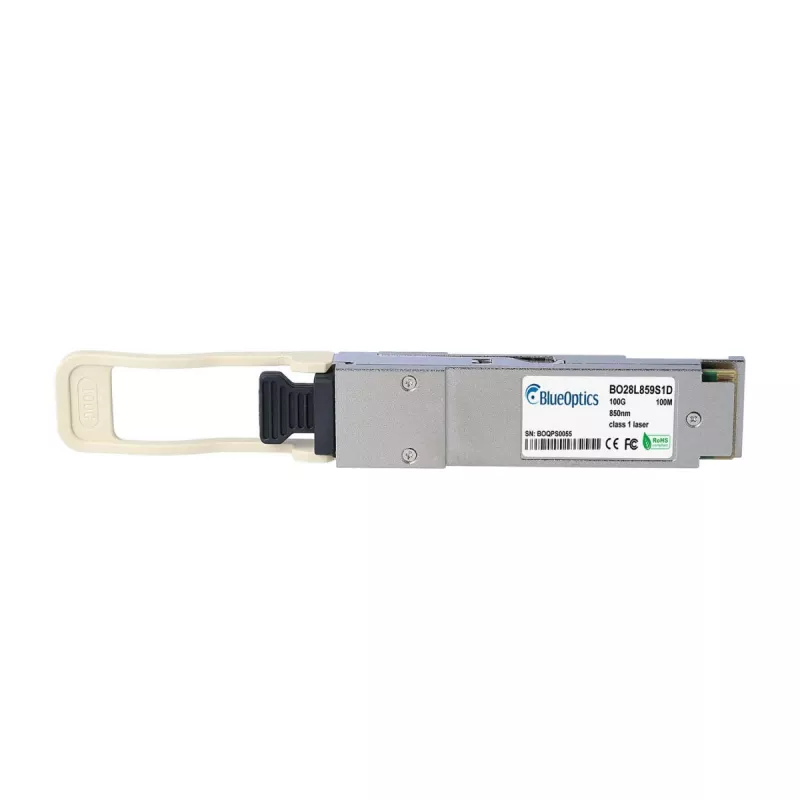

Transceptor BlueOptics 100G QSFP28 SR4 BO28L859S1D compatible con Ruckus

The BlueOptics BO28L859S1D is a high-performance 100G QSFP28 transceiver designed for compatibility with Ruckus 100G-QSFP28-SR4 interfaces. It enables 100 Gigabit Ethernet connectivity over multi-mode fiber (MMF) using 850 nm VCSEL technology, supporting data rates up to 100 Gbps. This hot-pluggable module is ideal for data center interconnects and high-performance computing environments.

Advantages

This transceiver offers seamless integration into existing Ruckus networks, providing reliable 100G connectivity with low power consumption under 3.5 W. Its MPO/MTP connector simplifies high-density cabling, and full DDM/DOM support allows real-time monitoring of optical parameters. The commercial-grade operating temperature range (0°C to 70°C) ensures stable performance in standard data center conditions.

Suitable for

• Data center interconnects requiring 100G links over multi-mode fiber
• High-performance computing (HPC) clusters
• Enterprise network upgrades to 100 Gigabit Ethernet
• Ruckus networking equipment with QSFP28 ports

Key specifications

• Transceiver Type: QSFP28
• Data Rate: 100 Gbps
• Optical Standard: 100GBASE-SR4
• Wavelength: 850 nm
• Max Reach (OM4 MMF): 100 m
• Max Reach (OM3 MMF): 70 m
• Connector Type: MPO/MTP (12-fiber)
• Fiber Type: Multi-mode Fiber (MMF)
• DDM/DOM Support: Yes
• Power Consumption: < 3.5 W
• Operating Temperature: 0°C to 70°C
• Compatibility: Ruckus 100G-QSFP28-SR4 and MSA Compliant
• Hot-Pluggable: Yes
• Compliance: IEEE 802.3bm, SFF-8665, SFF-8636, RoHS
• Transmitter Type: VCSEL Array
• Receiver Type: PIN Array
• Electrical Interface: 4x 25Gbps NRZ
• Housing Material: Metal

Recommendations

For optimal performance, use with OM4 multi-mode fiber and ensure proper MPO connector cleaning. This transceiver is a cost-effective alternative to OEM modules, offering full compatibility and reliability.
