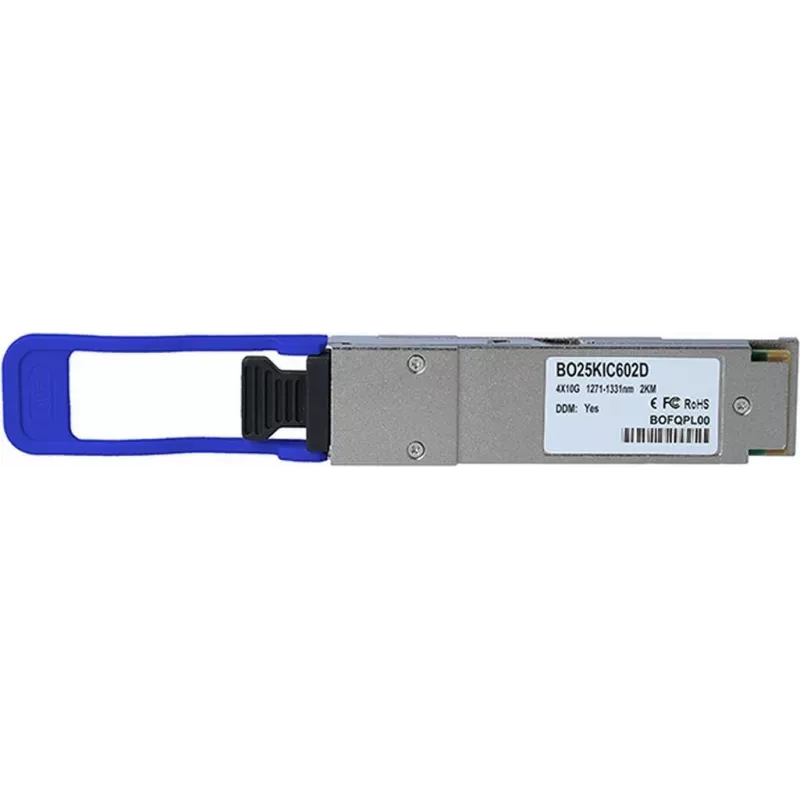

Transceptor BlueOptics BO25KIC602D-BO QSFP 40GBASE-LX4, LC-Duplex, 160m OM4 / 2km SMF, 4xWDM, 0-70°C, DDM

High-density 40 Gigabit Ethernet links over existing multimode fiber often stop at 150 meters—until now. The BlueOptics BO25KIC602D-BO QSFP transceiver extends 40GBASE-LX4 connectivity to 160 meters on OM4 multimode fiber, and up to 2 kilometers on single-mode fiber, using a single LC-Duplex connector. Its 4-channel WDM design multiplexes four 10G wavelengths onto one fiber pair, eliminating the need for MPO/MTP cabling and enabling smooth upgrades from 10G to 40G in enterprise and data center networks.

Who is it for

Network engineers and data center operators who need cost-effective 40G links over existing duplex fiber infrastructure. Ideal for campus backbones, server-to-switch connections, and short-reach interconnects where MPO cabling is impractical or too expensive.

Main features

• 40GBASE-LX4 QSFP transceiver with LC-Duplex connector
• Reach: 160 m on OM4 multimode fiber, 2 km on single-mode fiber
• 4-channel WDM (Wavelength Division Multiplexing) technology
• Operating temperature range: 0°C to +70°C
• Digital Diagnostic Monitoring (DDM) for real-time monitoring
• Hot-swappable, compliant with IEEE 802.3ba

Specifications

• Form Factor: QSFP
• Data Rate: 40 Gbps
• Connector: LC-Duplex
• Fiber Type: OM4 Multimode / Single-mode
• Max Reach: 160 m (OM4), 2 km (SMF)
• Wavelength Technology: 4xWDM
• Operating Temperature: 0°C to +70°C
• DDM: Yes
• Power Supply Voltage: 3.3 V
• Compliance: IEEE 802.3ba

Tips

For multimode installations, use OM4 fiber to achieve the full 160-meter reach. Ensure your switch or router supports QSFP ports and 40GBASE-LX4 standard. DDM allows proactive monitoring of optical parameters to prevent downtime.
