Transceptor BlueOptics QSFP28 100GBASE-SR4 100m MPO/MTP compatible con Finisar FTLC9551REPM

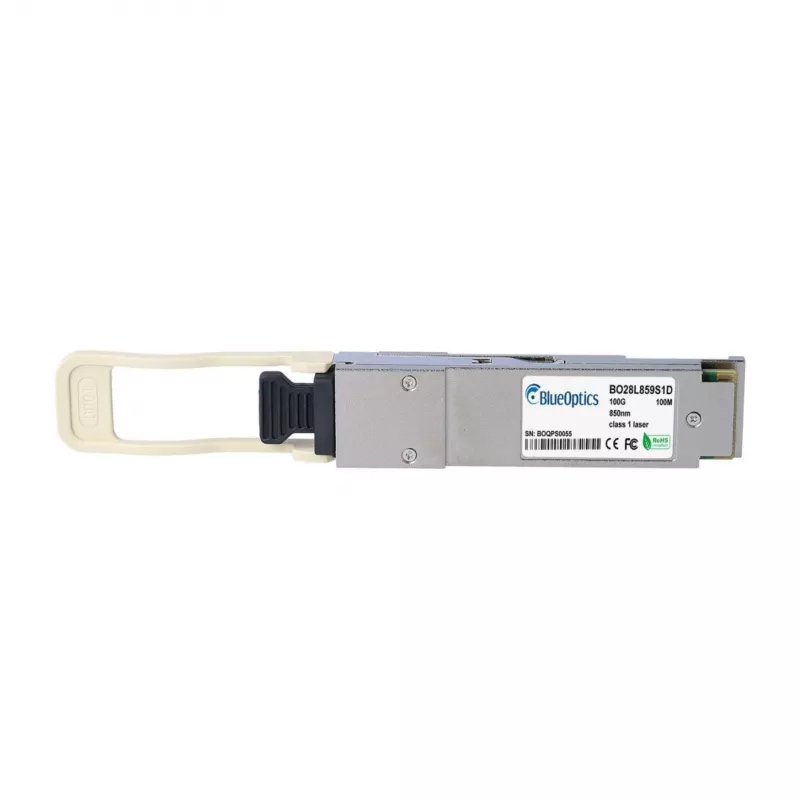

The BlueOptics BO28L859S1D is a high-performance QSFP28 transceiver module designed for 100 Gigabit Ethernet applications. It is fully compatible with Finisar FTLC9551REPM and offers reliable, hot-pluggable connectivity for data centers and enterprise networks. This module supports 100GBASE-SR4 over multi-mode fiber with MPO/MTP-12 connectors, delivering up to 100m on OM4 fiber and 70m on OM3 fiber.

Advantages

Cost-effective alternative to OEM modules with guaranteed compatibility and performance. Low power consumption under 3.5W reduces energy costs. Hot-pluggable design simplifies installation and maintenance. Supports DDM/DOM for real-time monitoring of optical parameters.

Suitable for

• Data center interconnects
• Enterprise network aggregation
• High-performance computing clusters
• 100 Gigabit Ethernet switches and routers

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps (4x 25Gbps NRZ)
• Protocol: 100GBASE-SR4
• Wavelength: 850 nm
• Max Distance: 100m (OM4), 70m (OM3)
• Connector: MPO/MTP-12 (Female)
• Fiber Type: Multi-mode Fiber (MMF)
• DDM/DOM: Yes
• Power Consumption: < 3.5 W
• Operating Temperature: 0°C to 70°C
• Compliance: IEEE 802.3bm, SFF-8665, SFF-8636
• Laser Type: VCSEL
• Supply Voltage: 3.3 V

Recommendations

For optimal performance, use with OM4 or OM3 multi-mode fiber cables terminated with MPO/MTP connectors. Ensure your switch or router supports QSFP28 modules and 100GBASE-SR4 standard.
