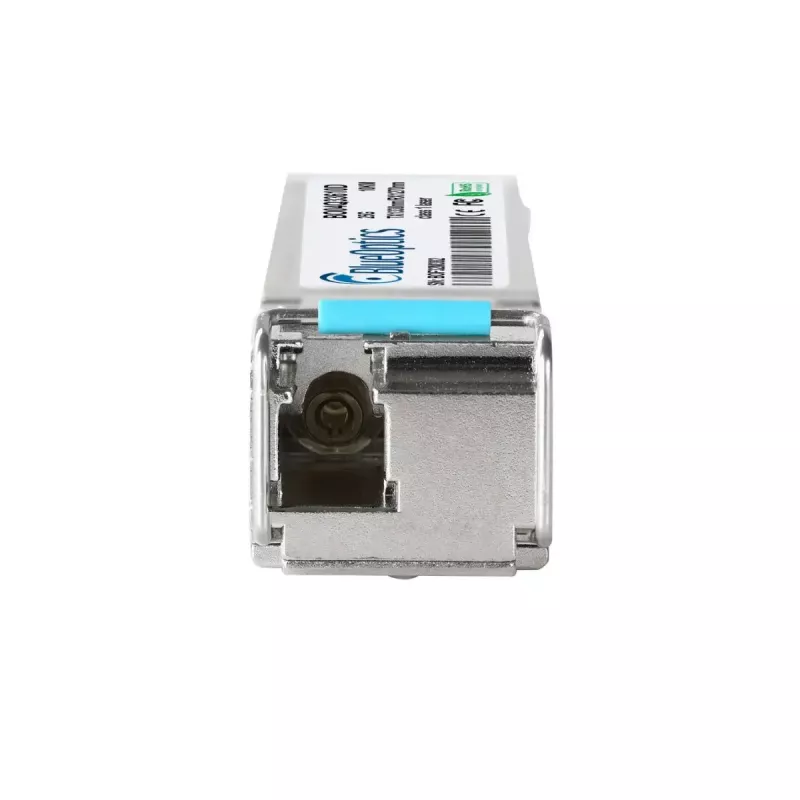

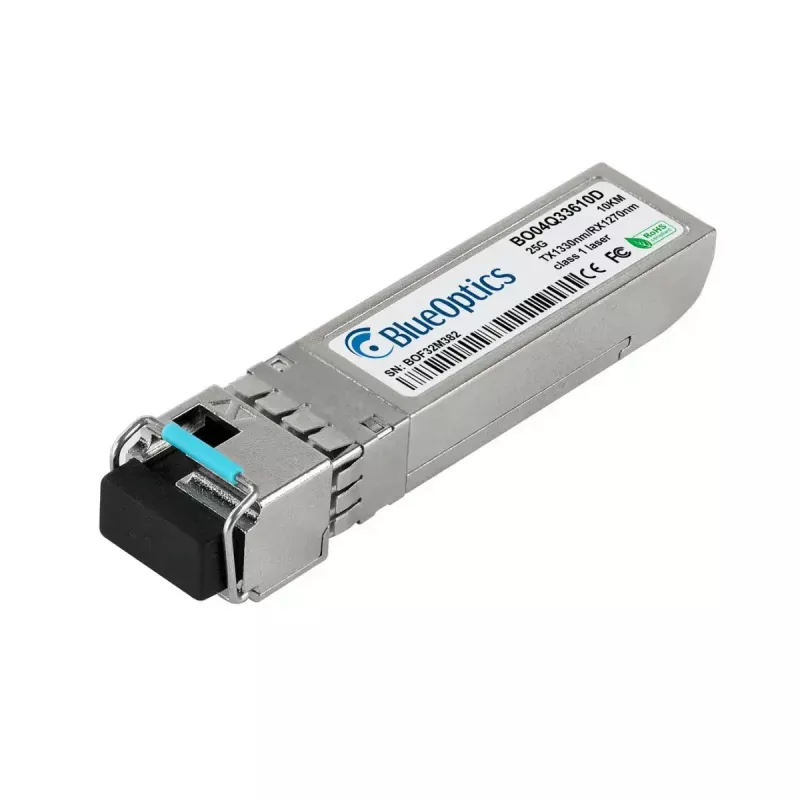

Transceptor de fibra óptica BlueOptics SFP28 SFP-10/25G-BXD-BO 25 Gbit/s LC 1330 nm

The BlueOptics SFP-10/25G-BXD-BO is a single-channel SFP28 fiber optic transceiver designed for 25GBASE-BX-D links. It uses an LC simplex connector and supports bidirectional transmission over a single singlemode fiber with a transmitter wavelength of 1330 nm and a receiver wavelength of 1270 nm. The module complies with MSA mechanical and electrical specifications and is intended as a compatible alternative for Cisco hardware that accepts SFP28 25GBASE-BX-D transceivers.

Advantages

This BlueOptics SFP28 module provides 25 Gbit/s data throughput in an SFP28 form factor and includes digital diagnostic monitoring (DDM/DOM) for real-time operational parameters such as supply voltage, laser current, optical transmit/receive power and temperature. The transceiver is built from industry-standard components and tested for compatibility with common Cisco platforms. It is compact, lightweight and rated for long service life with an MTBF around 3,000,000 hours.

Suitable for

When it may not be suitable

This SFP28 module is intended for singlemode LC simplex fiber and bidirectional operation using 1330 nm transmit / 1270 nm receive wavelengths. It is not suitable for multimode fiber environments or applications that require different wavelengths, connectors or multimode transceivers. Also ensure the host device supports SFP28 25GBASE-BX-D modules and, if you need remote diagnostics, that the platform supports DDM/DOM.

Key specifications

How to use

Insert the SFP28 transceiver into an SFP28-compatible slot on your switch, router or other network device, taking electrostatic discharge precautions. Connect an LC simplex singlemode patch cable between the module and the remote transceiver; note that the module transmits at 1330 nm and receives at 1270 nm, so the opposite-direction module must be installed at the remote end. Verify link status on the host device and, if available, read DDM/DOM values via the management interface to monitor optical power, supply voltage and temperature.

What to consider before purchase

Recommendations

Use high-quality singlemode LC patch cables and, when possible, test end-to-end optical power and link stability after installation. Enable and monitor DDM/DOM on compatible hardware to simplify troubleshooting and ongoing maintenance.
