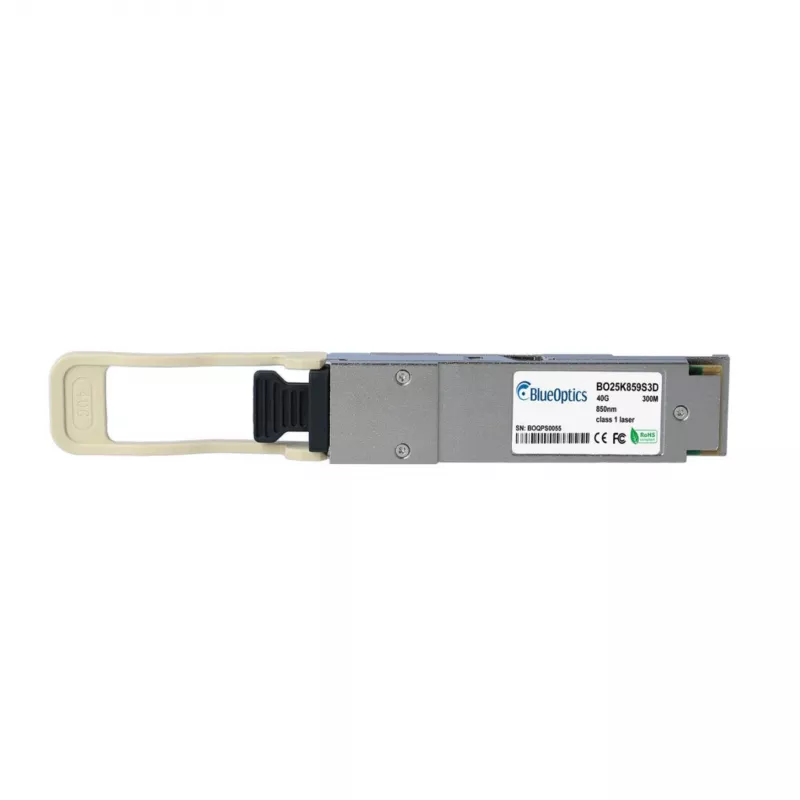

Transceptor QSFP+ BlueOptics BO25K859S3D compatible con Ruckus E40G-QSFP-eSR4

The BlueOptics BO25K859S3D is a high-performance QSFP+ transceiver designed for compatibility with Ruckus E40G-QSFP-eSR4 equipment. It delivers 40 Gbps data rates over multi-mode fiber using 850 nm VCSEL technology, ideal for data center and enterprise networks.

Advantages

This transceiver offers reliable 40 Gigabit Ethernet connectivity with low power consumption under 1.5 W. It supports Digital Diagnostic Monitoring (DDM/DOM) for real-time performance monitoring and is hot-pluggable for easy installation. MSA compliant ensures interoperability with a wide range of networking equipment.

Suitable for

• Data center interconnects requiring high bandwidth
• Enterprise network uplinks and aggregation
• High-performance computing (HPC) environments
• Ruckus E40G-QSFP-eSR4 compatible switches and routers

Key specifications

• Transceiver Type: QSFP+
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-eSR4
• Wavelength: 850 nm
• Connector Type: MPO/MTP (12-fiber)
• Max Reach (OM3 Fiber): 300 m
• Max Reach (OM4 Fiber): 400 m
• Fiber Type: Multi-mode Fiber (MMF)
• DDM/DOM Support: Yes
• Hot-Swappable: Yes
• Power Consumption (Max): < 1.5 W
• Operating Temperature Range: 0°C to 70°C
• Compliance: MSA Compliant, RoHS, CE, FCC

Recommendations

For optimal performance, use with OM4 multi-mode fiber and ensure proper MPO connector alignment. This transceiver is a cost-effective alternative to OEM modules, backed by BlueOptics quality and warranty.
