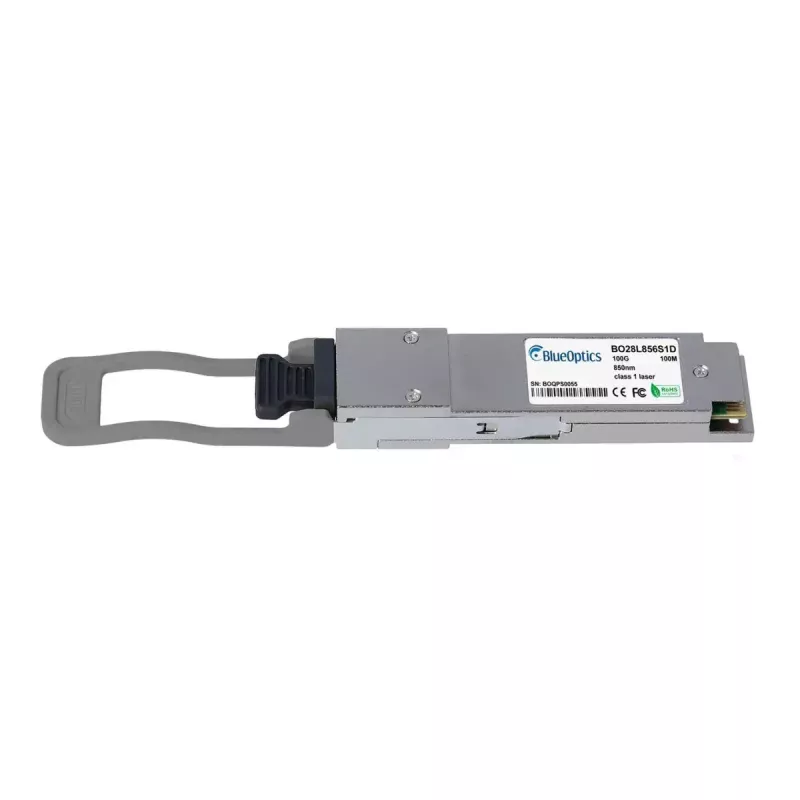

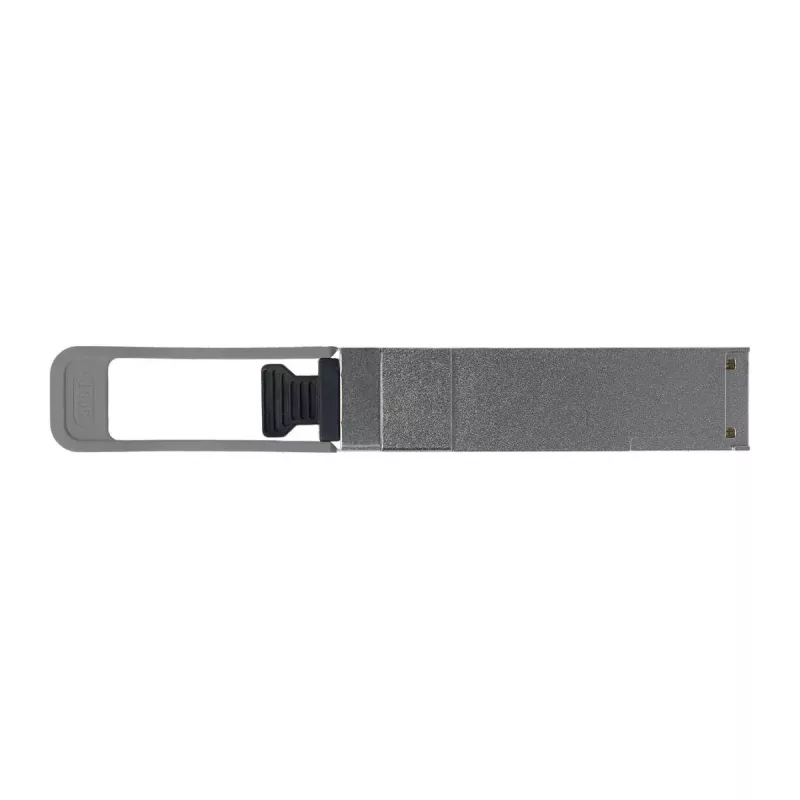

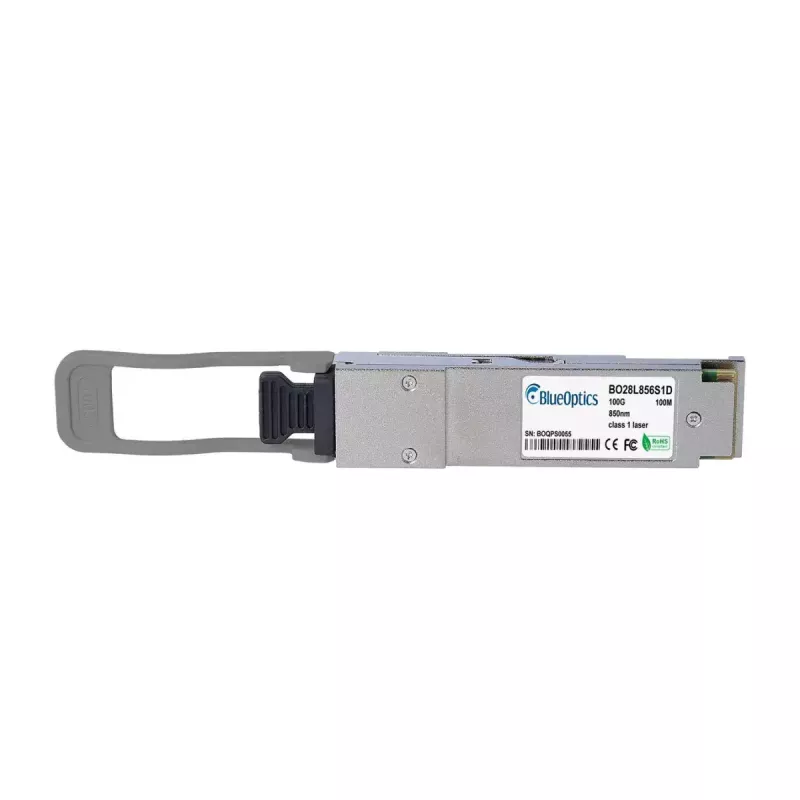

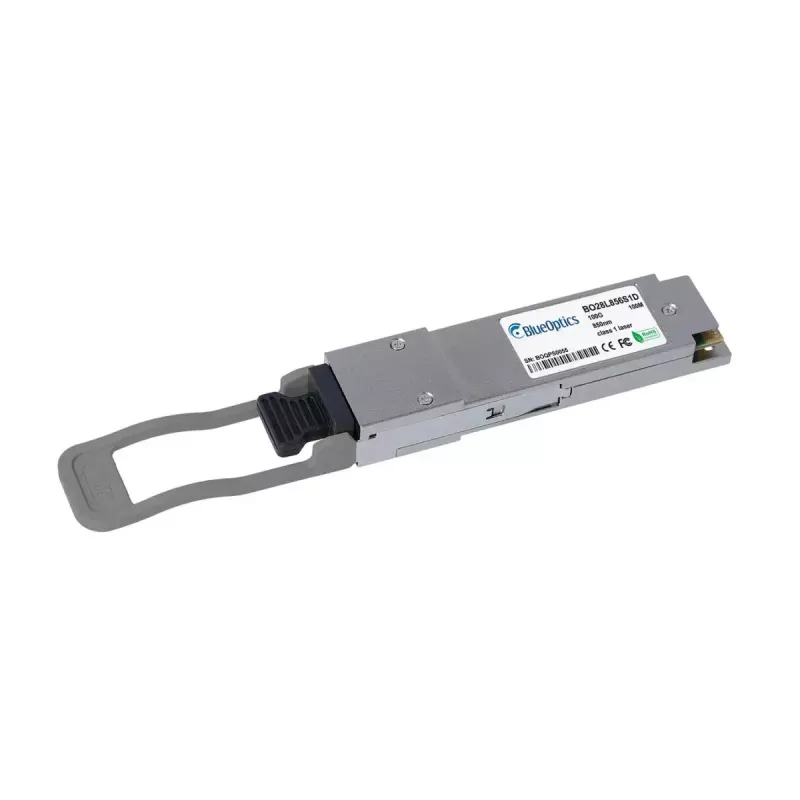

Transceptor QSFP28 BlueOptics QSFP28-100G-BIDI-BO fibra óptica LC

The BlueOptics QSFP28-100G-BIDI-BO is a QSFP28 fiber optic transceiver module for 100G data links. It uses a QSFP28 interface with LC duplex connectivity and is designed for multimode fiber applications. The module implements bidirectional transmission on a single fiber per direction and supports high-speed Ethernet and Fibre Channel over Ethernet applications up to 100 Gbit/s over short-range multimode links. The transceiver is lightweight (approx. 40 g) and follows MSA mechanical and electrical specifications for QSFP28 form factor compatibility.

Advantages

This BlueOptics QSFP28 transceiver provides a compact, industry-standard QSFP28 interface with LC connectorization, enabling straightforward integration into compatible network equipment. The module supports Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of operating parameters, which helps with remote troubleshooting and maintenance. It is manufactured to MSA guidelines and uses quality components suitable for continuous operation in data center environments.

Suitable for

Key specifications

How to use

Install the QSFP28-100G-BIDI-BO into a compatible QSFP28 port according to the host equipment instructions, ensuring the device firmware or software accepts third-party transceivers if required. Connect LC duplex patch cords or appropriate BIDI patching to the corresponding transceiver on the remote side. Observe ESD precautions during handling. Verify link status and monitor operating parameters through the host system or the transceiver’s DDM functions to confirm correct operation.

Recommendations

For optimum performance, use matched multimode LC patch cords and ensure the host platform supports 100G QSFP28 BIDI modules and DDM/DOM monitoring. Maintain clean connectors and follow manufacturer guidance for operating temperature and mounting procedures.
