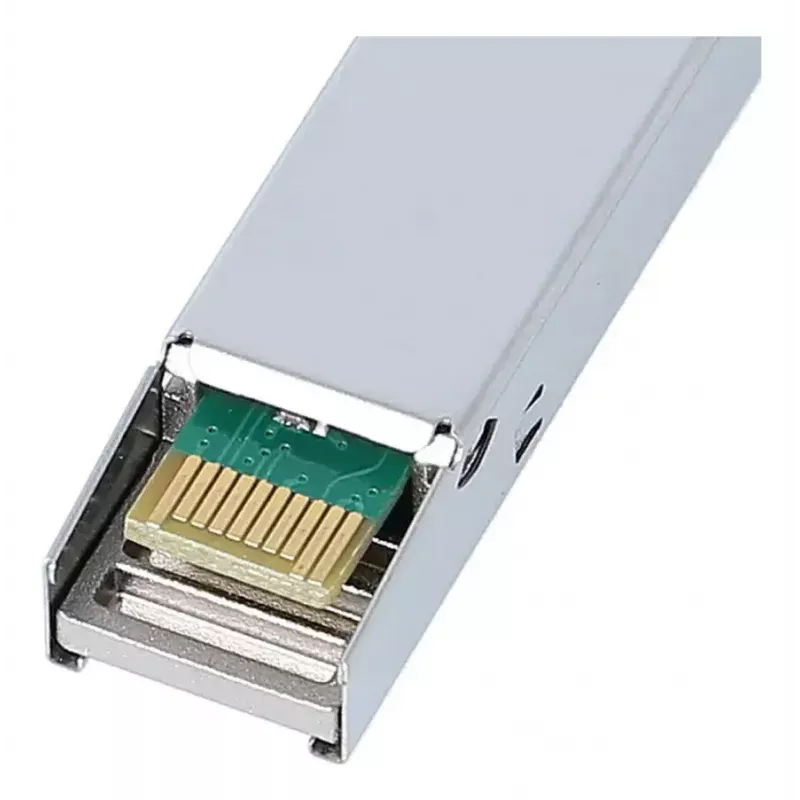

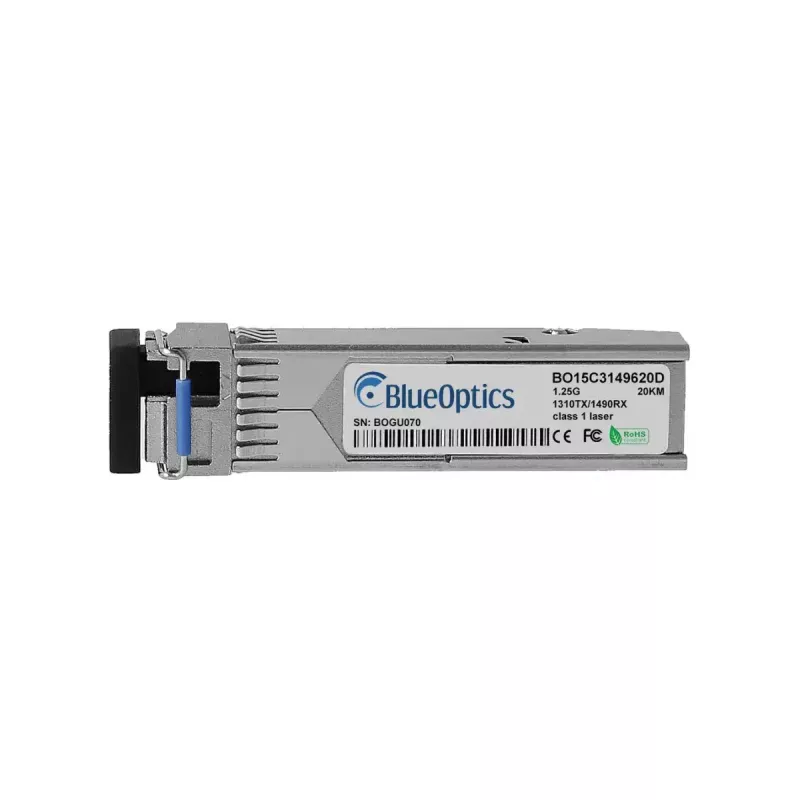

Transceptor SFP BlueOptics JMEP01B1U11-BO 1250 Mbit/s fibra óptica

The BlueOptics JMEP01B1U11-BO SFP transceiver is a fiber optic module designed for single-fiber 1000BASE-BX-U links with LC Simplex connection. It supports up to 1250 Mbit/s data rate and provides separate transmit (1310 nm) and receive (1490 nm) wavelengths on one fibre, following MSA interoperability standards. The module is lightweight (approx. 20 g), finished in silver, and is manufactured with an emphasis on compatible components and long operational lifetime, making it suitable for use in common network platforms that accept SFP modules.

Advantages

The transceiver offers MSA-compliant mechanical and electrical interfaces for broad compatibility with switches, routers, storage devices and measurement equipment. It features support for Digital Diagnostics Monitoring (DDM/DOM) so that operational parameters such as supply voltage, laser bias current, transmitted and received optical power and temperature can be read in real time when the host hardware supports DDM. Use of high-quality optical and electronic components contributes to a long mean time between failures (MTBF) and stable optical performance over extended service life.

Suitable for

Key specifications

How to use

Install the SFP transceiver into an SFP slot of a compatible switch, router or other network device following the device manufacturer's insertion procedure. Connect an appropriate LC Simplex fiber patch cable between this transceiver and the matching transceiver at the remote end, ensuring correct orientation for the single-fiber transmit/receive wavelengths. Power up the host device and verify link status in the host management interface. If DDM is required, enable or query DDM information through the host system to monitor voltage, laser bias, optical power and temperature.

Recommendations

Use single-mode fiber and LC Simplex patch cables that match the 1000BASE-BX-U optical parameters. Confirm host compatibility with 1000BASE-BX-U and DDM support before installation. Avoid bending the fiber beyond recommended radii and protect connectors from contamination to maintain optimal optical performance and expected MTBF.
