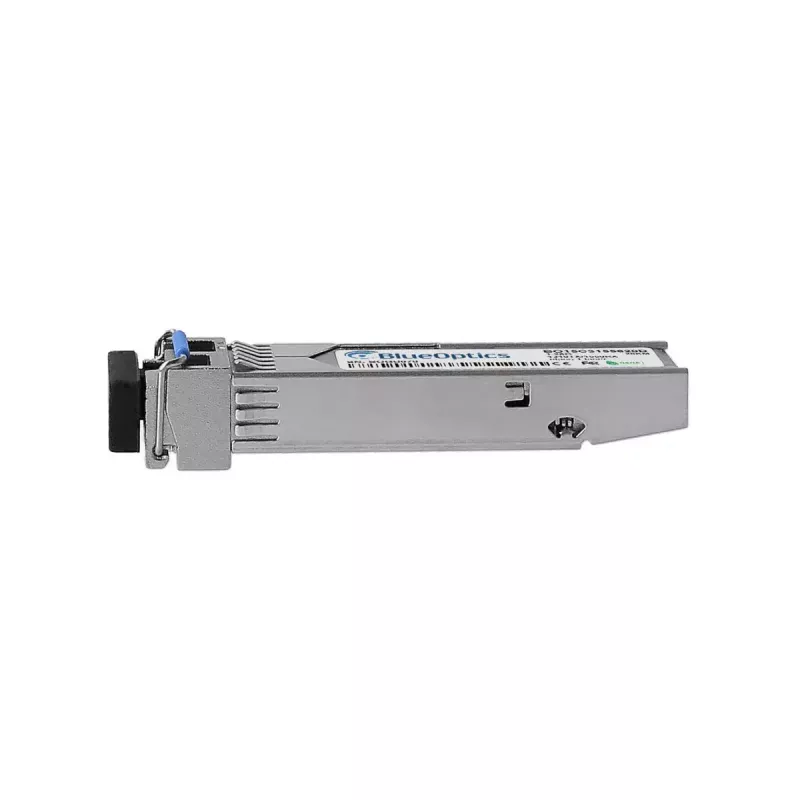

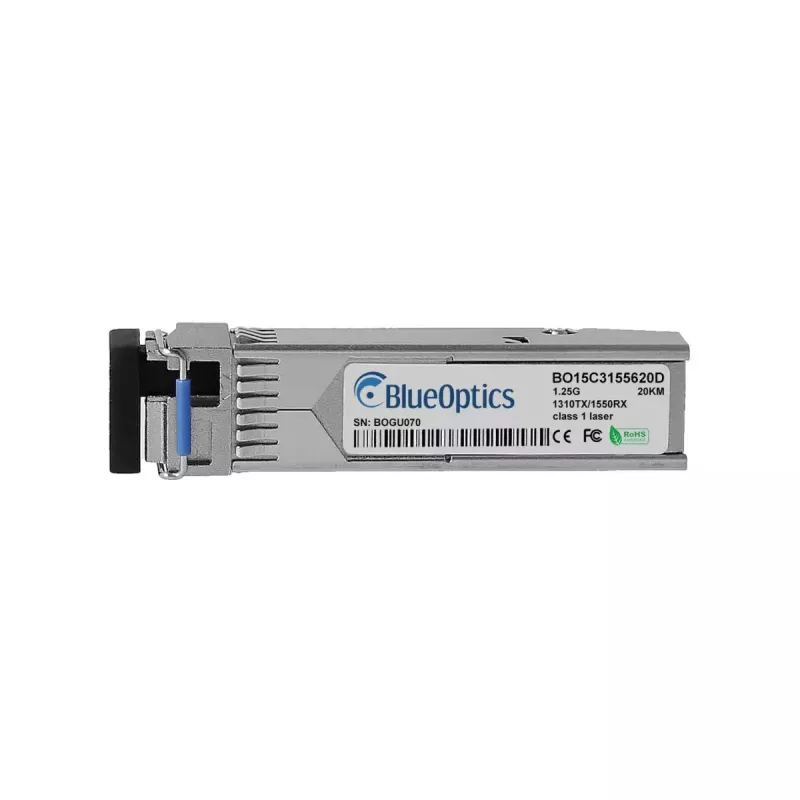

Transceptor SFP BlueOptics MG-1000PU1 V2-BO 1250 Mbit/s

The BlueOptics MG-1000PU1 V2-BO SFP transceiver is a compact fiber optic module designed for 1250 Mbit/s data transmission in 1000BASE-BX-U applications. It uses an LC simplex connector and supports single-fiber bidirectional transmission with a transmitter at 1310 nm and a receiver at 1550 nm. Constructed to MSA standards, the module is compatible with common networking platforms that accept SFP form-factor transceivers and provides an MTBF of approximately 3,000,000 hours. The transceiver weighs 20 g and supports point-to-point links up to 40,000 m over suitable fiber cabling.

Advantages

This SFP transceiver provides stable gigabit-capable optical connectivity in a small SFP package and follows MSA compatibility for broad hardware support. It implements Digital Diagnostics Monitoring (DDM/DOM) for real-time reporting of supply voltage, laser bias current, transmit power, receive power and internal temperature when supported by the host device. The use of high-quality components and industry-standard design contributes to long service life and low failure rates, while the LC simplex connector offers a compact footprint for dense installations.

Suitable for

Key specifications

How to use

Insert the SFP transceiver into an SFP-compatible port on your switch, router or other network device until it latches. Connect an LC simplex fiber patch cable matched to the module's single-fiber bidirectional configuration, ensuring correct orientation for transmit and receive ends. Configure the network device port as required by your network (speed/duplex and any interface settings). If DDM/DOM monitoring is required, enable or consult the host device monitoring interface to read real-time diagnostic values. Follow safe handling practices for optical transceivers: avoid touching the optical interfaces, keep dust caps on when unused, and power down equipment if recommended by the device manufacturer when hot-swapping is not supported.

Recommendations

Use quality single-fiber LC simplex patch cables and verify fiber type and connectors match the transceiver specifications. Confirm host device compatibility and enable DDM/DOM only when the host supports it. For long-distance links, calculate the link budget including fiber attenuation and any connectors or splices to ensure reliable operation up to the indicated maximum distance.
