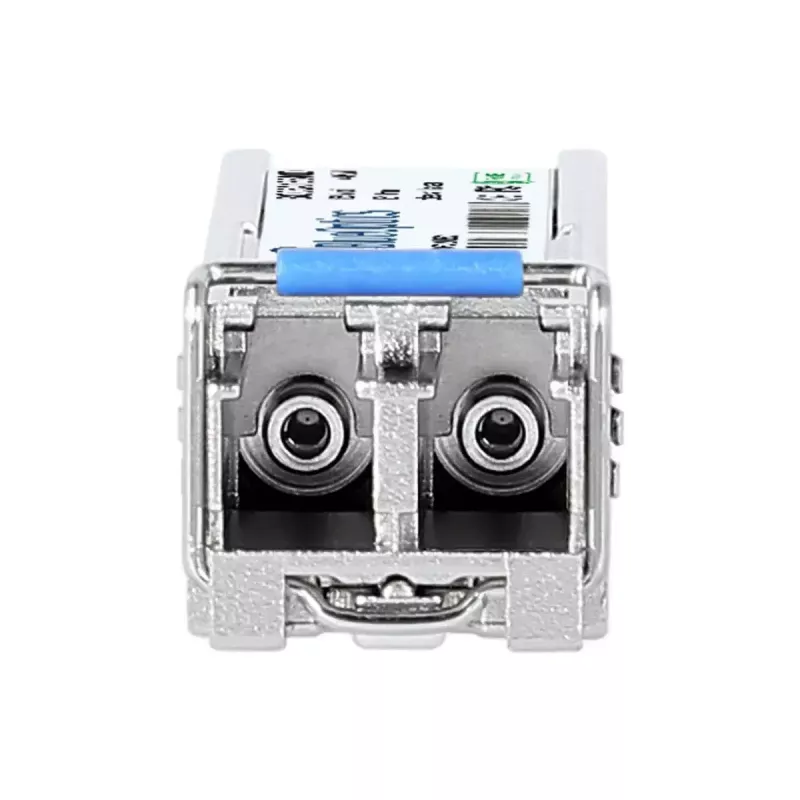

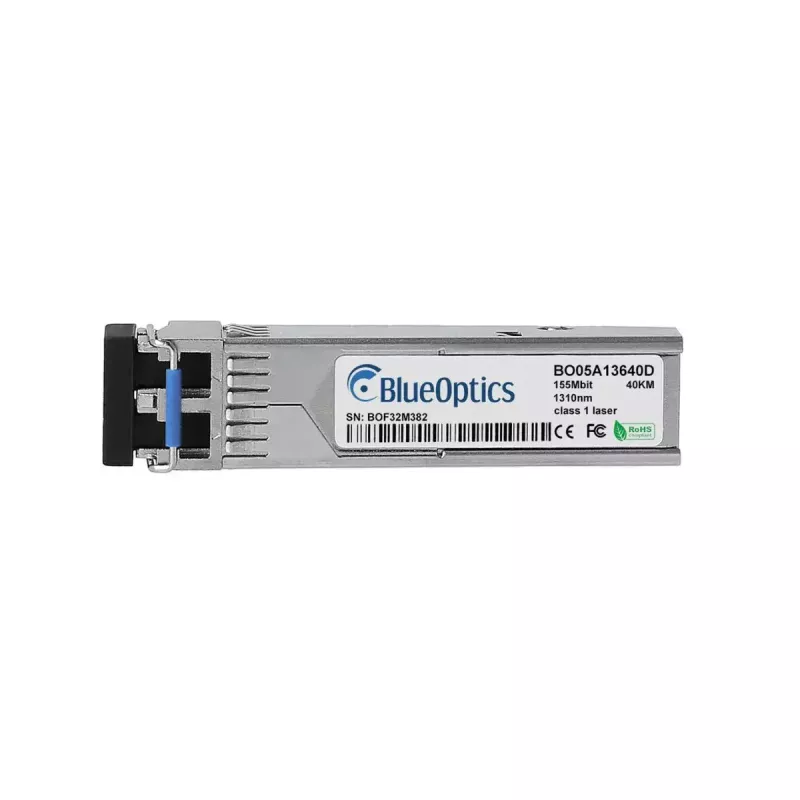

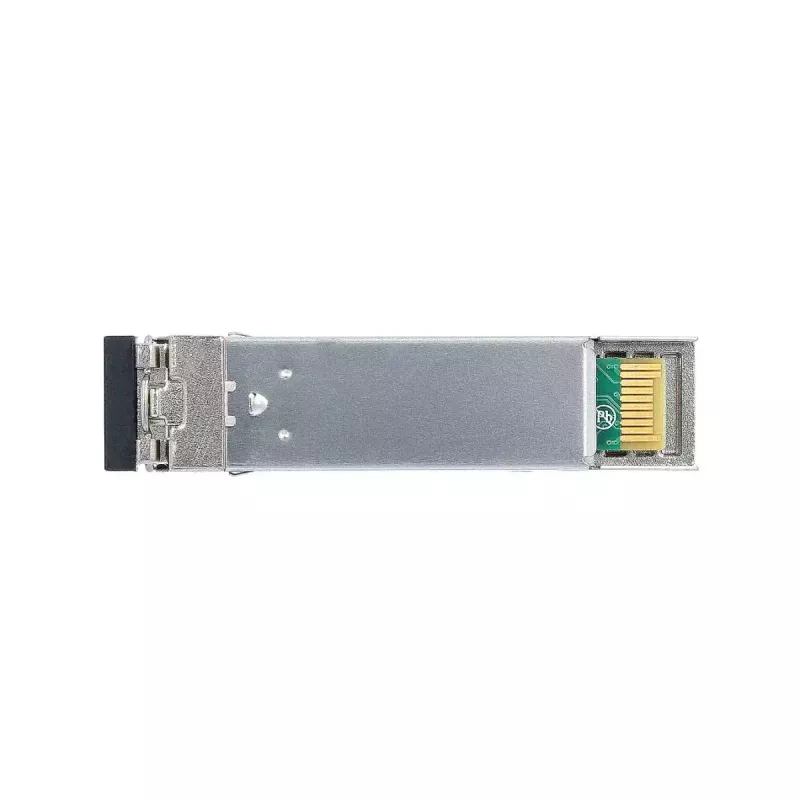

Transceptor SFP BlueOptics SDH155-SFP-LH40-SM1310-BO 155 Mbit/s

The BlueOptics SDH155-SFP-LH40-SM1310-BO is an SFP fiber optic transceiver designed for single-mode links with a maximum data transfer rate of 155 Mbit/s. Housed in an aluminium body and weighing 20 g, this module uses an LC duplex interface and is intended for reliable point-to-point optical connections up to the specified protocol limits. It is supplied as a single unit and fits devices that accept standard SFP modules.

Advantages

This SFP transceiver provides a compact SFP form factor with a single-mode 1310 nm transmitter and receiver optimized for long-haul SDH/SONET and Ethernet applications up to 155 Mbit/s. The aluminium housing offers mechanical protection and thermal dissipation in standard networking environments. Compatibility with MSA-compliant SFP ports ensures straightforward installation in switches, routers and other network equipment that support SFP modules.

Suitable for

• Single-mode optical links using LC duplex connectors
• SDH/SONET and Ethernet applications up to 155 Mbit/s
• Integration into switches, routers, storage systems and other SFP-capable hardware
• Point-to-point connections where a compact SFP module is required

Key specifications

• Interface type: SFP (LC duplex)
• Wavelength: 1310 nm (Tx/Rx)
• Maximum data transfer rate: 155 Mbit/s
• Fiber type: single-mode fiber
• Operating form factor: hot-pluggable SFP
• Material / colour: aluminium housing (aluminium colour)
• Weight: 0.02 kg

How to use

Insert the BlueOptics SFP transceiver into an empty SFP slot of the host device while the device is powered on or off according to the host manufacturer’s guidance. Connect the LC duplex single-mode patch cord to the module’s connector, ensuring correct transmit/receive orientation. Configure the host interface for the appropriate protocol and speed if manual settings are required. Verify link and signal status through the host device management interface or LEDs.

Recommendations

Ensure the host device supports MSA-compliant SFP modules and the intended 155 Mbit/s protocol. Use single-mode fiber patch cords and clean LC connectors before mating. Check the host device documentation for any required firmware or port settings to enable the transceiver and, if available, enable digital diagnostic features on compatible equipment to monitor link parameters.
