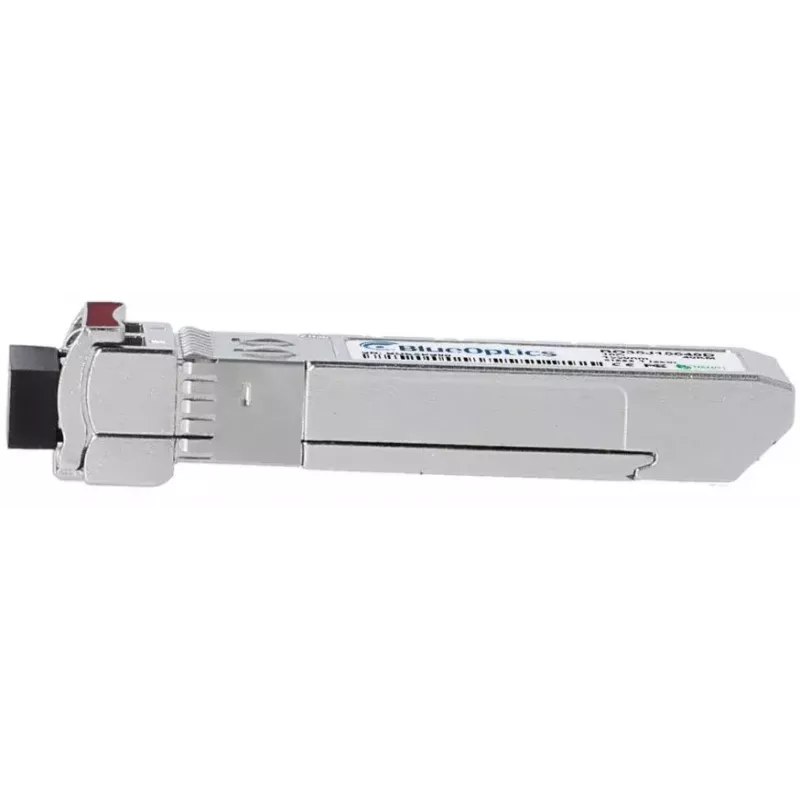

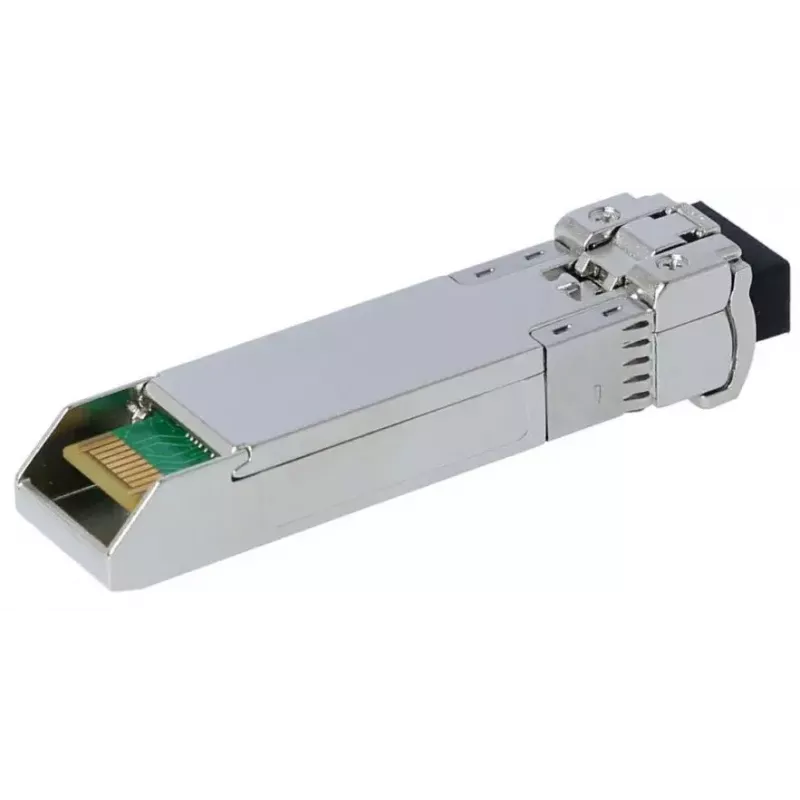

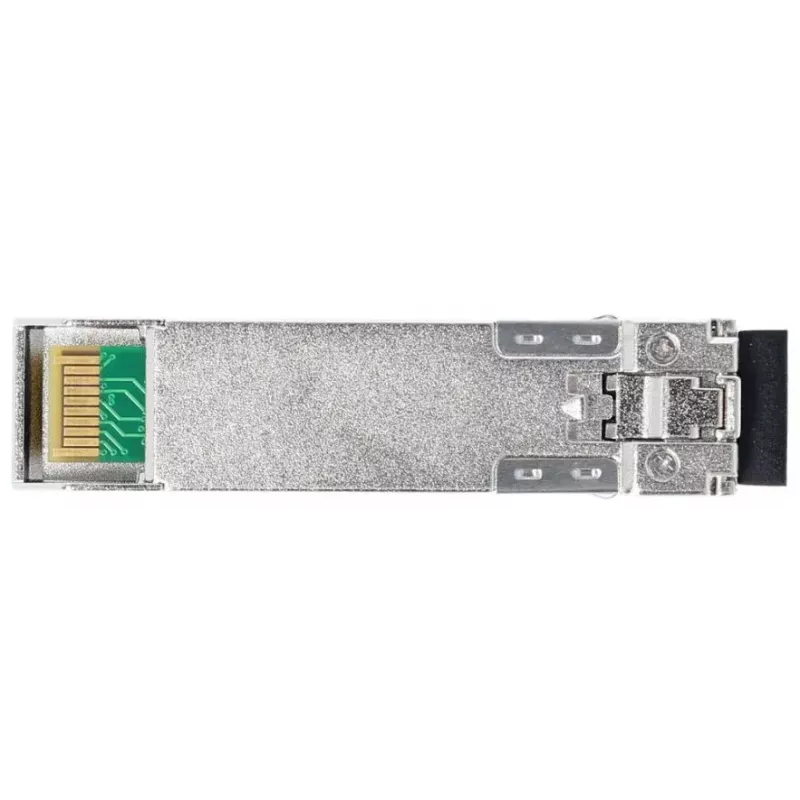

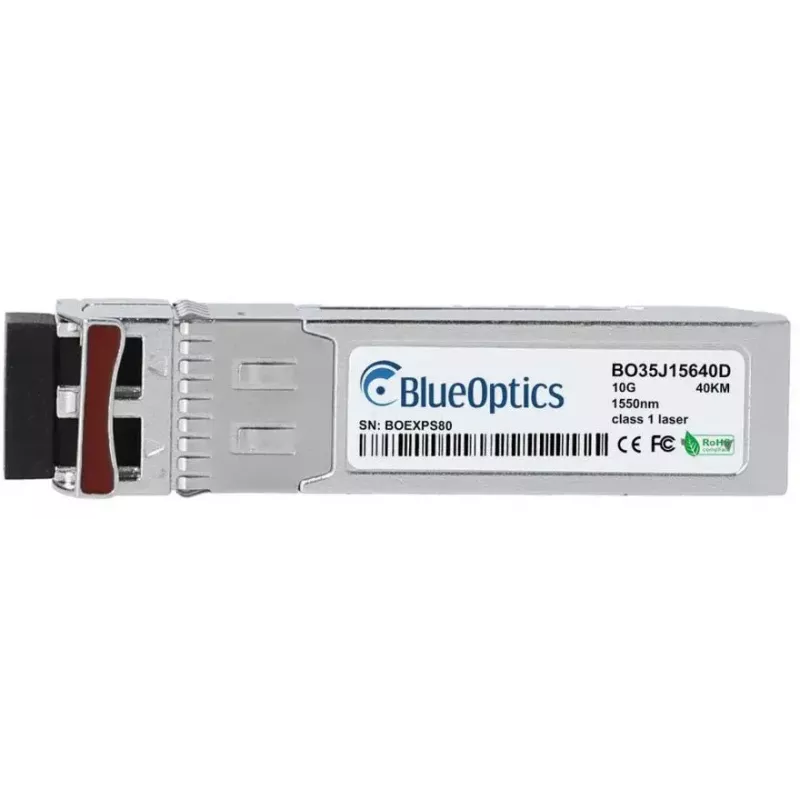

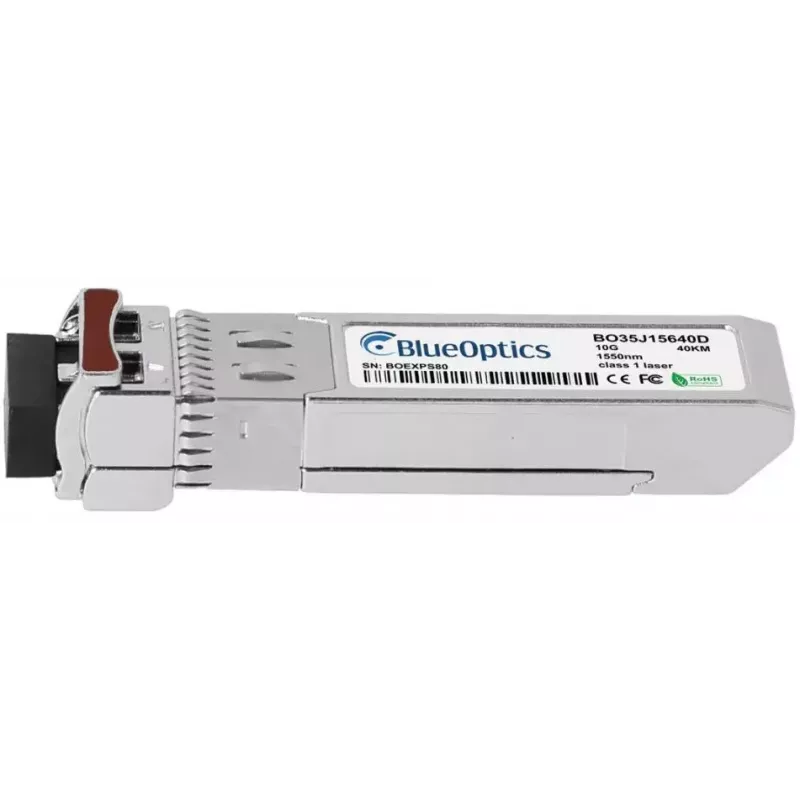

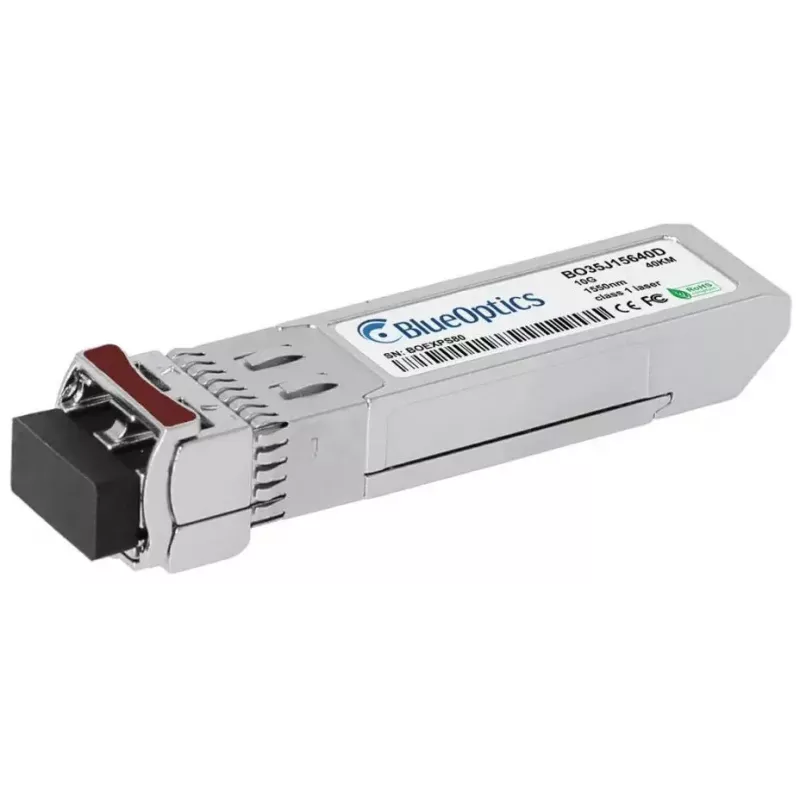

Transceptor SFP BlueOptics SFP-LR40-LC10-BO 10000 Mbit/s 1550 nm

The BlueOptics SFP-LR40-LC10-BO is an SFP fiber optic transceiver module designed for 10 Gbit/s class networks. It operates at a wavelength of 1550 nm, supports single-mode fiber connections via an LC duplex connector and is housed in a metal casing. The module is powered from a 3.3 V input and has a compact lightweight design, making it suitable for installation in compatible SFP/SFP+ ports on switches, routers and other network equipment that accept the form factor and optical characteristics.

Advantages

This transceiver provides long-reach optical transmission up to standards for 10GBASE-ER class links over single-mode fiber, with a standardized LC duplex interface and a rugged metal housing for reliable physical protection. The module is manufactured to MSA-compliant dimensions and interfaces and includes digital diagnostics support where the host hardware provides the necessary DOM/DDM functionality. Its low weight and standard SFP form factor allow straightforward replacement or upgrade of compatible ports.

Suitable for

Key specifications

How to use

Insert the transceiver into a compatible SFP/SFP+ slot on your network device until it latches, then connect LC duplex single-mode fiber patch cords to the TX and RX ports following the device documentation for transmit/receive orientation. Ensure the host device supports 10G optical modules at the specified wavelength and that any DOM/DDM features are enabled in the device firmware if monitoring is required. Power is supplied by the host through the 3.3 V interface; no external power connection is necessary. Follow standard ESD precautions during handling and installation.

Recommendations

Use high-quality single-mode fiber patch cords and, where possible, route connections through appropriate patch panels to minimise mechanical stress. Verify compatibility with the target hardware and enable digital diagnostics on supported devices to monitor voltage, temperature and optical power for preventive maintenance.
