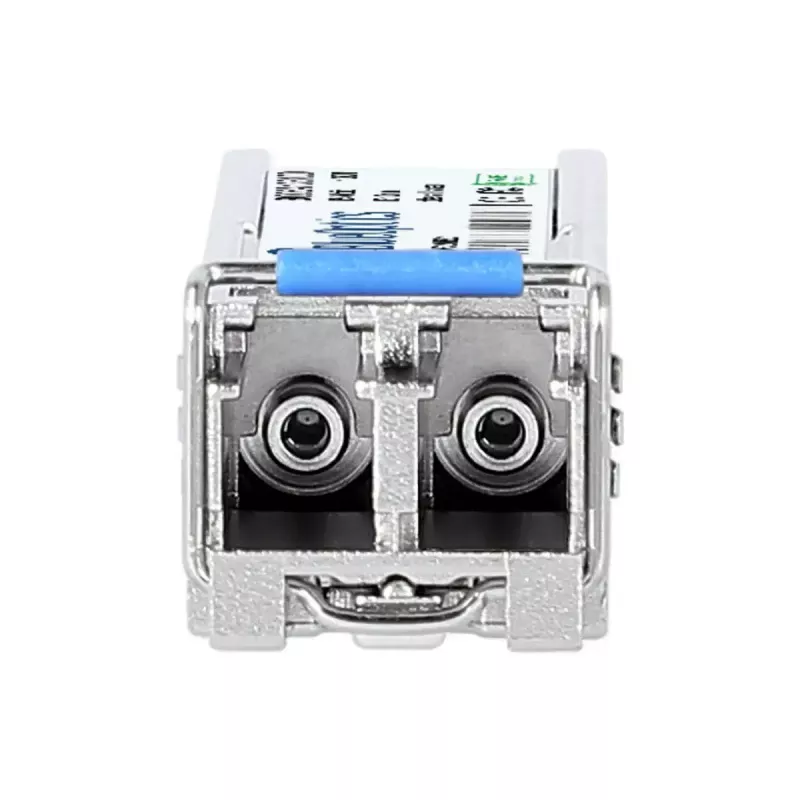

Transceptor SFP BlueOptics SPG-FE-LX-IDFC-BO 155 Mbit/s 1310 nm

The BlueOptics SPG-FE-LX-IDFC-BO 155 Mbit/s 1310 nm is an SFP fiber optic transceiver module designed for fiber-based network links that require a 155 Mbit/s data rate. Encased in a metal housing with a silver finish, the module supports a 3.3 V input and complies with RoHS standards. Its compact, lightweight design (approx. 2 g) makes it suitable for installations where space and weight are limited while maintaining stable optical transmission at a 1310 nm wavelength.

Advantages

The module provides a standardized SFP interface for easy hot-plug installation in compatible networking equipment. Its metal housing offers physical robustness and thermal dissipation. Operating at 1310 nm with a 155 Mbit/s transfer capability, the transceiver is appropriate for legacy and specialized fiber links. Low weight and RoHS compliance add to its suitability in environments with regulatory and physical constraints.

Suitable for

• WAN and MAN fiber links operating at 155 Mbit/s
• Legacy optical network segments and specialized industrial networks
• Equipment with SFP slots requiring 1310 nm single-mode transmission

Key specifications

• Interface type: SFP form factor
• Data rate: up to 155 Mbit/s
• Optical wavelength: 1310 nm
• Operating voltage: 3.3 V input
• Housing: metal, silver colour
• Weight: approximately 2 g
• RoHS compliant

How to use

Install the BlueOptics SFP transceiver into a compatible SFP port on network equipment while the host supports hot-plug SFP modules. Ensure the transceiver is matched with appropriate fiber cable type and connectors for single-mode transmission at 1310 nm. Verify that the host device is configured for the required 155 Mbit/s link parameters and that optical power budgets and link distances meet system requirements. Handle the module by its edges and protect the optical interface with dust caps when not connected.

Recommendations

Use this transceiver in environments where a 1310 nm, 155 Mbit/s optical link is required and ensure compatibility with the host device's SFP slot and link configuration. Maintain fiber cleanliness, confirm optical power margins, and observe ESD precautions during installation and removal.
