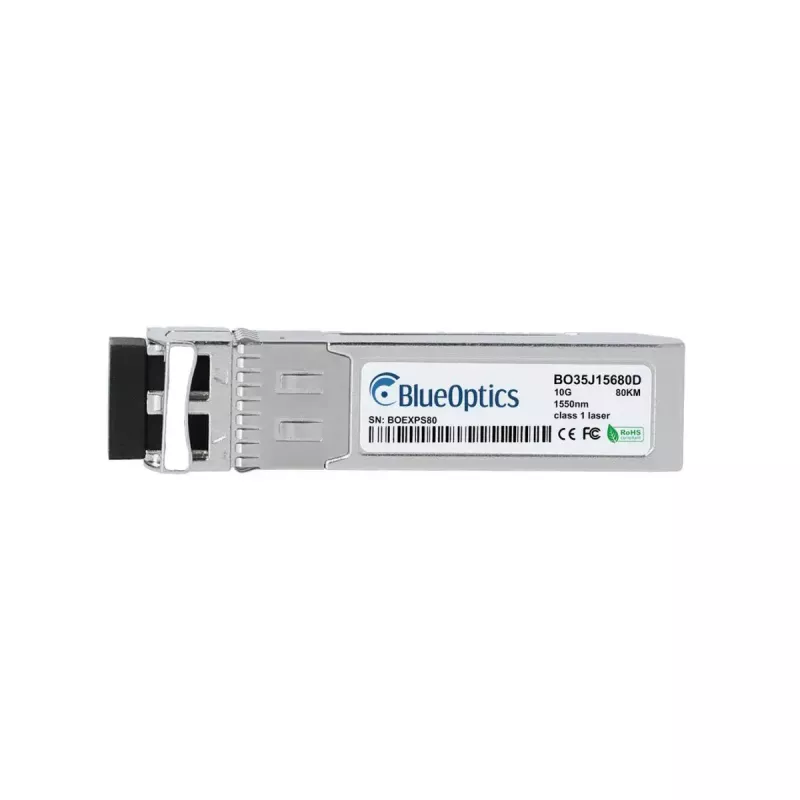

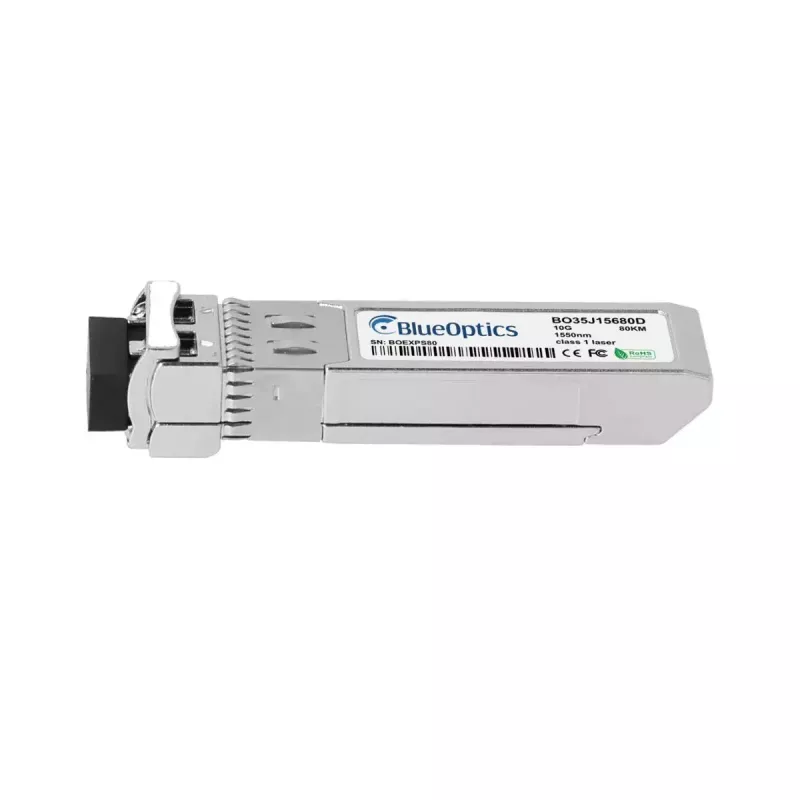

Transceptor SFP+ BlueOptics TRX100115-BO 10000 Mbit/s 1550 nm plata

The BlueOptics TRX100115-BO is an SFP+ fiber optic transceiver designed for 10 Gbit/s links. It supports a 1550 nm wavelength and comes in a durable metal housing with a compact, lightweight design that simplifies installation in switches, routers and optical equipment. The module provides a stable optical interface compatible with standard SFP+ ports and is intended for high-speed network connections where single-mode 1550 nm transmission is required.

Advantages

The transceiver combines a high 10 000 Mbit/s data rate with a 1550 nm operating wavelength, enabling long-reach single-mode transmission in a small SFP+ form factor. The metal housing offers mechanical stability and thermal conduction, while the lightweight design (approximately 20 g) reduces strain on equipment slots and makes handling straightforward during maintenance or upgrades. The product colour and compact dimensions make it compatible with most standard networking environments.

Suitable for

• Establishing 10 Gbit/s single-mode fiber links in data centers and enterprise networks
• Upgrading switches and routers that accept SFP+ transceivers
• Long-distance optical connections using 1550 nm wavelength
• Spare or replacement modules for optical networking equipment

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Operating wavelength: 1550 nm
• Housing material: metal (durable metal casing)
• Weight: 0.02 kg
• Colour: silver

How to use

Install the BlueOptics SFP+ transceiver into an empty SFP+ port on compatible network equipment until it clicks into place. Connect a suitable single-mode optical cable with the appropriate connector type to the module's optical interface, observing correct polarity. Ensure the host device is powered and configured for the desired 10 Gbit/s link settings; the transceiver is plug-and-play with standard SFP+ interfaces but may require port configuration in managed switches or routers. Handle the module by its body, avoid touching the optical connector end-face, and replace protective caps only when the module is not in use.

Recommendations

Use single-mode fiber rated for 1550 nm and verify connector cleanliness before insertion. For long-distance links, confirm link budget and attenuation values to ensure reliable operation at 10 Gbit/s. Store unused modules in anti-static packaging and protect optical interfaces with dust caps to maintain performance.
