Transceptor SFP BlueOptics UF-SM-1G 1250 Mbit/s 1310 nm

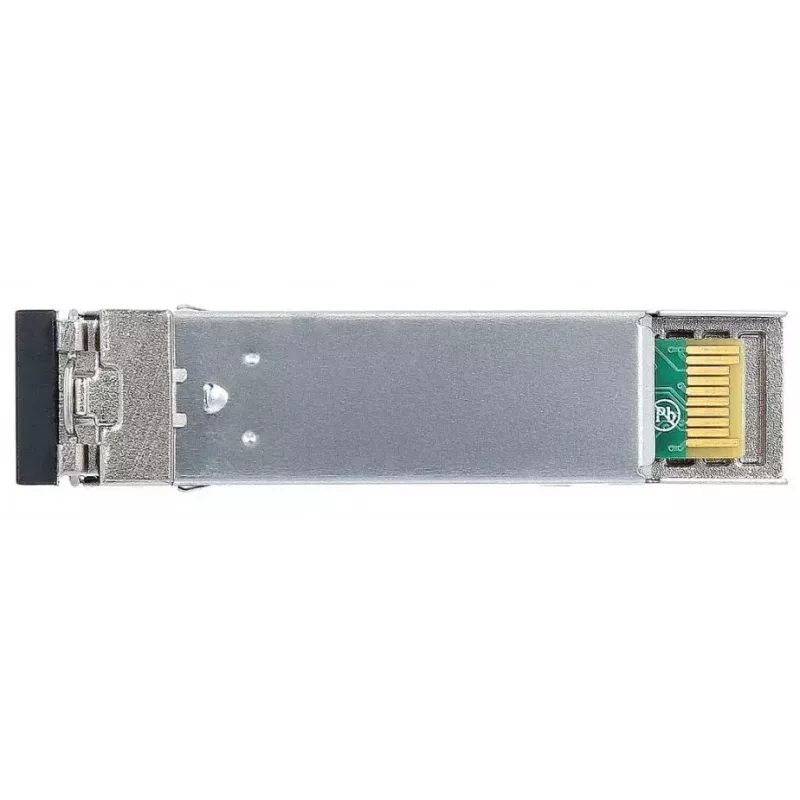

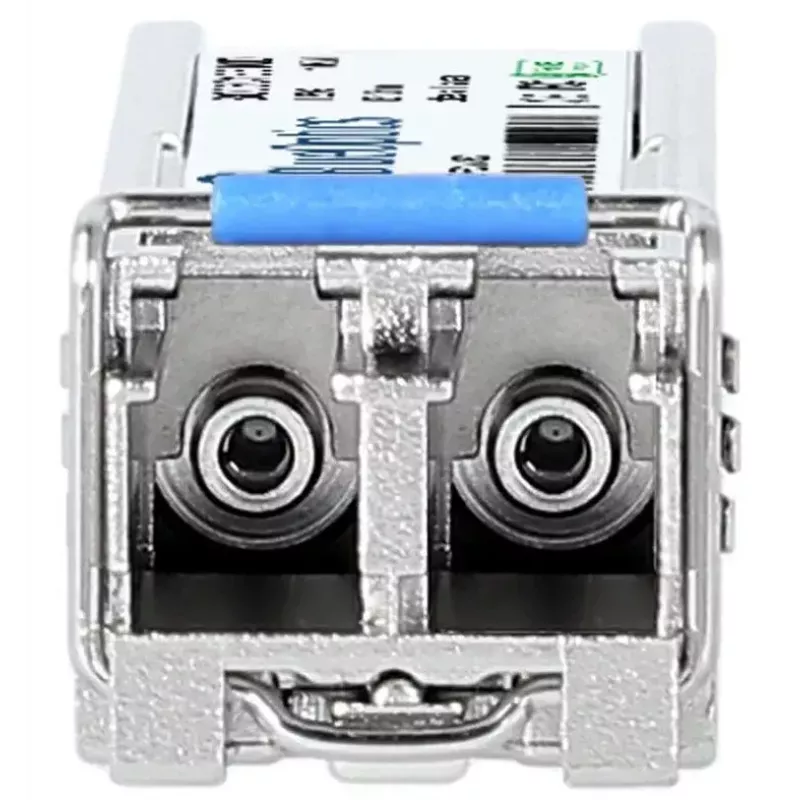

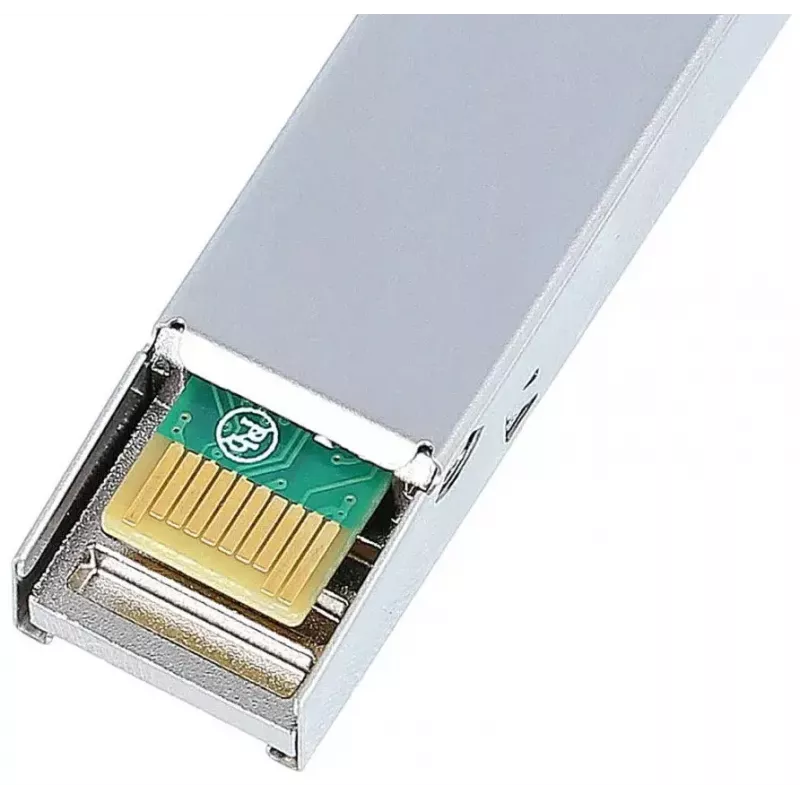

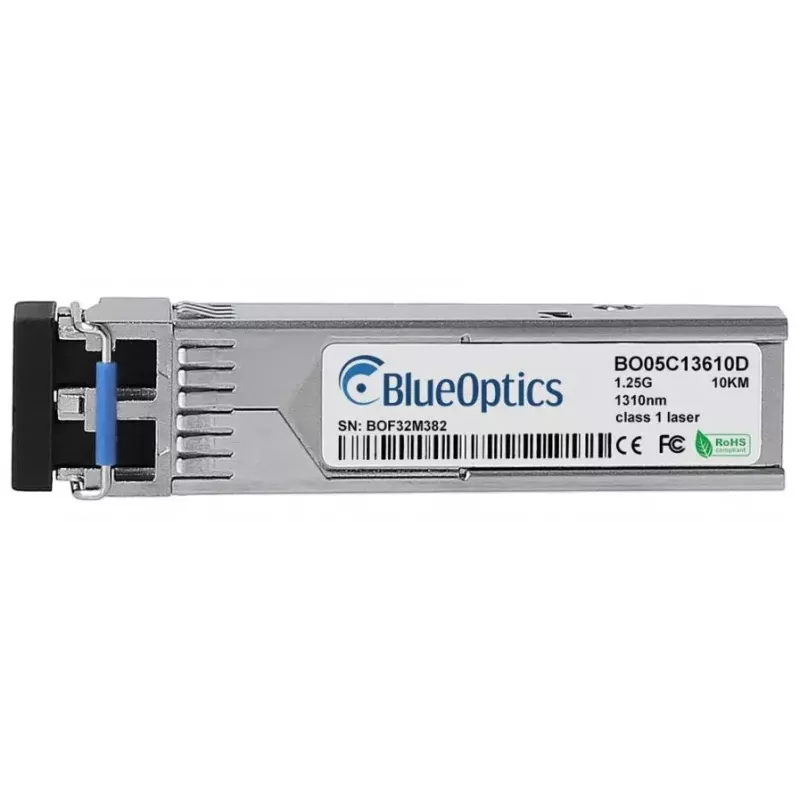

The BlueOptics UF-SM-1G 1250 Mbit/s 1310 nm is an SFP fiber optic transceiver module engineered for single-mode fiber links that require 1 Gbps-class data transfer. Operating at a nominal wavelength of 1310 nm and supporting a data rate of 1250 Mbit/s, this compact module provides a standard small form-factor pluggable interface suitable for switches, routers and media converters that accept SFP transceivers. The module has a lightweight silver housing and is designed to fit the SFP slot without additional adapters.

Advantages

The module combines a standard SFP interface with a 1310 nm optical wavelength to enable reliable single-mode fiber communication over typical metro and access distances. Its compact size and low weight make it simple to deploy in dense networking racks and equipment. The transceiver follows common interoperability expectations for SFP modules, allowing replacement or expansion of existing fiber links while keeping installation straightforward.

Suitable for

• Single-mode fiber uplinks between switches and routers
• Data center interconnects and access networks
• Media converters and industrial Ethernet devices with SFP slots
• Network upgrades where 1 Gbit-class fiber links are required

Key specifications

• Interface type: SFP (Small Form-factor Pluggable)
• Maximum data transfer rate: 1250 Mbit/s
• Optical wavelength: 1310 nm (single-mode)
• Typical application: 1 Gbit-class single-mode fiber links
• Housing colour: Silver
• Weight: 0.02 kg

How to use

Power off or follow hot-swap procedures recommended by your equipment vendor before inserting the SFP module. Remove the protective dust caps from the optical connector, insert the BlueOptics UF-SM-1G into a compatible SFP slot until it latches, and then connect the single-mode fiber patch cable to the module. Verify the link LEDs and device configuration to confirm the fiber link is established and operating at the expected data rate.

Recommendations

Use quality single-mode fiber and compatible connectors; avoid bending the fiber beyond recommended radius and keep connector end-faces clean. Confirm compatibility with the host device and adhere to manufacturer guidelines for electrostatic discharge (ESD) protection during handling and installation.
