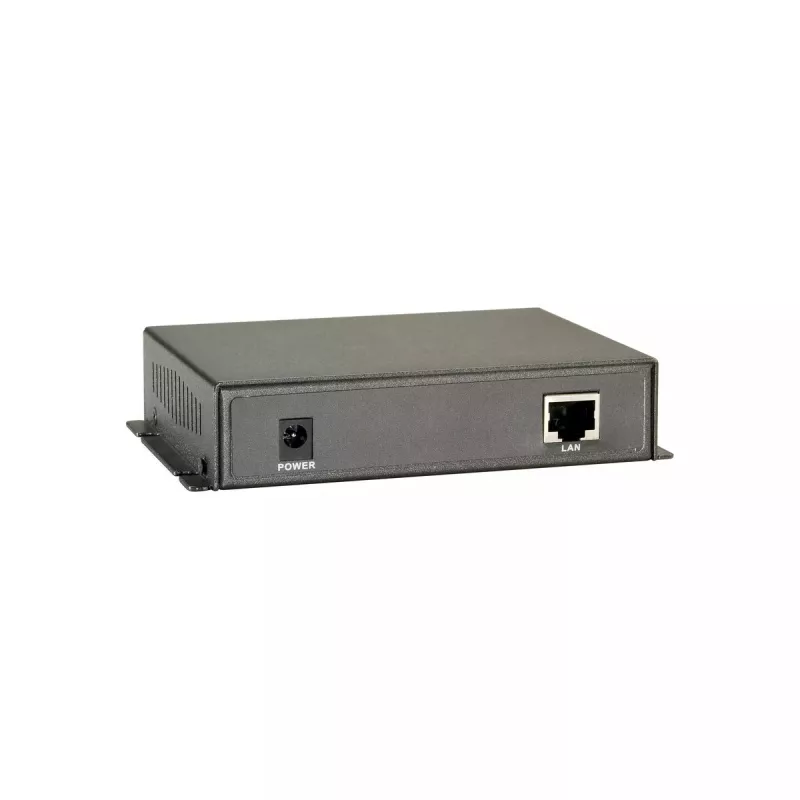

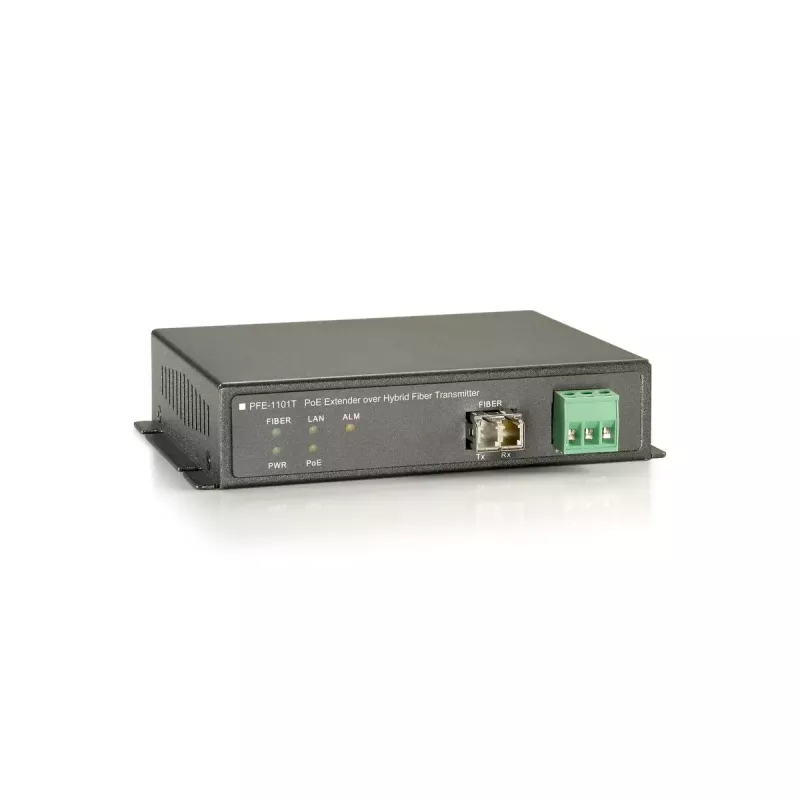

Transmisor PoE sobre cable híbrido LevelOne, 120W

The LevelOne PFE series transmits both power and data over a single hybrid fiber-and-copper cable, allowing delivery up to 2 km (6,800 ft) to a remote receiver that supplies high-power PoE output for IP surveillance devices. Outdoor variants (PFE-1011R and PFE-1014R) provide the same functionality inside an IP66-rated weatherproof housing and operate in a wide temperature range from -40°C to 60°C.

Advantages

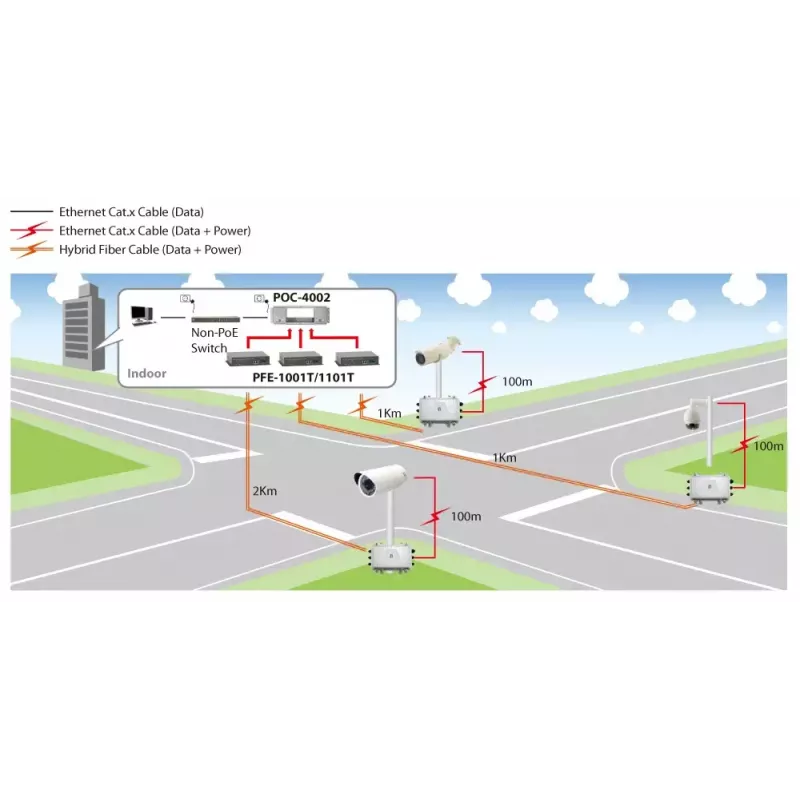

Using a hybrid fiber and copper link extends PoE reach without intermediate power sources, enabling installation of cameras and other PoE devices at distant locations. The range supports high-power devices and offers selectable receiver configurations with one or four PoE outputs. Rugged outdoor models ensure continual operation in harsh environments thanks to IP66 protection and broad temperature tolerance.

Key specifications

• Maximum distance: 2 km (6,800 ft) over a single hybrid fiber-copper cable
• High-power PoE support: up to 60 W at 450 m link (supported by receiver)
• Receiver output options: selectable 1 or 4 PoE outputs
• Outdoor models: PFE-1011R / PFE-1014R with IP66 weatherproof housing
• Operating temperature (outdoor models): -40°C to 60°C

How to use

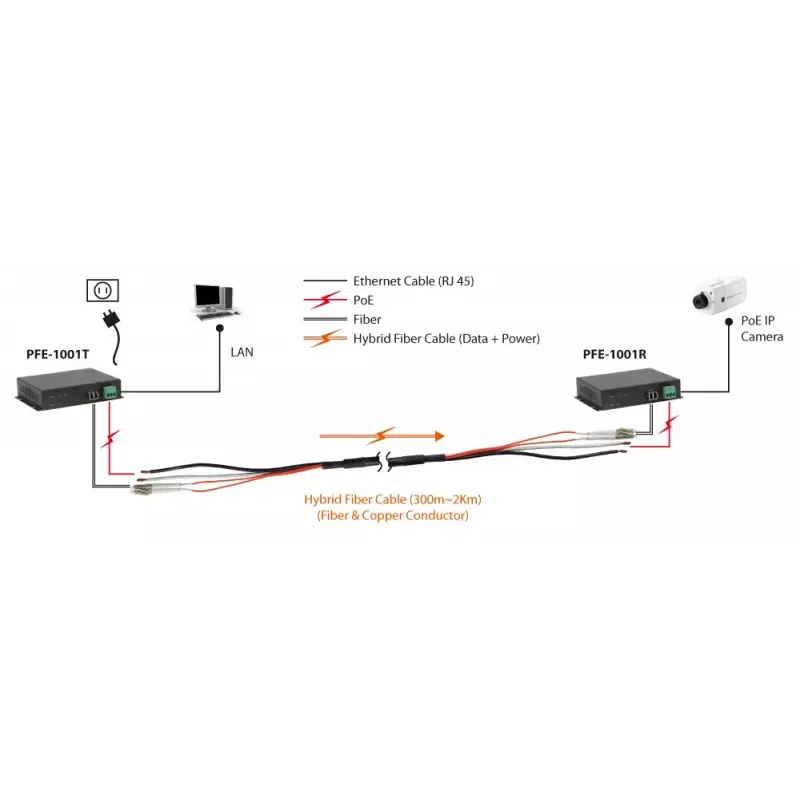

Install the hybrid fiber-and-copper cable between the power/source unit and the remote receiver, choosing the receiver model with the required number of PoE outputs (1 or 4). Connect PoE devices such as IP cameras to the receiver outputs and verify power delivery and link status. For outdoor deployments, mount the IP66-rated receiver in a protected location and ensure cable entries are sealed according to site requirements.

Recommendations

For reliable high-power PoE delivery, calculate cable length and power budget—note that up to 60 W is supported at approximately 450 m; longer runs may limit available power. Use the outdoor (PFE-1011R/1014R) models for exposed installations and follow IP66 mounting and cabling guidelines to maintain weatherproofing.
