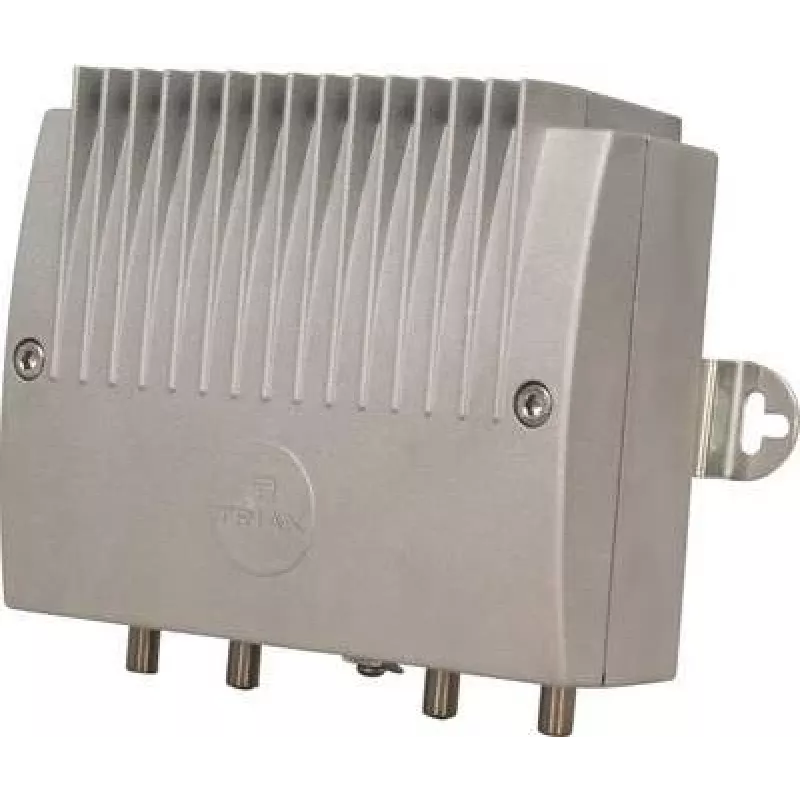

TRIAX GPV 950 Amplificador de acometida 40/32dB conector F IP65

For CATV and broadband installers needing a weatherproof signal boost at the demarcation point, the TRIAX GPV 950 delivers reliable amplification in an IP65-rated die-cast aluminum housing. This active return path amplifier provides 40 dB forward gain and 32 dB return gain, with adjustable attenuation and equalization for precise signal balancing.

Key specifications

• Forward path: 47-862 MHz, 40 dB gain
• Return path: 5-65 MHz, 32 dB gain
• Max output level: 112 dBµV (35 Ch. CENELEC)
• Noise figure: < 7 dB
• Adjustable attenuation: 0-18 dB
• Adjustable equalization: 0-18 dB
• F-type connectors, 1 output
• Test points: -20 dB (input & output)
• IP65 weatherproof housing
• Power supply: 230 VAC, 50 Hz, 10 W
• Operating temperature: -20 to +50 °C

Why choose it

The GPV 950 combines high gain with active return path support, ensuring both downstream and upstream signals are amplified for modern interactive services. Its die-cast aluminum housing and IP65 rating protect against harsh outdoor conditions, while adjustable controls allow fine-tuning for varying cable lengths and signal levels.

Ideal use cases

• House connection points in CATV networks
• Broadband distribution in MDUs
• SMATV headends requiring outdoor amplification

Good to know

The amplifier is powered directly from the mains (230 VAC) and features test points for easy signal measurement without disrupting service.
