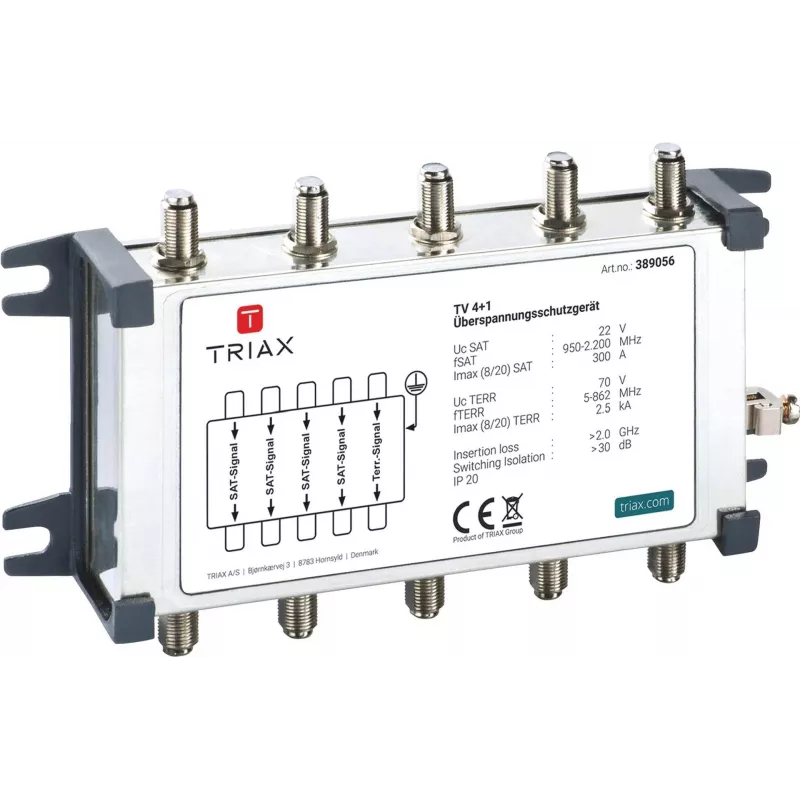

Triax TV 4+1 protección contra sobretensiones para cables coaxiales y toma de tierra 389056

Unlike basic power strips that only guard electrical outlets, the Triax TV 4+1 focuses on the often-overlooked vulnerability of coaxial signal paths. It shields up to four independent F-type lines—terrestrial TV, satellite IF, or a mix—plus a dedicated ground connection, making it a specialized defender for your entire reception setup.

Highlights

• Protects 4 coaxial lines (F-type female) and 1 ground terminal
• Wide frequency range 5–2400 MHz, ideal for TV and SAT IF
• High surge capacity: 20 kA nominal discharge current per line
• Low insertion loss (< 0.5 dB) preserves signal quality
• Die-cast metal housing with wall-mount option

In daily use

Install the unit close to your antenna or satellite dish entry point. Connect the incoming coaxial cables to the F-type ports, and secure the ground wire to the screw terminal (up to 16 mm²). During a lightning strike or surge event, the protector diverts excess energy to ground, preventing damage to receivers, TVs, and other connected equipment. Its robust metal enclosure withstands harsh environments, and the wide operating temperature range (-40 to +85 °C) ensures reliable performance in attics, basements, or outdoor enclosures.

Full specifications

• Type: Surge Protective Device (SPD) for coaxial networks
• Protected lines: 4 coaxial + 1 ground
• Connector type: F-type female
• Ground connection: Screw terminal (up to 16 mm²)
• Frequency range: 5–2400 MHz
• Impedance: 75 Ohm
• Insertion loss: < 0.5 dB at 2150 MHz
• Return loss: > 18 dB (5–862 MHz), > 15 dB (862–2150 MHz)
• Nominal discharge current (In): 20 kA (8/20 µs) per line
• Impulse discharge current (Iimp): 2.5 kA (10/350 µs) per line
• Voltage protection level (Up): < 900 V (L-PE, 1.2/50 µs)
• Shielding effectiveness: > 100 dB
• Operating temperature: -40 to +85 °C
• Standard: EN 61643-21 (Type 2)
• Housing material: Die-cast metal
• Mounting: Wall mountable

Final note

For reliable protection of your TV and satellite signal lines, the Triax TV 4+1 delivers professional-grade surge defense without compromising signal integrity. Its compact, rugged design makes it an essential component for any residential or commercial installation.
