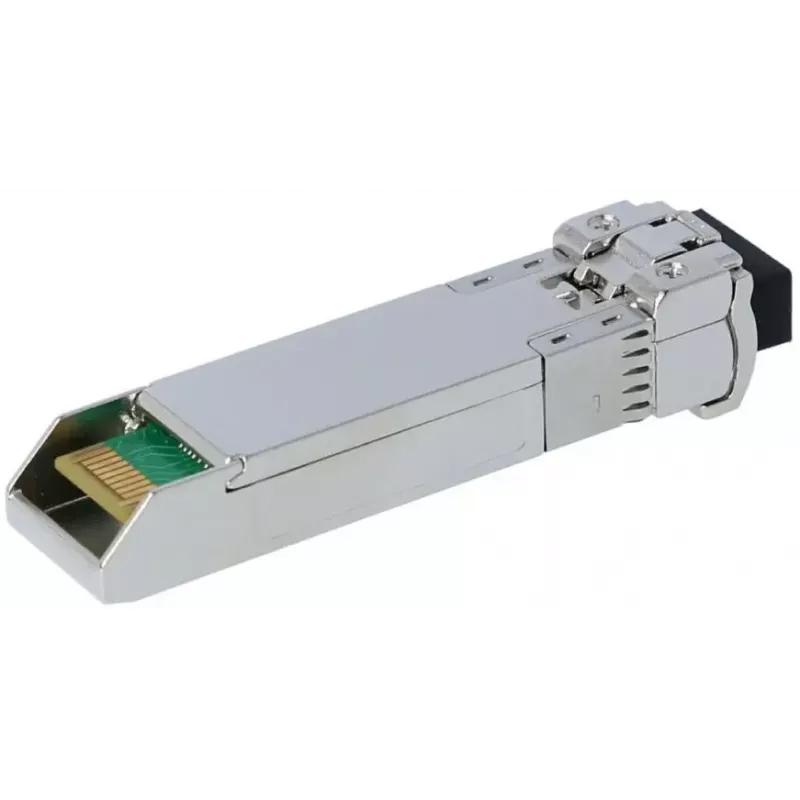

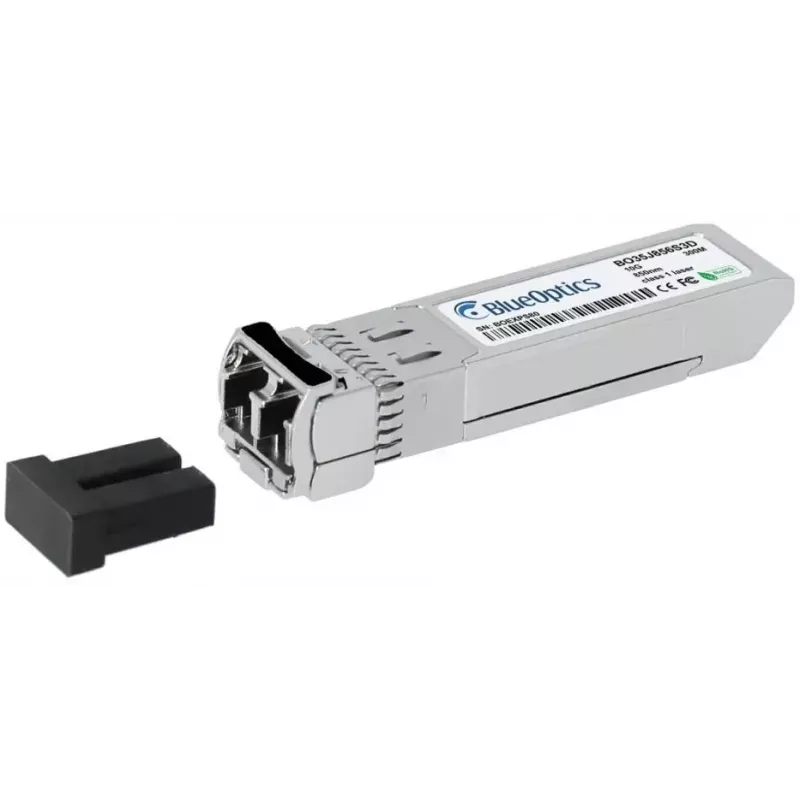

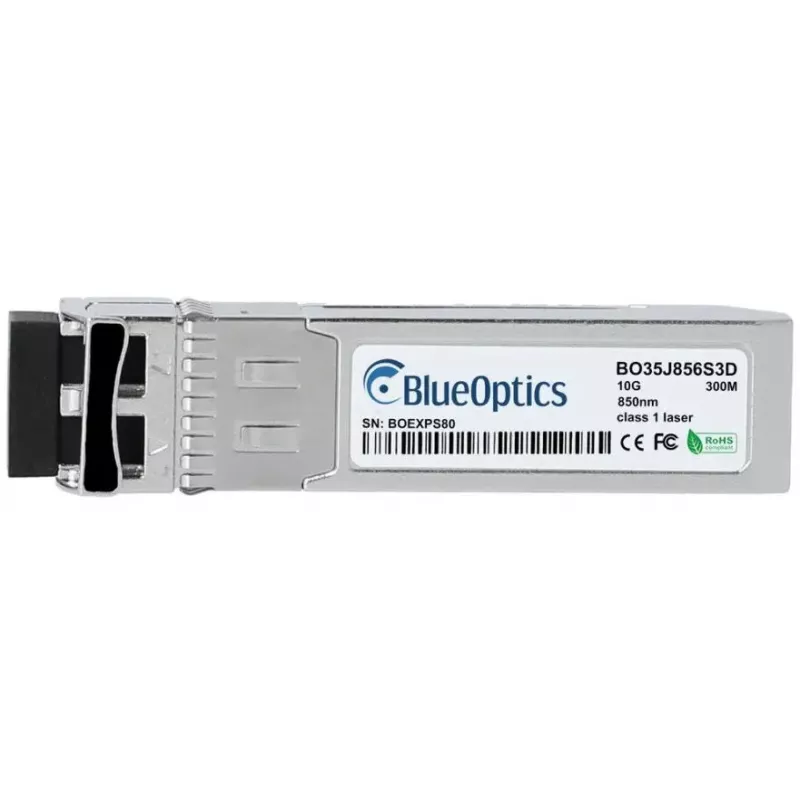

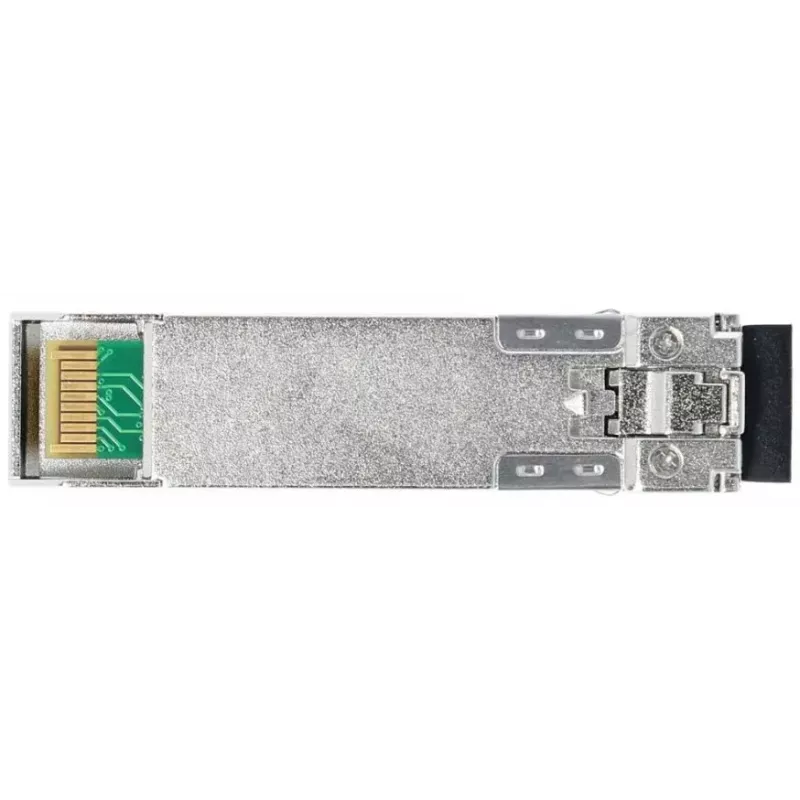

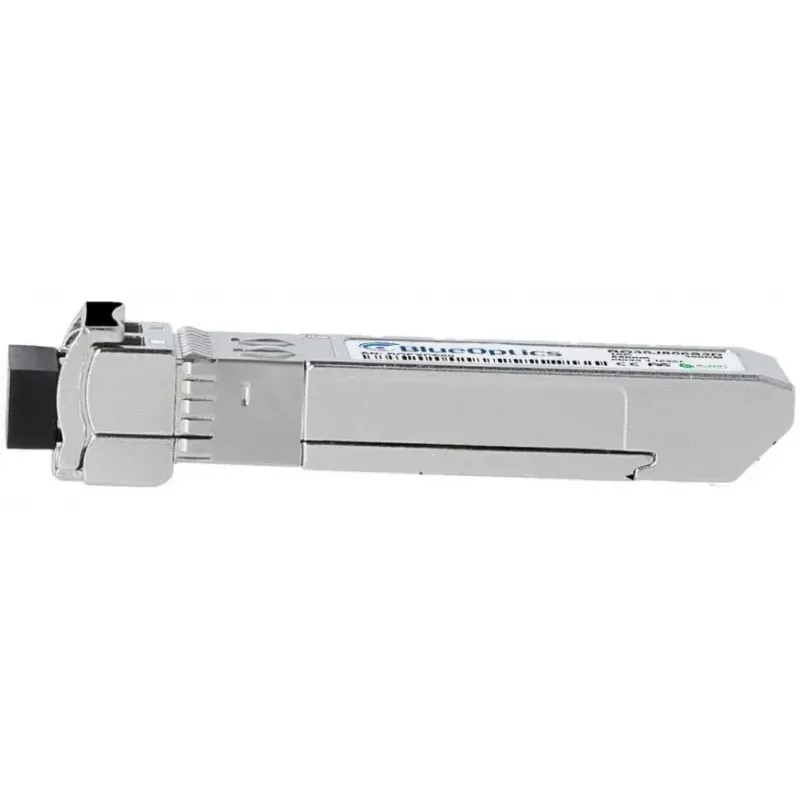

Triton BlueOptics E7Y10A-BO transceptor SFP+ de fibra óptica, 100 m, aluminio, 1 ud.

The Triton BlueOptics E7Y10A-BO is a fiber optic SFP+ transceiver designed for short-range 10GbE links. The compact aluminium module connects to standard SFP+ slots and supports optical transmission over multimode fiber up to 100 m. Supplied as a single unit and weighing approximately 20 g, this transceiver is intended for integration in switches, routers and servers that require reliable short-distance 10 Gigabit Ethernet fiber connectivity.

Advantages

The transceiver follows MSA-compatible SFP+ form-factor conventions and uses LC duplex optical connections for simultaneous transmit and receive channels. It supports multimode operation at an 850 nm wavelength for both transmitter and receiver and is compatible with common hardware platforms that accept SFP+ optical modules. The aluminium housing provides a lightweight, durable enclosure suitable for dense installations. The module includes diagnostic monitoring capability (DDM/DOM) for real-time status reporting where the host device supports this feature.

Suitable for

• Short-range 10 Gigabit Ethernet links over multimode fiber up to 100 m
• Connections between switches and access/aggregation equipment in data closets
• Server-to-switch fiber uplinks in rack environments
• Fiber links in storage area networks and network appliances that use SFP+ ports

Key specifications

• Form factor: SFP+
• Supported data rate: 10 Gigabit Ethernet (10GbE)
• Maximum optical reach: up to 100 m over multimode fiber
• Wavelength: 850 nm (Tx/Rx)
• Connector type: LC duplex
• Housing material: aluminium
• Weight: approx. 20 g
• Digital diagnostics: DDM/DOM support (if host supports)

How to use

Install the Triton BlueOptics SFP+ transceiver into an empty SFP+ slot on a compatible switch, router or server until it latches into place. Use LC duplex multimode fiber patch cords to connect the transceiver to the remote transceiver or patch panel, ensuring transmit and receive fibers are correctly paired. Configure the host port for 10GbE operation as required by your device. If available, enable or query the module's digital diagnostic monitoring through the host system to check parameters such as optical power and temperature.

Recommendations

Use multimode fiber (OM3/OM4 recommended for 10GbE at the full 100 m range) with quality LC duplex connectors and keep fiber ends clean to ensure optimal signal quality. Verify DDM/DOM support on the host device before relying on diagnostic values. For best interoperability, confirm that the network equipment accepts third-party SFP+ modules or that compatibility is listed by the equipment vendor.
