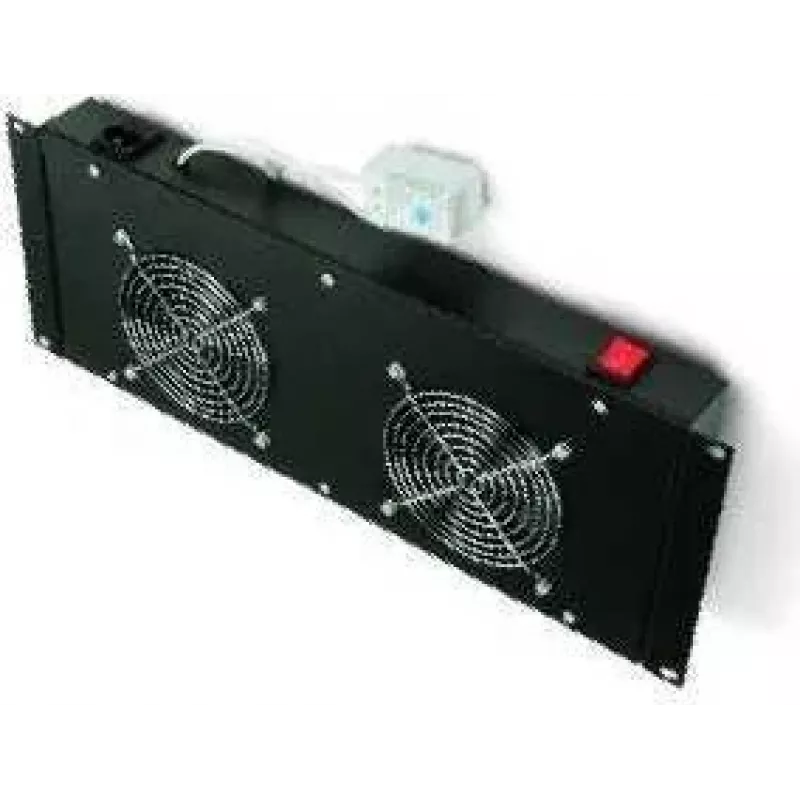

TRITON RAB-CH-X21-S unidad de ventiladores para rack 19" 4U con 2 ventiladores silenciosos, flujo de aire horizontal, termostato, negro

Rack-mounted equipment often struggles with heat buildup, which can lead to performance throttling or premature failure. The TRITON RAB-CH-X21-S addresses this by providing active horizontal airflow in a 4U 19-inch form factor. It is equipped with two silence fans and an integrated thermostat, allowing the fan speed to respond to the actual temperature inside the rack.

Who is it for

This fan unit is intended for IT professionals and system integrators who need to improve air circulation in server racks and network cabinets. It fits any standard 19-inch rack and occupies 4 height units.

Main features

• Two silence fans for low-noise operation (max. 30 dB(A))
• Horizontal airflow direction
• Integrated thermostat with adjustment range 0–60 °C
• 4U height, 19-inch rack mountable
• Black steel housing (RAL 9005)
• Airflow volume: 276 m³/h
• Power supply: 230 V AC, 50/60 Hz, power consumption 46 W
• Power connector: IEC C14, 2 m power cable

Specifications

• Rack compatibility: 19-inch
• Rack units: 4U
• Number of fans: 2
• Fan type: Silence fans
• Airflow direction: Horizontal
• Temperature control: Integrated thermostat, adjustment range 0–60 °C
• Colour: Black (RAL 9005)
• Material: Steel
• Power supply: 230 V AC, 50/60 Hz
• Power consumption: 46 W
• Noise level: Max. 30 dB(A)
• Airflow volume: 276 m³/h
• Power cable length: 2 m
• Power connector: IEC C14
• Operating temperature range: 0–50 °C
• Protection rating: IP20

Tips

Position the fan unit to direct airflow toward the equipment that generates the most heat. The thermostat can be adjusted to balance cooling performance and noise level according to your environment.
