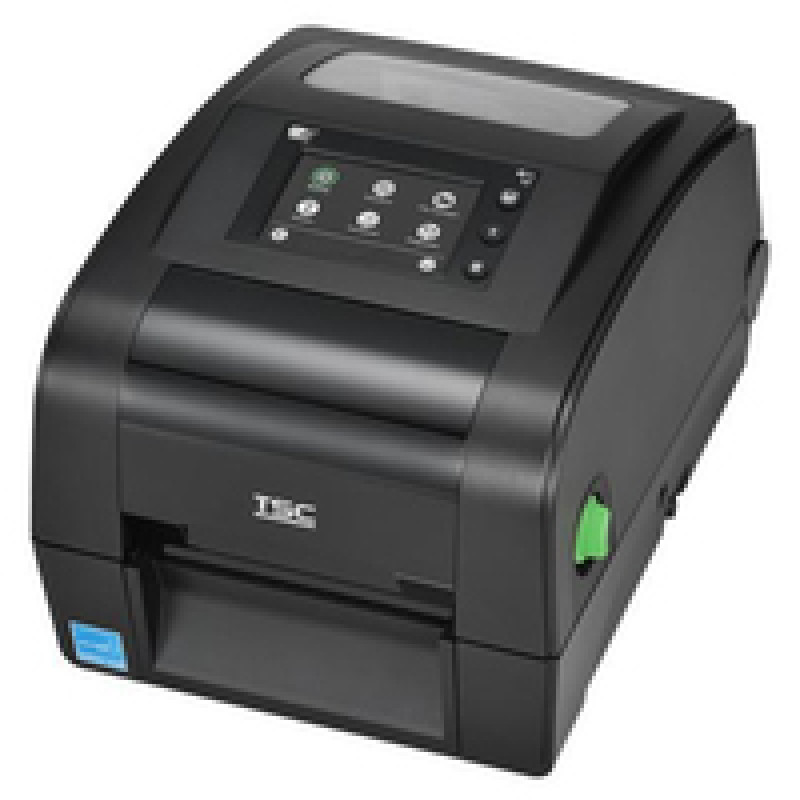

TSC TH340T, LCD, EU (EMEA)

High-volume labelling often bogs down with slow print speeds, limited connectivity, and poor media handling. The TSC TH340T industrial barcode printer eliminates those bottlenecks with a rugged die-cast aluminium mechanism, fast 300 dpi output, and flexible media support for demanding warehouse, manufacturing, and logistics environments.

Who is it for

This printer is built for operations that need reliable, high-resolution barcode and label printing around the clock. It suits warehouse managers, production line supervisors, and logistics coordinators who require crisp 1D/2D barcodes, durable thermal transfer prints, and seamless integration with existing systems via Ethernet, USB, or RS-232.

Main features

• 300 dpi resolution (12 dots/mm) for sharp text, graphics, and barcodes
• Dual-mode printing: thermal transfer and direct thermal
• Fast print speed up to 152 mm/s (6 ips)
• 4.3-inch colour LCD touchscreen for easy setup and monitoring
• Robust die-cast aluminium print mechanism with metal cover
• Large 203.2 mm (8") OD media roll capacity reduces downtime
• 450 m ribbon length for fewer changeovers
• Supports TSPL-EZD, emulating EPL, ZPL, and ZPL II
• 128 MB Flash and 128 MB SDRAM for fast processing and storage
• Internal universal switching power supply for global compatibility

Specifications

• Print technology: Thermal transfer & direct thermal
• Maximum print width: 104 mm (4.09")
• Media width range: 20–118 mm (0.79"–4.65")
• Media types: continuous, die-cut, black mark, fan-fold, notched
• Connectivity: USB 2.0, RS-232, Ethernet, USB Host
• Processor: 32-bit RISC CPU
• Operating temperature: 5°C to 40°C (41°F to 104°F)
• Barcode support: 1D and 2D barcodes
• Regional version: EMEA (Europe, Middle East, Africa)

Tips

Pair the TH340T with high-quality thermal transfer ribbons and approved TSC media to maximise printhead life and achieve consistent barcode grades. Use the USB Host port to connect a keyboard or scanner for standalone operation without a PC.
