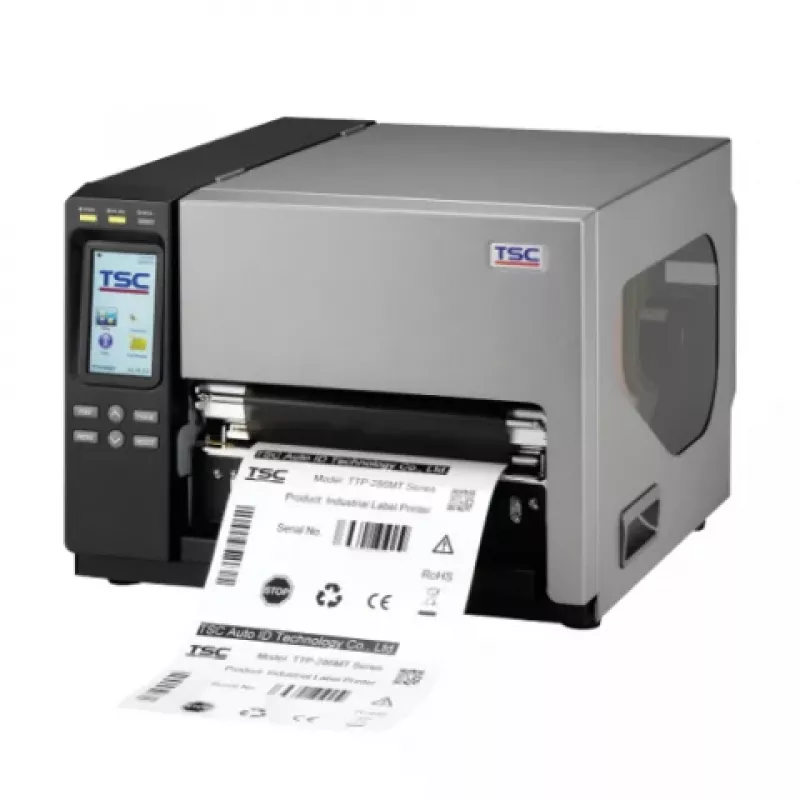

TSC TTP-384MT 12 puntos/mm 300dpi RTC Display TSPL-EZ USB RS232 LPT - impresora de etiquetas - impresora de etiquetas

With a 300 dpi resolution and a massive 216 mm print width, the TSC TTP-384MT handles wide-format labels with precision, making it a powerhouse for logistics, manufacturing, and compliance labeling. This industrial printer combines thermal transfer and direct thermal technologies to deliver crisp text, graphics, and barcodes on demand.

Overview

The TSC TTP-384MT is engineered for high-volume, wide-format label printing. It supports media rolls up to 208.3 mm in diameter and ribbon lengths up to 600 meters, reducing downtime for media changes. A 3.5" color LCD with backlighting provides intuitive control and real-time status monitoring, while the built-in real-time clock (RTC) enables time-stamped labels for traceability. The printer includes USB 2.0, RS-232 serial, and parallel interfaces for flexible connectivity, and its TSPL-EZ printer language ensures compatibility with EPL, ZPL, and ZPL II emulations.

What stands out

• 300 dpi resolution (12 dots/mm) for sharp, scannable labels
• Wide 216 mm print width for large labels and tags
• Dual-mode printing: thermal transfer and direct thermal
• 3.5" color LCD with backlight for easy operation
• Real-time clock for date/time stamping
• Robust connectivity: USB, RS-232, and parallel
• High-capacity media and ribbon handling
• TSPL-EZ language with EPL, ZPL, ZPL II emulation

Technical details

• Print technology: Direct thermal / thermal transfer
• Maximum resolution: 300 x 300 DPI
• Maximum print width: 216 mm (8.5")
• Maximum print speed: 102 mm/s (4 ips)
• Processor: 32-bit RISC CPU
• Memory: 32 MB SDRAM, 8 MB Flash
• Connectivity: USB 2.0, RS-232, Parallel (Centronics)
• Media roll diameter: 208.3 mm (8.2")
• Media core diameter: 76.2 mm (3")
• Ribbon length: 600 m
• Ribbon width: 25.4 - 220 mm (1" - 8.66")
• Sensors: Gap, black mark, ribbon end, head open
• Media types: Continuous, die-cut, black mark, fan-fold, notched
• Barcode support: 1D and 2D barcodes
• Power supply: Internal universal switching power supply

Our verdict

The TSC TTP-384MT is a workhorse for wide-format industrial labeling. Its 300 dpi resolution and 216 mm print width make it ideal for pallet labels, chemical drums, and large product tags. The color LCD and RTC add operational convenience, while the triple interface ensures easy integration into existing systems. With high-capacity media and ribbon support, it minimizes downtime and maximizes productivity.
