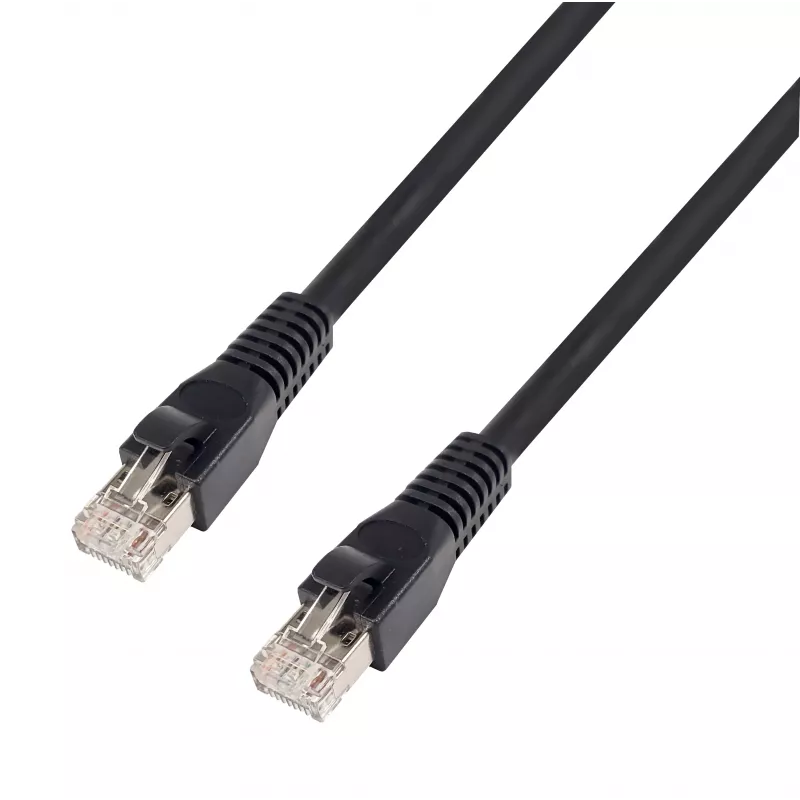

TTL 1812-HD-05 cable de parcheo Cat.6a HDBaseT 0,5m negro

The TTL 1812-HD-05 is a high-performance Cat.6a S/FTP patch cable designed for HDBaseT and 10 Gigabit Ethernet applications. With a length of 0.5 meters and a sleek black LSZH jacket, this cable ensures reliable, high-speed data transmission in professional network environments.

Advantages

This cable supports data transfer rates up to 10 Gbit/s and a bandwidth of 500 MHz, making it ideal for bandwidth-intensive applications. The S/FTP shielding (pairs in metal foil with overall braid) provides excellent protection against electromagnetic interference, ensuring signal integrity. Gold-plated contacts guarantee corrosion-free connectivity, while the snagless molded boot prevents damage during installation.

Suitable for

• HDBaseT installations (e.g., AV extenders)
• 10GBASE-T networks
• Data centers and server rooms
• High-speed local area networks

Key specifications

• Cable Type: Patch Cable
• Category: Cat.6a
• Length: 0.5 m
• Colour: Black
• Connectors: RJ45 (8P8C) Male to RJ45 (8P8C) Male
• Connector Plating: Gold-plated contacts
• Shielding: S/FTP (PiMF)
• Conductor Material: Bare Copper
• Conductor Gauge: AWG 26/7 (stranded)
• Jacket Material: LSZH
• Wiring Standard: TIA/EIA 568B
• PoE Support: PoE, PoE+, 4PPoE (IEEE 802.3af/at/bt)
• Impedance: 100 Ohm

Recommendations

For optimal performance in HDBaseT and 10G networks, pair this cable with compatible TTL networking equipment. Ensure proper cable management to maintain signal integrity.
