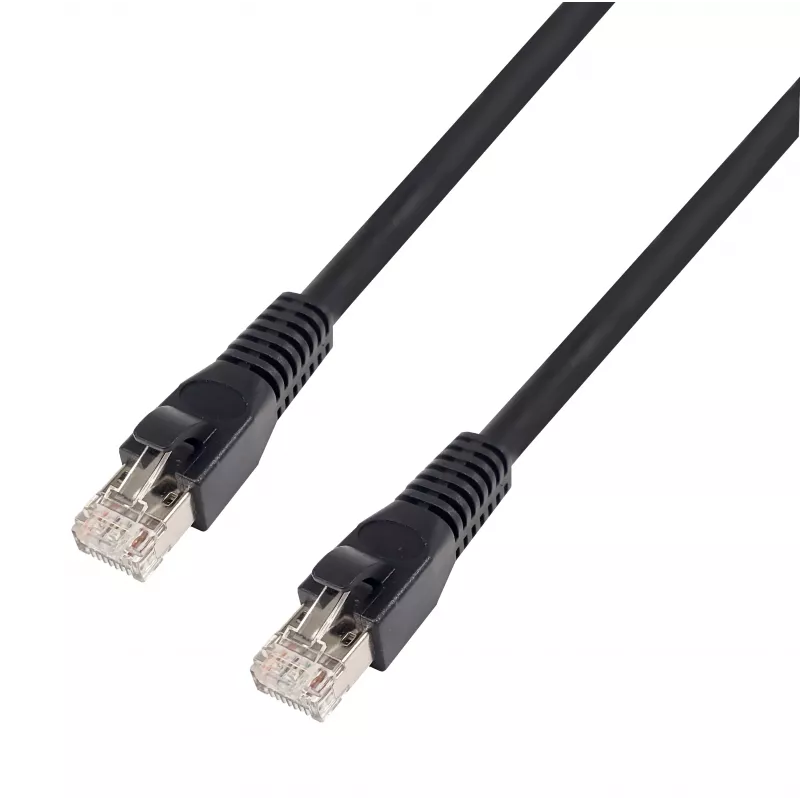

TTL 1812-HD-1 cable de parcheo Cat.6a HDBaseT 1m negro

The TTL 1812-HD-1 is a high-performance Cat.6a S/FTP patch cable designed for HDBaseT and 10 Gigabit Ethernet applications. With a length of 1 meter and a sleek black jacket, this cable ensures reliable, high-speed data transmission for professional network installations.

Advantages

This cable supports data transfer rates up to 10 Gbps and bandwidth up to 500 MHz, making it ideal for bandwidth-intensive applications. The S/FTP shielding (pairs in metal foil plus overall braid) provides excellent protection against electromagnetic interference, ensuring signal integrity. Gold-plated RJ45 connectors offer superior conductivity and corrosion resistance. The snagless boot design protects the connector tabs during installation and removal.

Suitable for

• HDBaseT video and audio distribution systems
• 10GBASE-T Ethernet networks
• PoE, PoE+, and PoE++ powered devices
• Data centers and server rooms
• Professional AV installations

Key specifications

• Cable Type: Patch Cable
• Category: Cat.6a (Class EA)
• Length: 1 meter
• Color: Black
• Shielding: S/FTP (PiMF)
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor Material: Oxygen-Free Copper (OFC)
• Conductor Gauge: 26 AWG stranded
• Jacket Material: PVC
• PoE Support: IEEE 802.3af/at/bt
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, EN 50173
• Wiring Standard: T568B
• Boot Type: Snagless

Recommendations

For optimal performance in HDBaseT and high-speed network environments, pair this cable with compatible switches, extenders, and receivers. Ensure proper cable management to maintain signal quality.
