Tubo protector InLine autocierre 10 mm de diámetro, 5 m, negro, poliéster, -50–150 °C

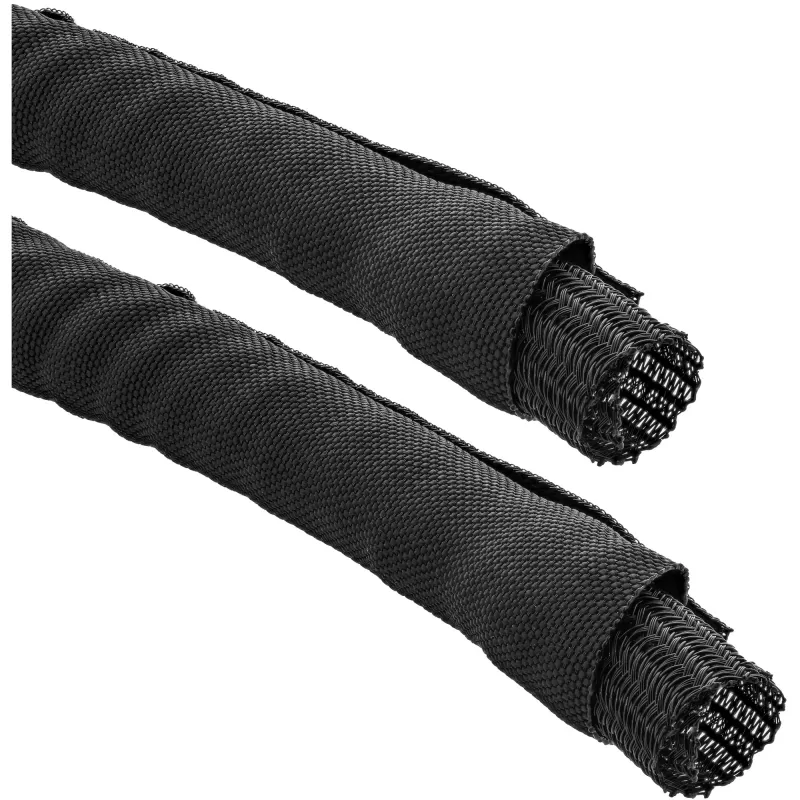

InLine self-closing sleeving, 10 mm diameter and 5 m length, is a lightweight braided polyester sleeve designed to bundle and protect cables, wires and hoses from abrasion and mechanical damage. The slit self-closing design enables installation without disconnecting existing wiring, while the combination of a woven polypropylene outer jacket and polyester inner braid offers low weight, flame resistance and thermal insulation. The sleeving performs across a wide temperature range from -50 to 150 °C and is suitable for industrial, automotive and domestic installations where flexible, reliable cable protection is required.

Advantages

The self-closing slit allows quick retrofitting and simple routing of cable harnesses without the need to disassemble connectors. The polyester braid combined with a polypropylene jacket yields high abrasion resistance and good thermal performance while keeping overall weight low. The construction provides flame resistance and mechanical protection, and the flexible sleeve conforms to harness shapes and bends for neat, space-efficient installations.

Suitable for

• Protecting cable bundles in industrial control panels and machinery
• Routing and protecting wiring looms in automotive and marine applications

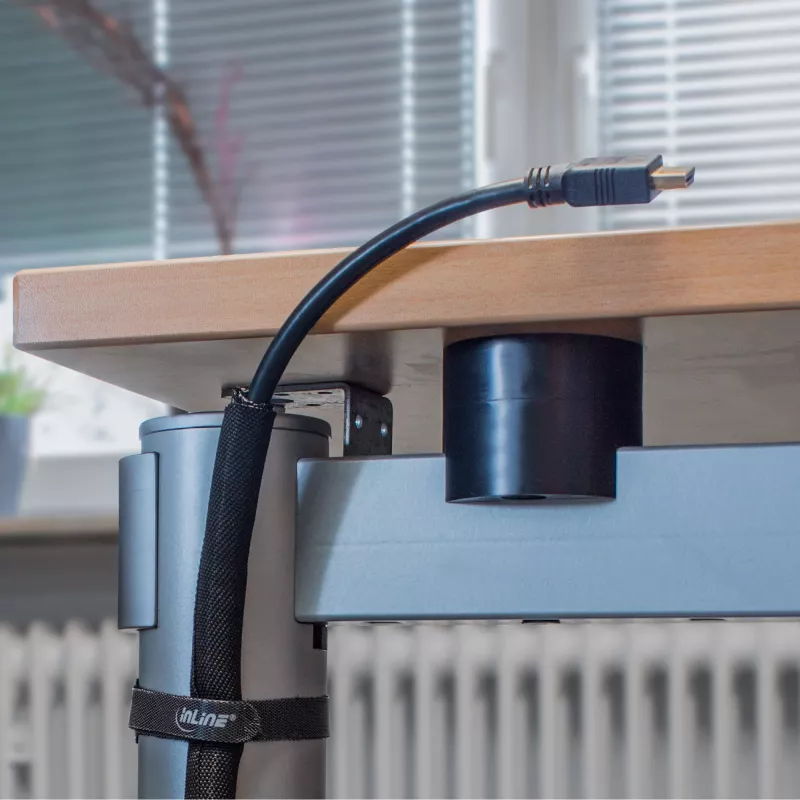

• Organising cables behind electronics, AV systems and home appliances
• Bundling hydraulic or pneumatic hoses where abrasion protection is needed

Key specifications

• Material: polyester braid with woven polypropylene outer jacket
• Internal diameter: 10 mm
• Length: 5 m
• Design: self-closing slit construction for retrofit installation
• Temperature range: -50 to 150 °C
• Properties: lightweight, high abrasion resistance, flame resistant, flexible

How to use

Measure and cut the required length of sleeving, allow a small margin for bends and terminations. Open the self-closing slit and place the existing cables, wires or hoses into the sleeve without disconnecting connectors, then let the braid close around the bundle. For fixed terminations, trim the sleeve to the desired length and secure the ends with heat-shrink tubing, cable ties or adhesive tape as appropriate. For sections that require additional protection or strain relief, add protective heat-shrink or mounting clips at attachment points.

Recommendations

For optimal performance, avoid prolonged exposure to direct flame and inspect for wear in high-friction environments. Use the sleeving within the specified temperature range and secure ends to prevent fraying. When routing near sharp edges, add edge protection or grommets to extend service life.
