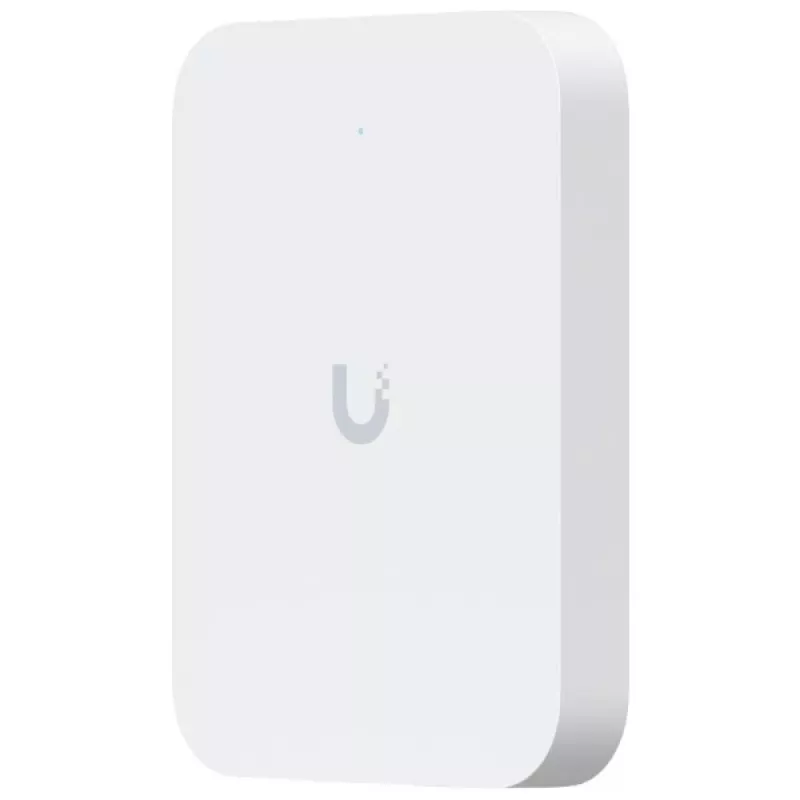

UBIQUITI UniFi U7 In-Wall Punto de acceso Wi-Fi 7 (UQ-U7-IW)

The UBIQUITI UniFi U7 In-Wall Access Point (UQ-U7-IW) delivers next-generation Wi-Fi 7 performance with tri-band 2x2 MIMO, providing aggregate throughput up to 9.3 Gbps. Designed for in-wall mounting, it seamlessly integrates into standard single-gang electrical boxes, making it ideal for hotels, offices, and multi-dwelling units. The built-in 2.5GbE uplink and three Gigabit downlink ports (one with PoE passthrough) enable wired connectivity for devices like IP phones or cameras, while PoE++ input simplifies installation.

Advantages

Experience blazing-fast Wi-Fi 7 speeds with low latency, supporting up to 300+ concurrent clients. The discreet in-wall design saves space and reduces clutter, while the integrated PoE passthrough powers downstream devices without extra cabling. Easy management via the UniFi Network Application provides centralized control and monitoring.

Suitable for

• Enterprise offices requiring high-density, high-performance wireless coverage
• Hospitality environments like hotels and dormitories needing discreet in-room access points
• Educational campuses and healthcare facilities with demanding throughput requirements
• Smart building deployments integrating wired and wireless IoT devices

Key specifications

• Wi-Fi Standard: Wi-Fi 7 (802.11be)
• Antenna Configuration: 2x2 MIMO on 2.4 GHz, 5 GHz, and 6 GHz
• Aggregate Throughput: 9.3 Gbps (688 Mbps + 2882 Mbps + 5764 Mbps)
• Uplink: 1x 2.5GbE RJ45 (PoE In)
• Downlink: 3x 1GbE RJ45 (1x PoE Out, 2x Data Only)
• PoE Input: PoE++ (802.3bt)
• PoE Output: PoE+ (802.3at) on one port
• Max Power Consumption: 21W (AP only), 45W (with PoE passthrough)
• Mounting: In-wall (single-gang electrical box)
• Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
• Management: UniFi Network Application (Web/Mobile)
• Operating Temperature: -30°C to 60°C
• Processor: Dual-core ARM Cortex-A53
• Memory: 1 GB DDR4

Recommendations

For optimal performance, use a PoE++ switch such as the UniFi Switch Pro series. Pair with UniFi 7-compatible clients to fully leverage Wi-Fi 7 features. The U7 In-Wall is an excellent choice for high-density environments requiring both wired and wireless connectivity in a compact form factor.
