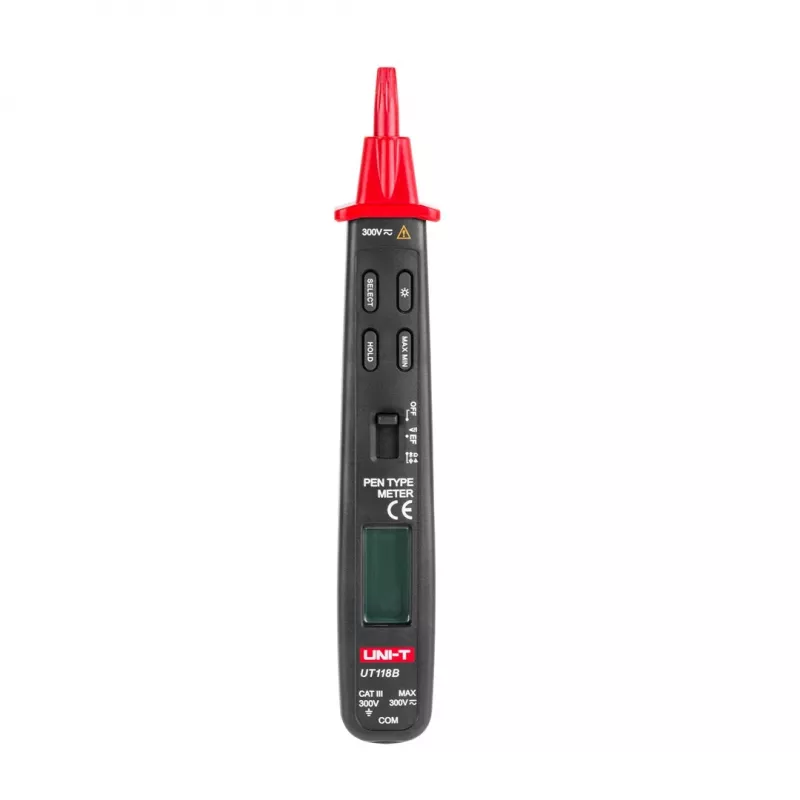

UNI-T UT118B Multímetro universal 6000 Counts True RMS multímetro digital

With a 6000-count display and True RMS capability, the UNI-T UT118B delivers precise measurements for AC voltage, DC voltage, resistance, capacitance, and frequency, making it an essential tool for electricians and electronics enthusiasts.

Overview

The UNI-T UT118B Universal Meter Tester is a compact, auto-ranging digital multimeter designed for everyday electrical troubleshooting. It measures AC/DC voltage up to 600V, resistance up to 60MΩ, capacitance up to 60mF, and frequency up to 1MHz. The built-in non-contact voltage (NCV) detector and flashlight add convenience for working in tight or dimly lit spaces.

What stands out

• 6000-count display with backlight for clear readings in any environment
• True RMS ensures accurate measurements of non-sinusoidal waveforms
• Auto-ranging with data hold and continuity buzzer for efficient testing
• CAT III 600V safety rating for professional use
• Powered by two AAA batteries (included)

Technical details

• DC Voltage: 600mV / 6V / 60V / 600V ±(0.7%+3)
• AC Voltage: 6V / 60V / 600V ±(1.0%+3)
• Resistance: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ ±(1.0%+2)
• Capacitance: 6nF / 60nF / 600nF / 6µF / 60µF / 600µF / 6mF / 60mF ±(4.0%+5)
• Frequency: 10Hz ~ 1MHz
• Diode test and continuity buzzer
• Non-contact voltage detection
• Auto range, data hold, backlight, flashlight
• Safety: CAT III 600V
• Power: 2 x 1.5V AAA batteries

Our verdict

The UNI-T UT118B combines accuracy, safety, and portability in one rugged package. Whether you're diagnosing household wiring or repairing electronics, this multimeter delivers reliable performance at an excellent value.
