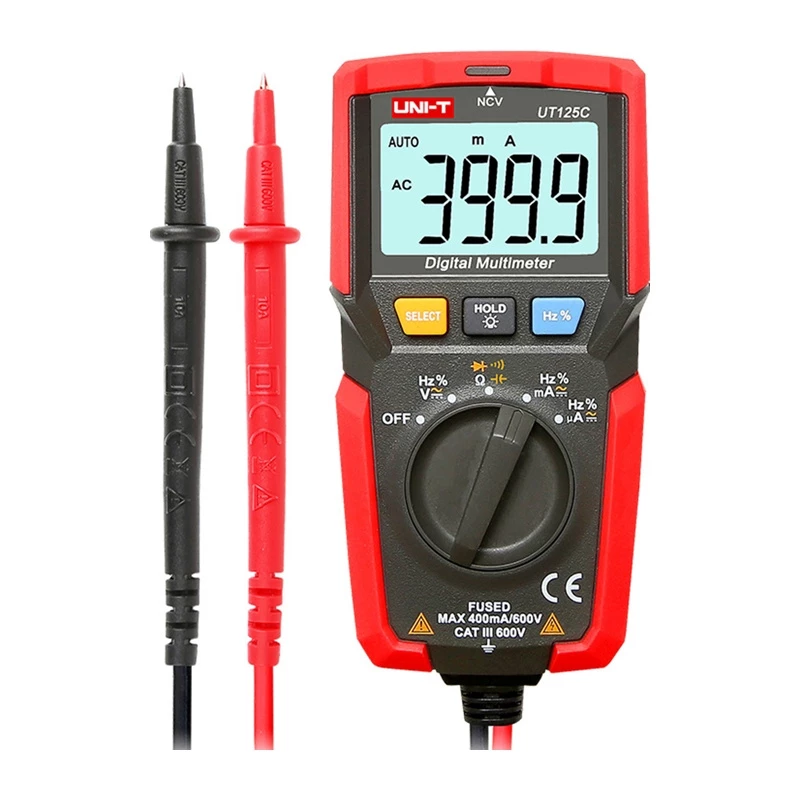

Uni-T UT125C Multímetro digital de bolsillo

The Uni-T UT125C is a pocket-sized digital multimeter that combines compact dimensions, an ergonomic design, and ease of everyday use. The device features a display with a maximum reading of 4000 and is designed for use with low currents below 0.4 A. With the ability to measure voltage and current (AC/DC up to 600 V / 400 mA) and CAT III 600V certification, it is ideal for electronics repair.

Advantages

Essential measurements in a handy form: the UT125C allows for the measurement of voltage, current, resistance, capacitance, frequency, and duty cycle, and also offers diode and continuity testing. An additional advantage is the non-contact voltage detection (NCV) function, which makes it convenient to quickly check installations. This set of features makes the meter well-suited for workshop and hobby applications, as well as for the daily diagnosis of simpler electronic circuits. The small housing, measuring 112 × 58 × 35 mm and weighing 180 g, makes the multimeter easy to carry and comfortable to use. The device is equipped with a Data Hold function, a low battery indicator, and an auto-off feature, which facilitates daily work and helps save energy. An additional advantage is its resistance to drops from a height of 1 meter, which increases its practicality when used in various conditions.

Suitable for

• Electronics repair and troubleshooting
• Workshop and hobby applications
• Daily diagnosis of simpler electronic circuits
• Quick voltage presence checks with NCV

Key specifications

• True RMS measurement
• Display count: 4000
• DC voltage range: 400mV / 4V / 40V / 400V / 600V
• AC voltage range: 4V / 40V / 400V / 600V
• DC current range: 400µA / 4000µA / 40mA / 400mA
• AC current range: 400µA / 4000µA / 40mA / 400mA
• Resistance range: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ
• Capacitance range: 4nF / 40nF / 400nF / 4µF / 40µF / 100µF
• Frequency range: 10Hz ~ 10MHz
• Duty cycle: 0.1% ~ 99.9%
• Diode test and continuity buzzer
• Auto ranging, Data Hold, Relative mode
• Auto power off
• Safety rating: CAT III 600V
• Power: 1 x 3V CR2032 battery
• Dimensions: 112 x 58 x 35 mm
• Weight: 180 g

Recommendations

For technicians and hobbyists seeking a reliable, portable multimeter for everyday electrical measurements, the Uni-T UT125C offers a comprehensive feature set in a compact form. Its CAT III 600V safety rating and NCV function make it a practical choice for on-the-go diagnostics.
