UNI-T UT181A Multímetro digital True RMS 60000 cuentas TFT LCD registrador de datos

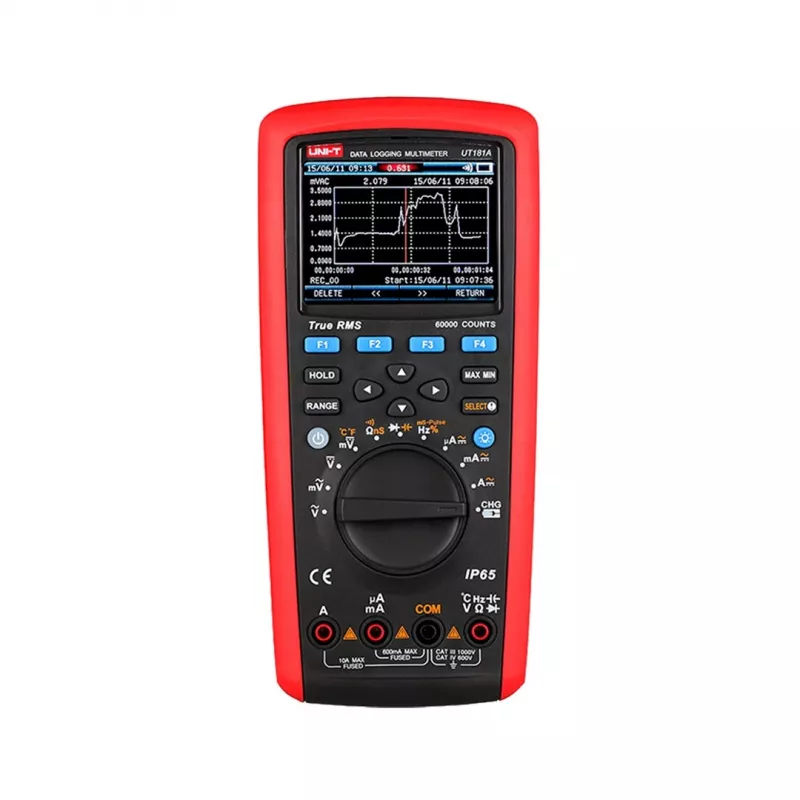

The UNI-T UT181A is a high-performance True RMS digital multimeter designed for professional electricians and engineers. With a 60000-count display and a 3.5-inch TFT LCD screen, it provides precise measurements and clear data visualization. This multimeter supports a wide range of measurements including DC/AC voltage, DC/AC current, resistance, capacitance, frequency, and temperature. It features data logging capability of up to 20000 points, USB interface for data transfer, and a rechargeable Li-ion battery for extended use. Safety rated CAT III 1000V and CAT IV 600V, the UT181A is built for demanding environments.

Advantages

The UT181A offers exceptional accuracy and versatility with its 60000-count resolution and True RMS measurement. The large TFT LCD display enhances readability, while the data logging function allows for long-term monitoring and analysis. Its low-pass filter and trend capture features are ideal for troubleshooting variable frequency drives and capturing signal trends. The rechargeable battery ensures cost savings and convenience.

Suitable for

• Industrial maintenance and troubleshooting
• Electrical installation and testing
• Laboratory and research applications
• HVAC and automotive diagnostics

Key specifications

• Display Count: 60000
• True RMS: Yes
• AC Bandwidth: 100 kHz
• DC Voltage Range: 60mV to 1000V
• AC Voltage Range: 60mV to 1000V
• DC Current Range: 600µA to 10A
• AC Current Range: 600µA to 10A
• Resistance Range: 600Ω to 60MΩ
• Capacitance Range: 6nF to 60mF
• Frequency Range: 60Hz to 60MHz
• Temperature Measurement: -40°C to 1000°C
• Data Logging Capacity: 20000 points
• Display Type: 3.5-inch TFT LCD
• Interface: USB
• Safety Rating: CAT III 1000V, CAT IV 600V
• Power Source: Rechargeable Li-ion Battery (7.4V 2200mAh)
• Low Pass Filter (LPF): Yes
• Trend Capture: Yes
• Diode Test: Yes
• Continuity Test: Yes

Recommendations

For professionals seeking a reliable and feature-rich multimeter, the UNI-T UT181A delivers outstanding performance. Its comprehensive measurement capabilities and robust safety ratings make it a top choice for demanding applications.
