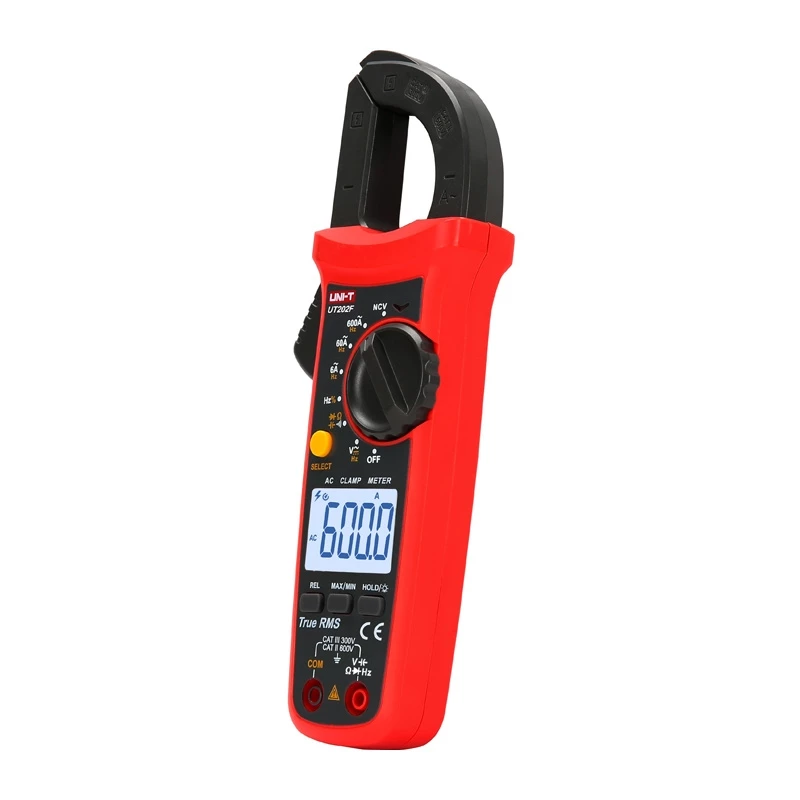

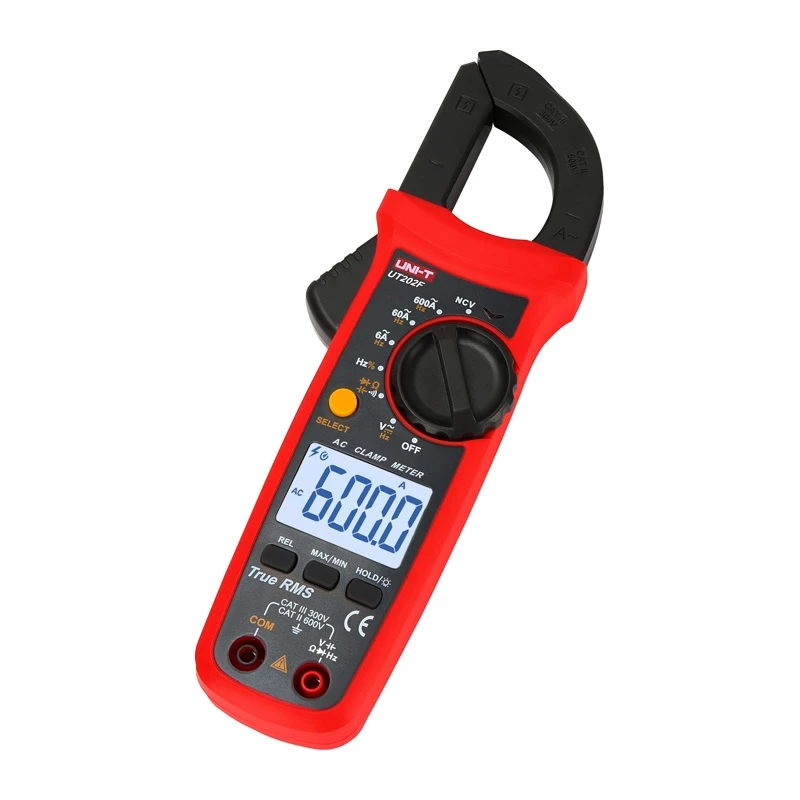

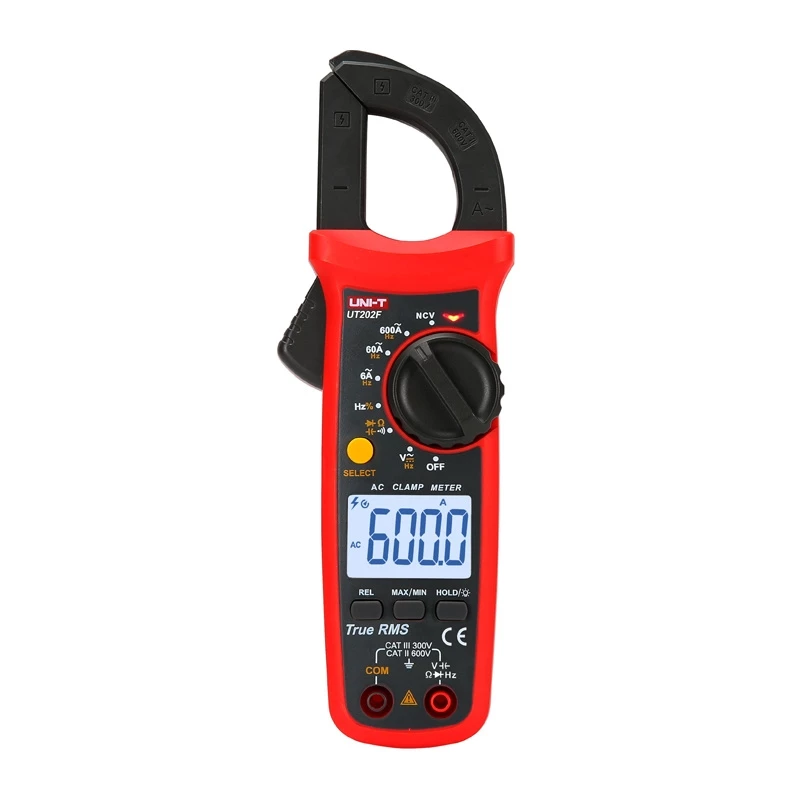

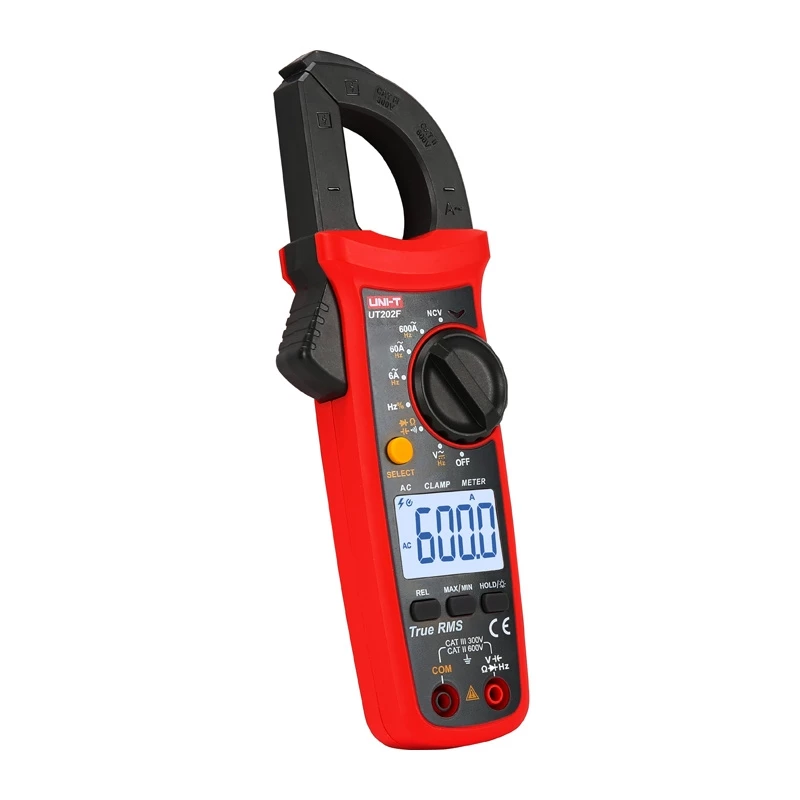

Uni-T UT202F multímetro digital de pinza 600A AC/DC True RMS NCV

The Uni-T UT202F is a versatile digital clamp meter designed for everyday electrical measurements. It enables non-invasive AC current measurement up to 600A and provides comprehensive functions including AC/DC voltage, resistance, capacitance, frequency, and temperature. With True RMS, LPF filter, and NCV detection, it is ideal for installation inspection, circuit diagnostics, and field service.

Advantages

Non-contact measurement via clamp jaw (28mm opening) allows safe current measurement without breaking the circuit. True RMS ensures accurate readings on non-sinusoidal waveforms. The large backlit LCD with 4000 counts and auto-ranging simplifies operation. Safety rated CAT II 600V / CAT III 300V ensures reliable use in various environments.

Suitable for

• Electricians and technicians for installation and maintenance
• Industrial and residential electrical diagnostics
• HVAC and appliance repair
• Educational and hobbyist use

Key specifications

• AC Current: 0.06~600A ±(2%+10)
• AC Voltage: 600V ±(0.8%+5)
• DC Voltage: 600V ±(0.5%+2)
• Resistance: 400Ω~40MΩ
• Capacitance: 4nF~4mF
• Frequency: 10Hz~10MHz
• Temperature: -40°C~1000°C
• Display Count: 4000
• True RMS: Yes (AC Voltage/Current)
• NCV: Yes
• Data Hold: Yes
• Backlight: Yes
• Auto Range: Yes
• Power: 2 x 1.5V AAA batteries
• Safety: CAT II 600V, CAT III 300V

Recommendations

For accurate and safe electrical measurements, the Uni-T UT202F offers a reliable combination of features at an affordable price. Its clamp design and comprehensive measurement capabilities make it a valuable tool for professionals and DIY enthusiasts alike.
